2

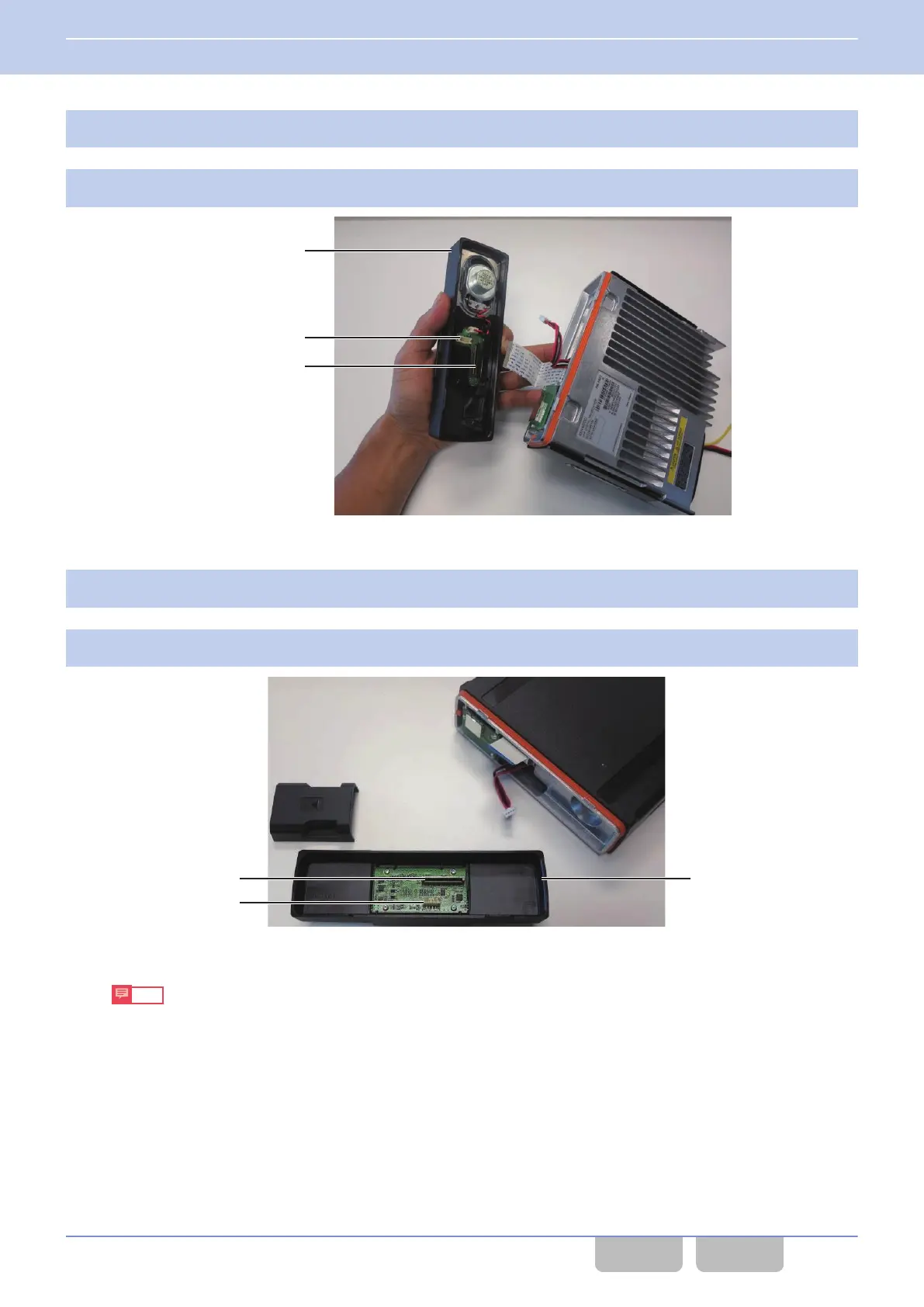

Remove the flat cable from the display unit connector (CN6) of KCH-19M.
3
Remove the cable from the display unit connector (CN2) of KCH-19M.
Figure 17-2 Removal of the Cables
4
Plug the cable into the connector (CN2) of KRK-15BM.
5
Plug the flat cable into the connector (CN1) of KRK-15BM.
Figure 17-3 Connection of the Cables
Note
Be careful when plugging the flat cable into CN1.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.1 Initial Configuration for Multi RF Deck/ Multi Control Head
Common FUNC (K, F)/Ver 2.20 336
