4
Turn ON all RF Decks and Control Heads.
If either Control Head is turned ON, all RF Decks and Control Heads are turned ON.
2
Control Head
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B

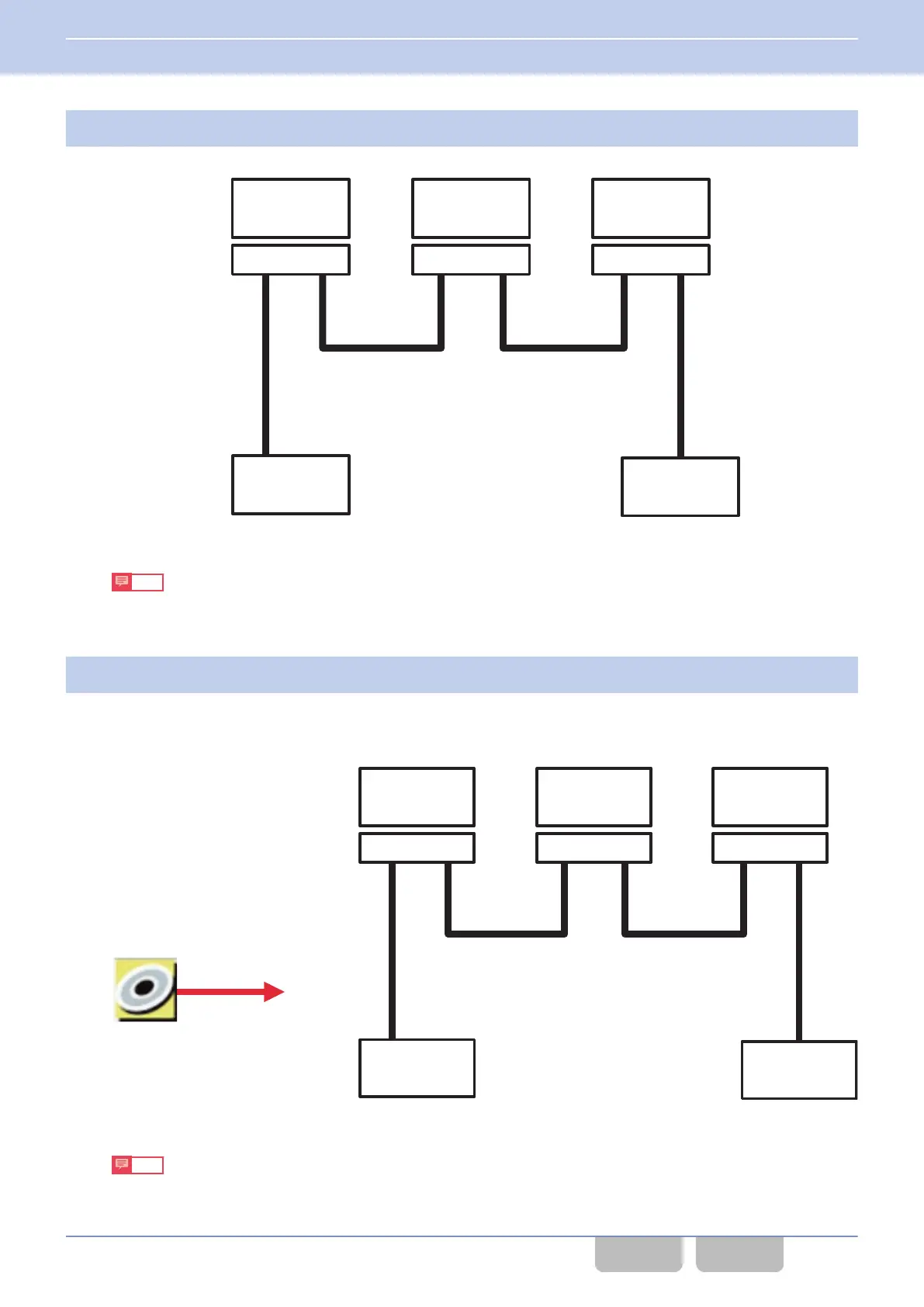

Figure 17-21 Triple RF Deck/ Dual Control Head (Power ON)
Note
0
If “FIRM MISMATCH” is displayed on the screen of the Control Head, proceed to step 5.
0
If “FPU MISMATCH” is displayed on the screen of the Control Head, proceed to step 6.
5
Write the firmware.
The firmware is written after the programming cable is connected to Control Head 1.
To activate Multi RF Deck/ Multi Control Head, the firmware version 1.62.00 or later needs to be written.
The firmware version of a Control Head can be confirmed in Radio Mode Selection.
Control Head
2
RF Deck 3
KRK-15B
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B
KFL
Figure 17-22 Triple RF Deck/ Dual Control Head (Firmware Setting)
Note
If “FPU MISMATCH” is displayed on the screen of the Control Head, proceed to step 6.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.2 Adding an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 346
