Kenwood NX-5200K3 Common Function Reference

4
Change the DIP switch configuration.
Change the DIP switch to the Dual RF Deck/ Dual Control Head configuration.
Control Head
2
RF Deck 2
KRK-15B
Control Head
1
RF Deck 1
KRK-15B

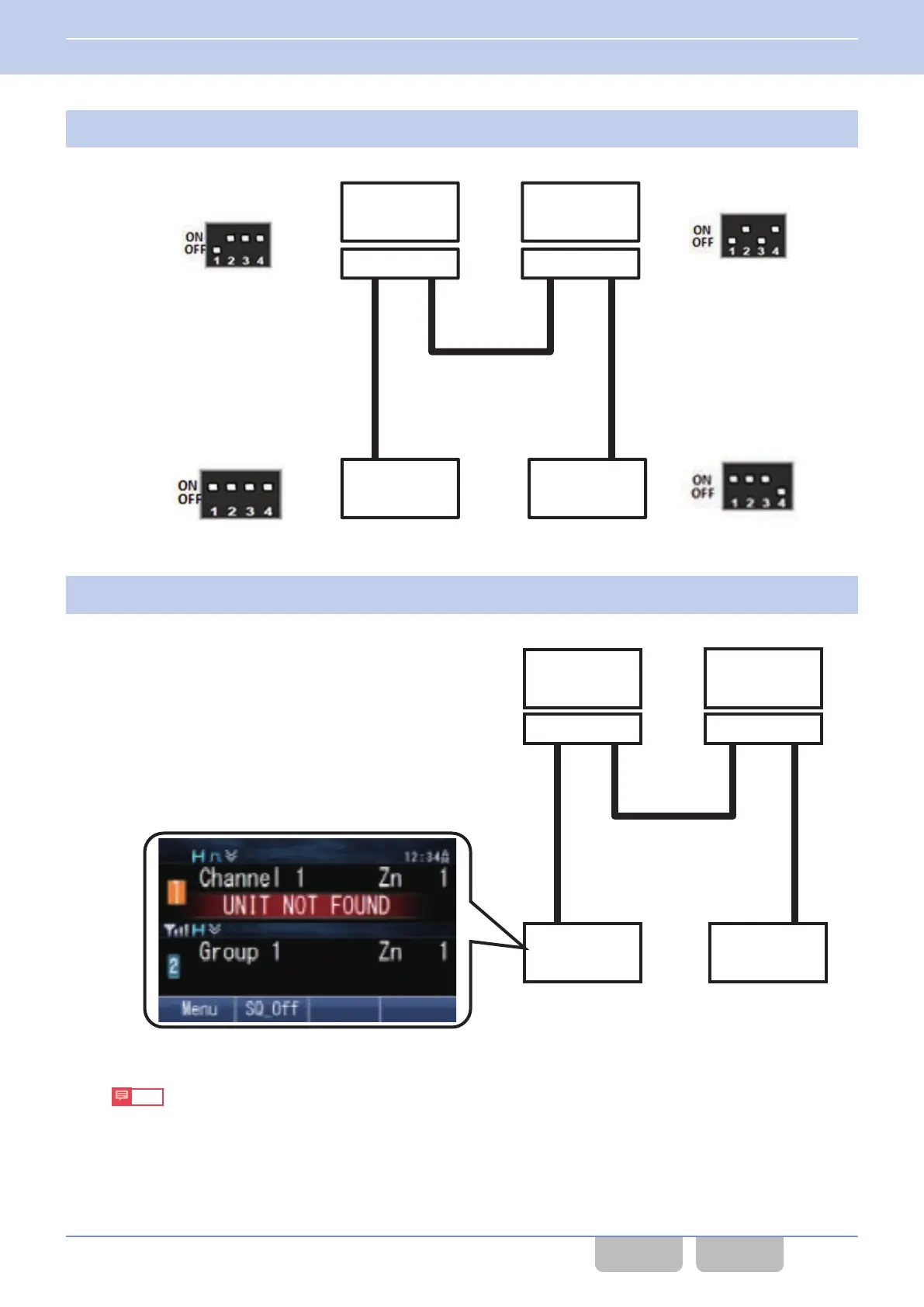

Figure 17-53 DIP Switch Configuration Dual RF Deck/ Dual Control Head
5
Turn ON all RF Decks and Control Heads.
If either Control Head is turned ON, all RF Decks and Control Heads are turned ON.
RF Deck 2
KRK-15B
1
Control Head
RF Deck 1
KRK-15B
Power ON
2
Control Head
Power ON
Figure 17-54 Dual RF Deck/ Dual Control Head (Power ON)
Note
“Unit Not Found” appears on the screen of Control Head 1 by the removal of the RF Deck.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.4 Removing an RF Deck/ Control Head
Common FUNC (K, F)/Ver 2.20 365
CONTENTS INDEX
