Kenwood NX-5200K3 Common Function Reference

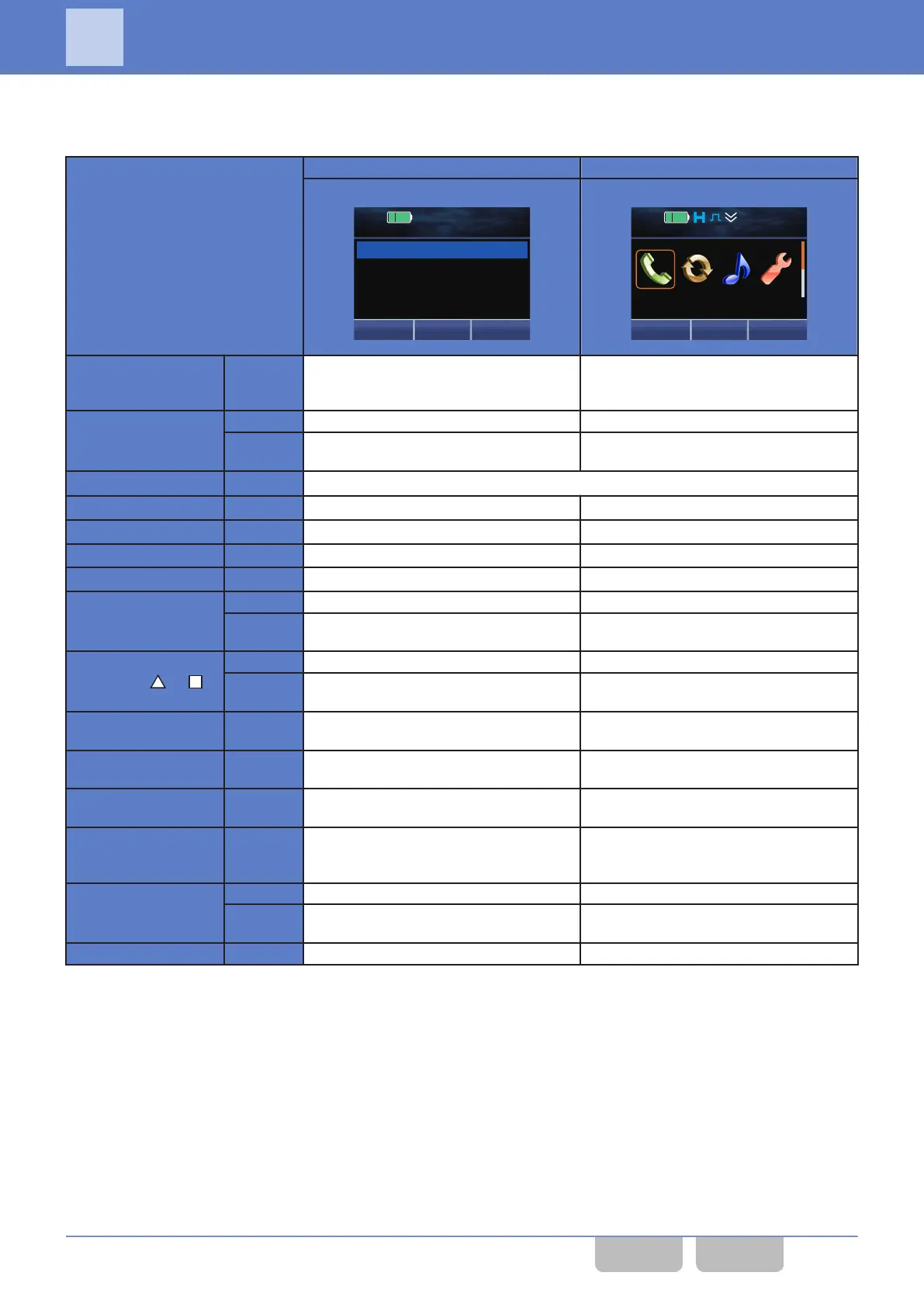

Key operations for selecting a list or entering characters are described for each mode in this section. Refer to “Operating
the Transceiver in Each Mode (Common Operation)” for operation methods.
Key
Transceiver Password Mode Menu Mode
12 : 34
A
M
Input Password
Password
Menu Icon Size: Large
12 : 34
A
M
Call 01
Next
Menu ([Q])
Press
Confirms the code (while the code blinks).
Checks the code (after the code is
confirmed).
Migrates to the Function List.
Back ([O])
Press Deletes a code. -
Hold
Down
Deletes all codes. -
Function ([W])
Press -
Home ([T])
Press Restores the “Input Password” display. Aborts the current mode.
Side 1
*1
or [+]
*2
Press - The configured function functions.
Side 2
*1
or [-]
*2
Press - The configured function functions.
Side 3
*1
Press - The configured function functions.
[G]/ [H]
Press Selects a code one at a time. Moves the cursor up or down.
Hold
Down
Selects codes continuously.
Moves the cursor up or down
continuously.
[E]/
[F] or [
]/ [ ]
*2
Press - Moves the cursor to the left or right.
Hold
Down
Moves the cursor to the left or right
continuously.
Selector
*3
- -
The configured function functions after
aborting the current mode.
Lever Switch
*4
- -
The configured function functions after
aborting the current mode.
[0] to [9] Press Enters a code.
Directly selects an option registered in the
list.
[*] Press
Confirms the code (while the code blinks).
Checks the code (after the code is
confirmed).
Migrates to the Function List.
[#]
Press Deletes a code. -
Hold
Down
Deletes all codes. -
PTT Switch Press - Transmits after aborting the current mode.
*1
Portable/ KCH-21R (Handheld Control Head) only
*2
KCH-20R (Featured Panel) only
*3
Portable/ KCH-20R (Featured Panel) only
*4
Portable only
20 KEY OPERATIONS FOR EACH MODE
20
KEY OPERATIONS FOR EACH MODE
Common FUNC (K, F)/Ver 2.20 424
