170 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - 460V 3-PHASE MMC SMART DRIVE
7.2.1.2 AC Power Connector
7.2.1.3 Motor Connector

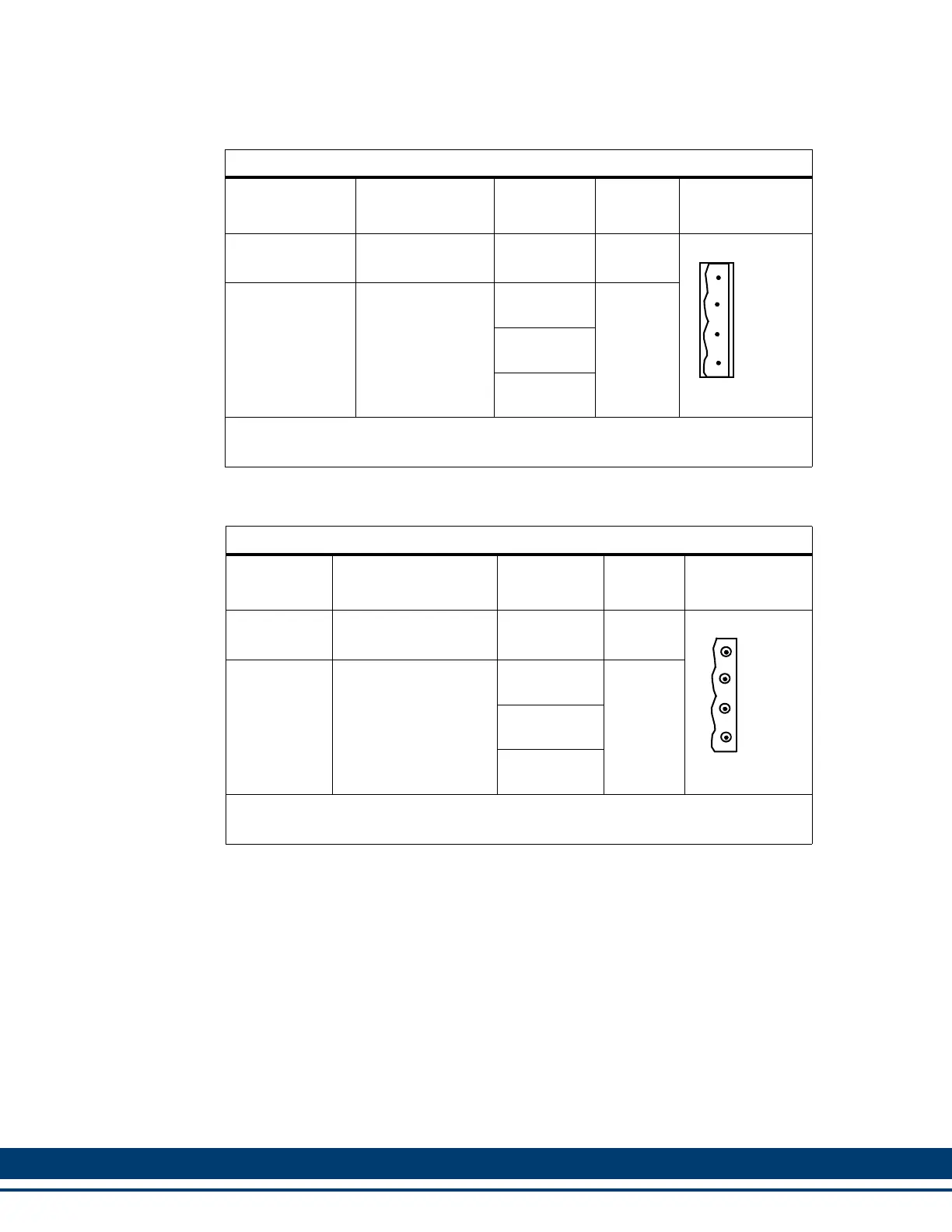

Table 7-2: 460V Size 1 AC Power Connector
Signal Type
Signal
Description
Connector
Label
In/Out Connector
Protective
Ground
Protective Earth
Ground
PE Out
Power
3 phase input
power AC source
must be center
grounded Y sys-
tem.
1U1
In1V1
1W1
Note: A 4-pin screw-terminal mating connector is included with the drive. Additional
connectors (P/N M.1302.7158) are available from Kollmorgen.
Table 7-3: 460V Size 1 Motor Connector
Signal
Type Signal Description
Connector
Label In/Out Connector
Protective
Ground
Protective Earth
Ground
PE Out
Power
Drive output
power to motor.
1U2
Out1V2
1W2
Note: A 4-pin screw-terminal mating connector is included with the drive. Additional
connectors (P/N M.1302.7159) are available from Kollmorgen.
PE
1U1
1V1
1W1
PE
1U2
1V2
1W2
