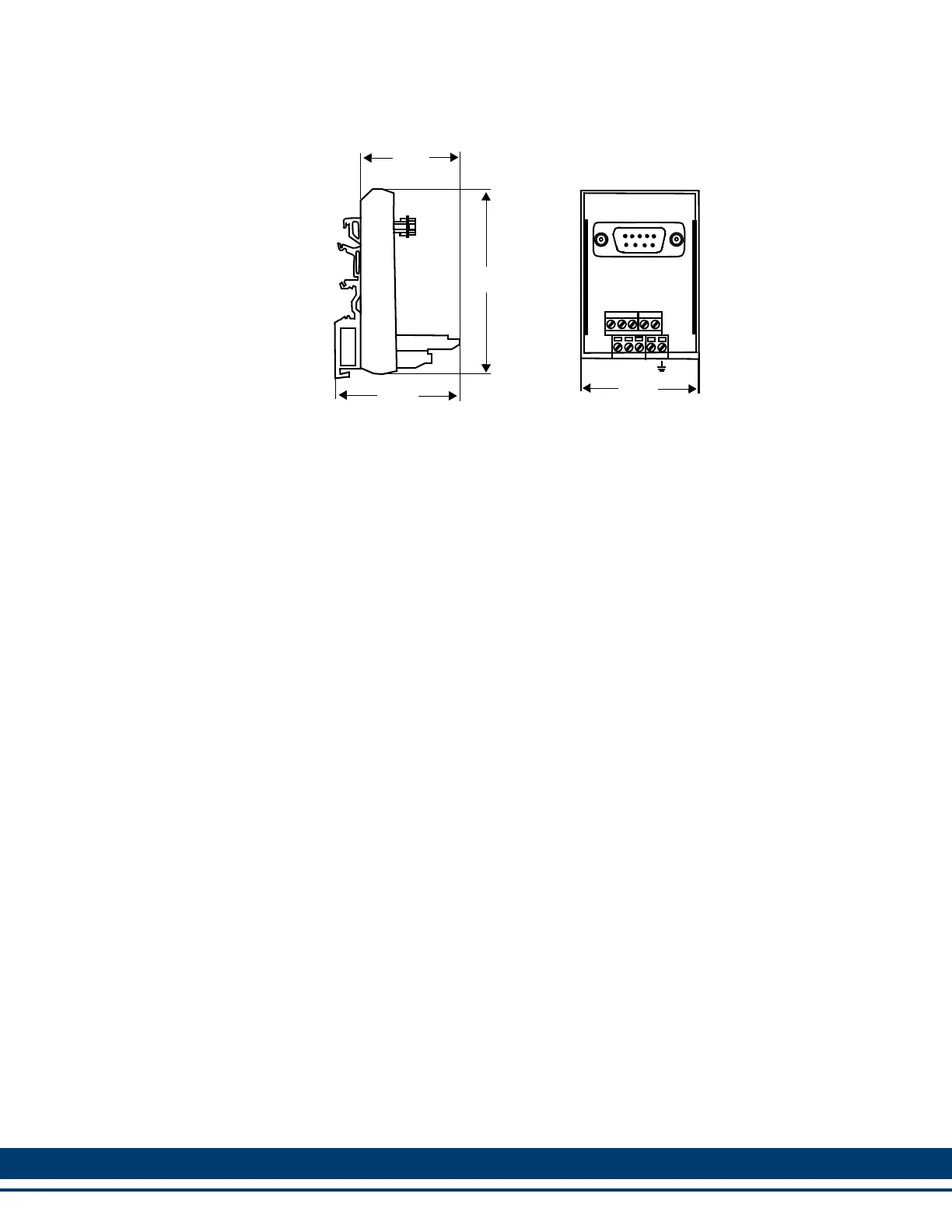

Figure 12-3: Block I/O Breakout Box Dimensions
12.5.3 User Port
The 15-pin HD male D-sub User Port connector (labeled “C3” on the front of the
Control) provides RS232 and RS485 serial communication between a serial device
and the Control. The User Port provides RS232/RS485 communications at Baud rates
to 115.2 K with Multidrop capability.
• Pin descriptions are provided in Table 12-8
• Pin assignments are provided in Table 12-9
• The available Flying Lead cable is described in Table 12-10.
• The available RS-232 Exter HMI cable is described in Table 12-11.
• The available RS-485 Exter HMI cable is described in Table 12-12.
• Available Breakout Boxes and Cables are described in Table 12-13.
• Breakout Box dimensions are shown in Figure 12-4
1.750”
2.250”
3.000”
1
6
1.750”
5
9
