216 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - S200-DLS DRIVE
8.1.4 Node Address Rotary Switches
Two rotary switches are used to set the drive address. Rotate the switch to the
desired address.
Addresses can be set to any number from 1 through 64. The top switch represents
values of base ten. The bottom switch represents values of base 1.
As an example, rotating the top switch (S3) to a setting of 2 equals the value of 20 (2 x
10). Rotating the bottom switch (S4) to a setting of 5 equals the value of 5. The actual
address setting is 25 (20 + 5).

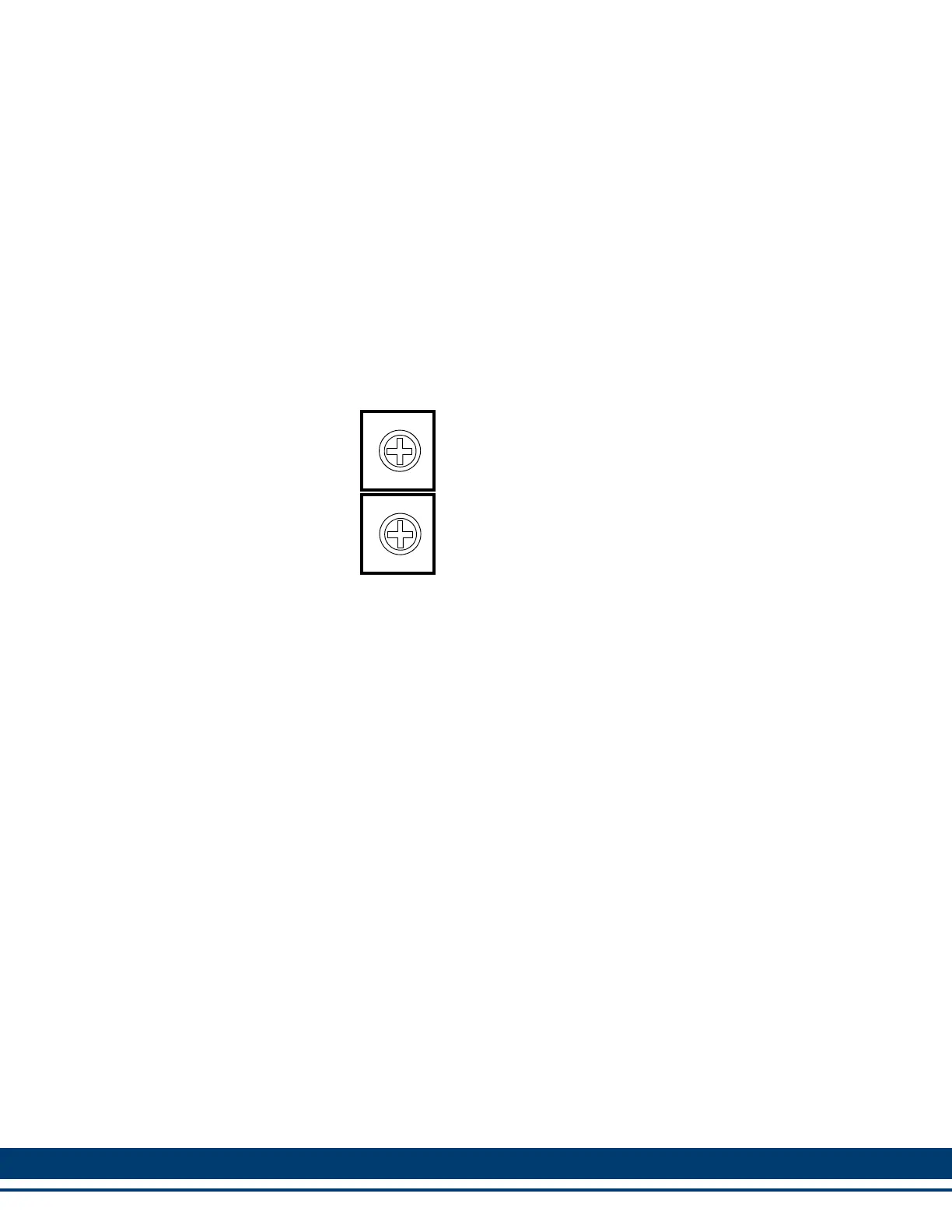

Figure 8-2: Node Address Switches
S4 (10s)
S3 (1s)
0
5
1
4
3
2
6
7
8
9
0
5
1
4
3
2
6
7
8
9
