204 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - 460V 3-PHASE MMC SMART DRIVE
7.5 Dimensions for the 460V Smart Drives

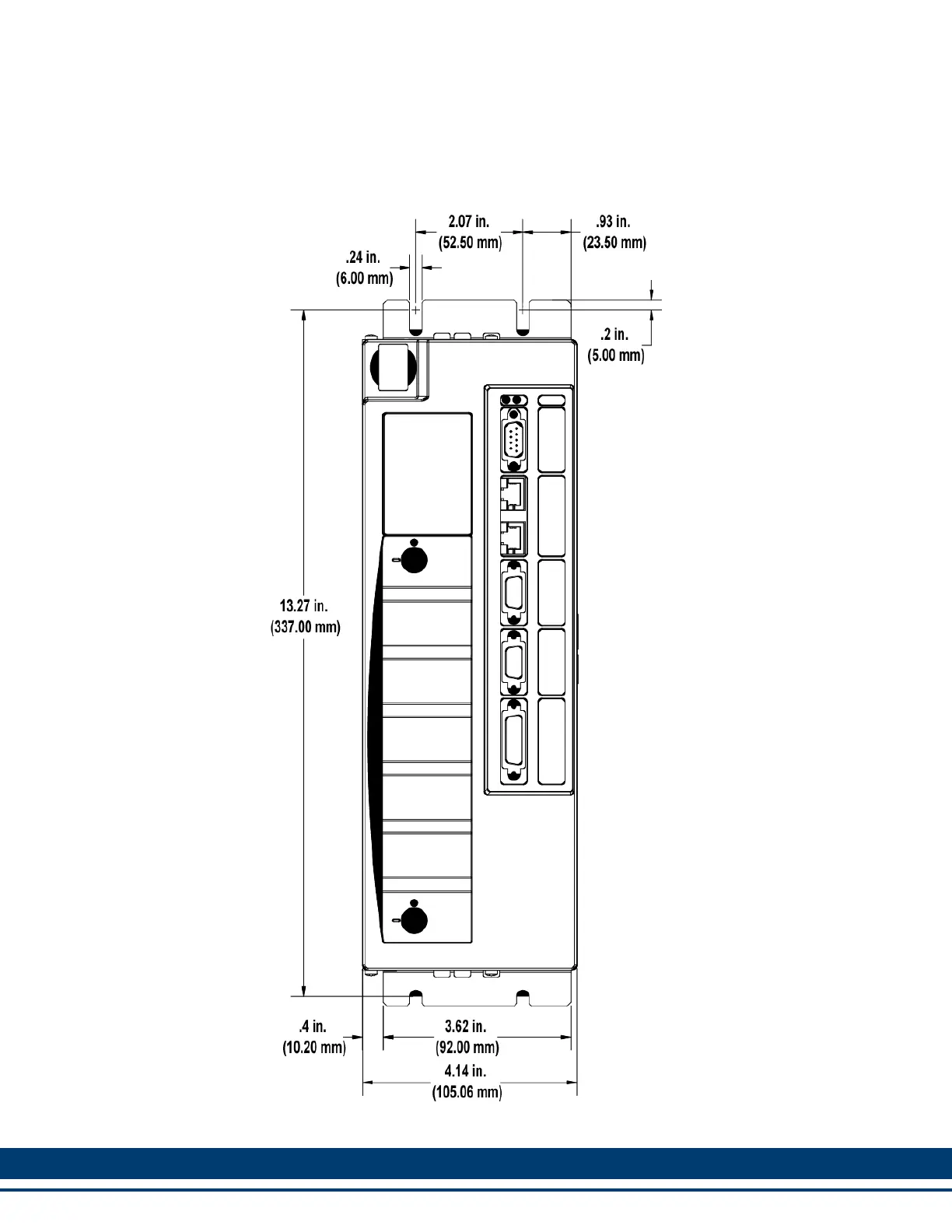

Figure 7-9: Size 1 460V Smart Drive - Front View
