Kollmorgen MMC Smart Drive

Kollmorgen - December 2011 243
MMC Smart Drive Hardware Manual - MOTOR CABLES & CONNECTORS
9.6 LSM/MSM Motor Fan Cables
This section describes flying-lead wiring assemblies that can be used connect the
Motor Fan signals from the drive to an LSM/MSM motor. Each assembly consists of
the indicated length of 16AWG cable pre-wired to the LSM/MSM Motor fan connector.
The wiring Diagram for these cables can be found in Table 9-7.

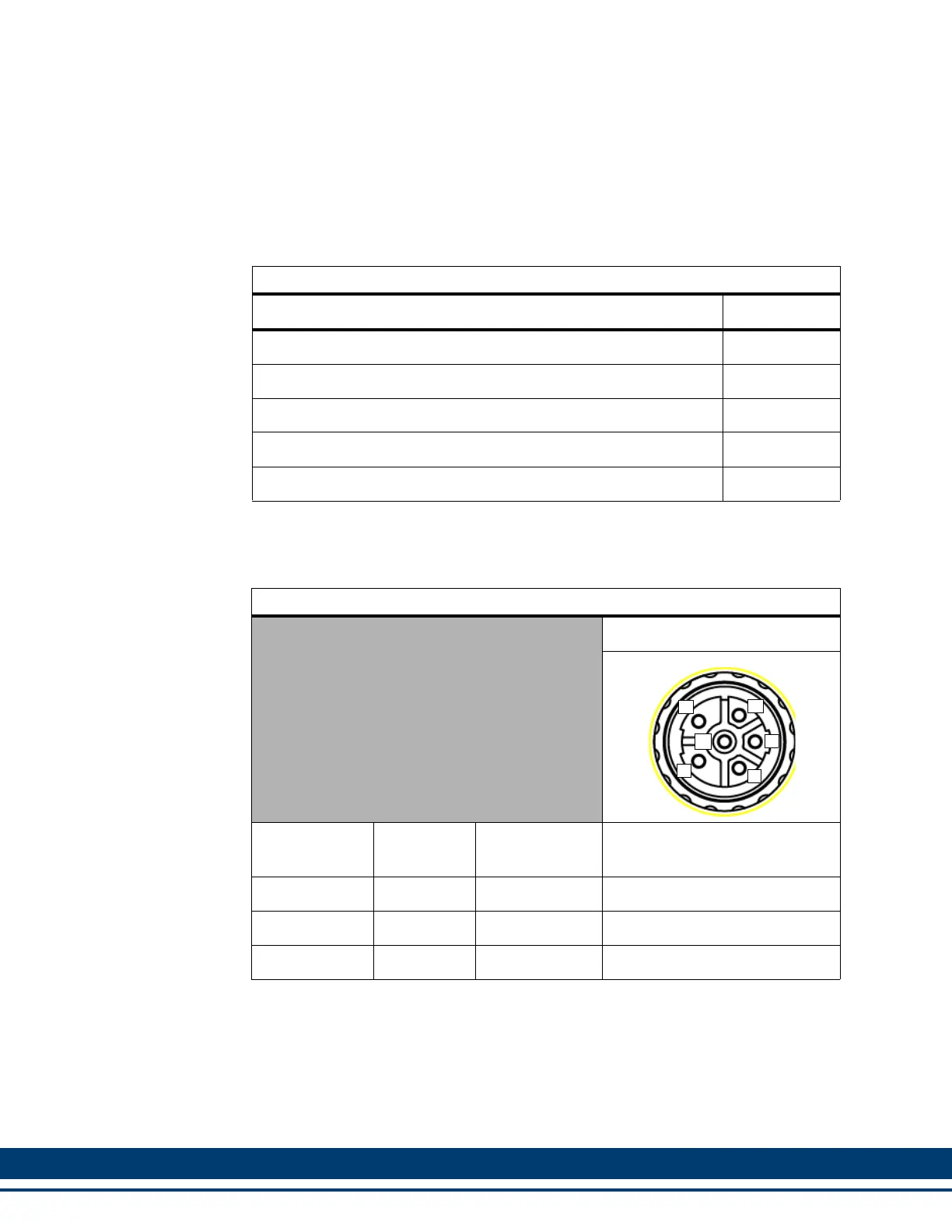

Table 9-6: LSM/MSM Motor Fan Cables
Cable Length Part Number
1 M (3.3 ft) M.1302.6310
3 M (9.8 ft) M.1302.6311
6 M (19.7 ft) M.1302.6312
9 M (29.5 ft) M.1302.6313
15 M (49.2 ft) M.1302.6314
Table 9-7: LSM/MSM Fan Motor Flying Lead Cable
Connector Pinout
Wire Color
Wire
Number
Signal
Type
Pin
Brown U Out 1
Black N Out 2
Green/Yellow PE Ground 3
1
2
4
3
5
6
