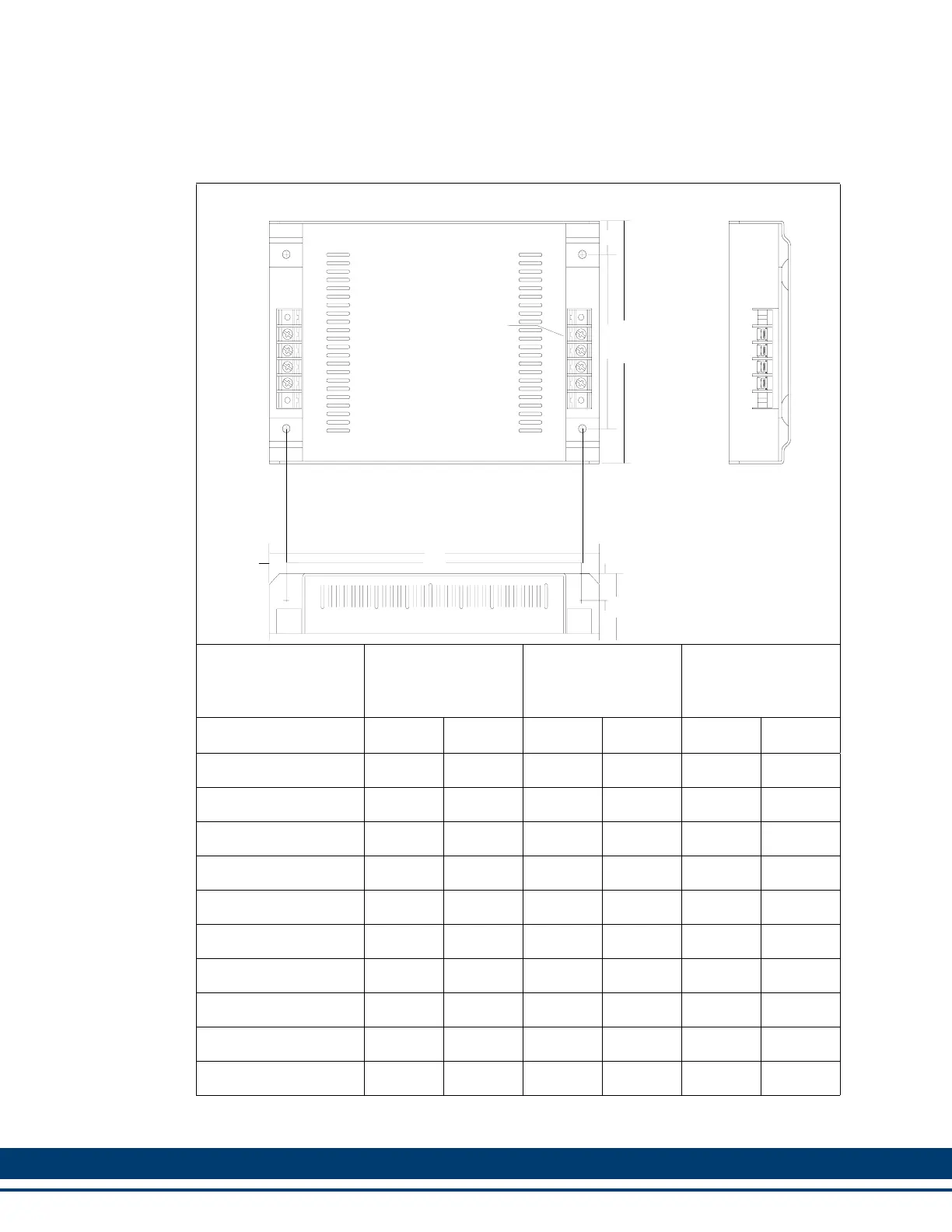

4.6.2 Dimensions for 230V Line Filters
SINGLE PHASE
6A
M.1015.6922
SINGLE PHASE
10A
M.1015.6917
SINGLE PHASE
23A
M.1015.6918
MEASUREMENT mm in mm in mm in
A 170 6.7 214 8.4 214 8.4
A1 152 6.0 192 7.6 192 7.6
A2 9 0.4 11 0.4 11 0.4
B 92 3.6 145 5.7 204 8.0
B1 55 2.2 104 4.1 164 6.6
B2 18 0.7 20 0.8 20 0.8
C 25 1.0 40 1.6 47 1.8
C1 10 0.4 16 0.6 19 0.8
NOTE: Spring c lips rep la c e
Terminal screws on 6 Amp
Filter (P/N 401-30222-00)
B
B1
B2
A
A1
C
C1
A2
