MMC Smart Drive Hardware Manual - 460V 3-PHASE MMC SMART DRIVE
7.2.2.2 Motor Connector

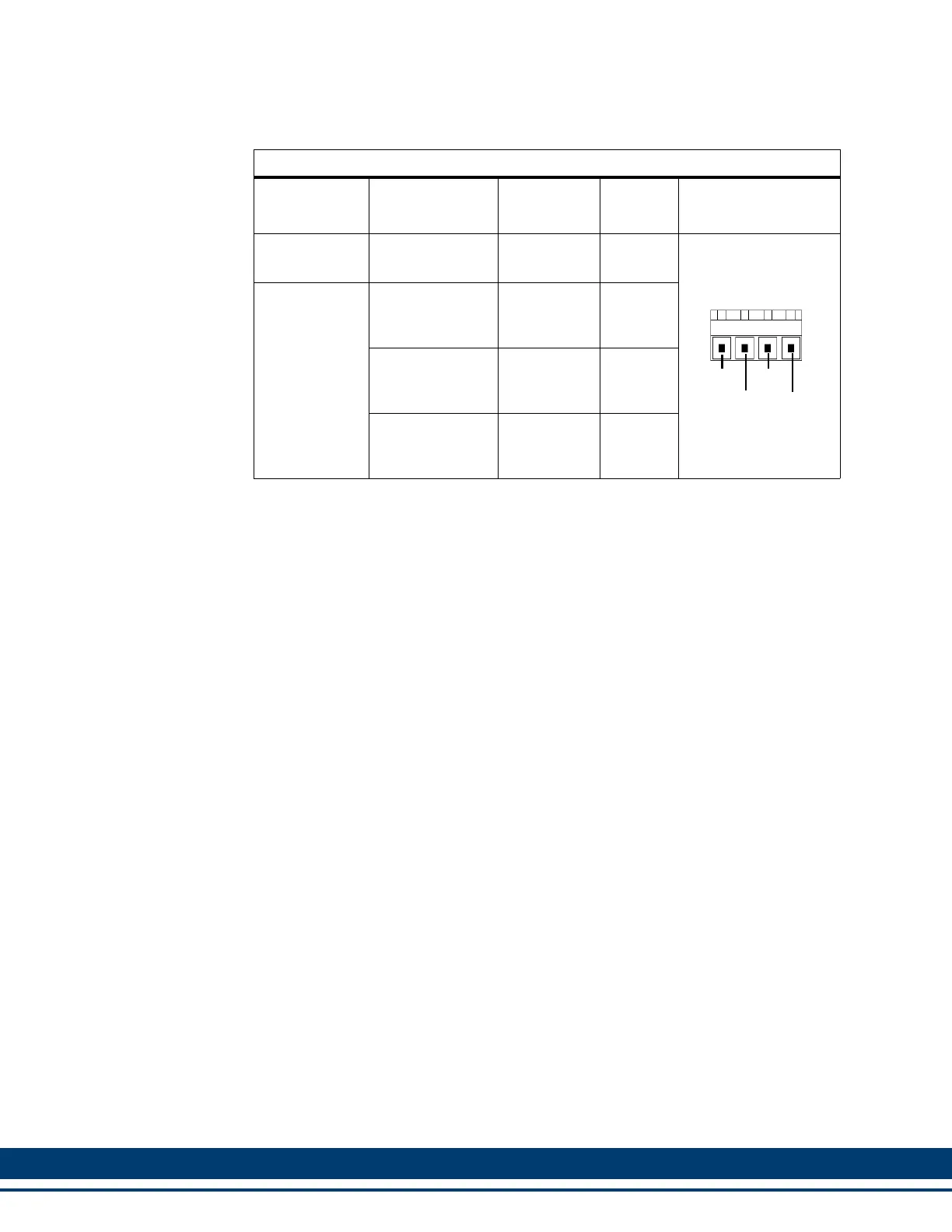

Table 7-7: 460V Size 2 Motor Connector
Signal Type
Signal
Description
Connector
Label
In/Out Connector
Ground
Protective
Ground (Earth)
PE Out
Motor
Power U-phase
from the drive to
the motor
1U2 Out
Power V-phase
from the drive to
the motor
1V2 Out
Power W-phase
from the drive to
the motor
1W2 Out
PE
1U2
1V2
1W2
