MMC Smart Drive Hardware Manual - MOTOR CABLES & CONNECTORS
9.3 AKM/DDR Motor Power Cables
This section describes flying-lead wiring assemblies that can be used connect the
Motor power signals from the drive to an AKM/DDR motor. Each assembly consists of
the proper motor connector, and the indicated length and gauge of Hi-Flex cable.

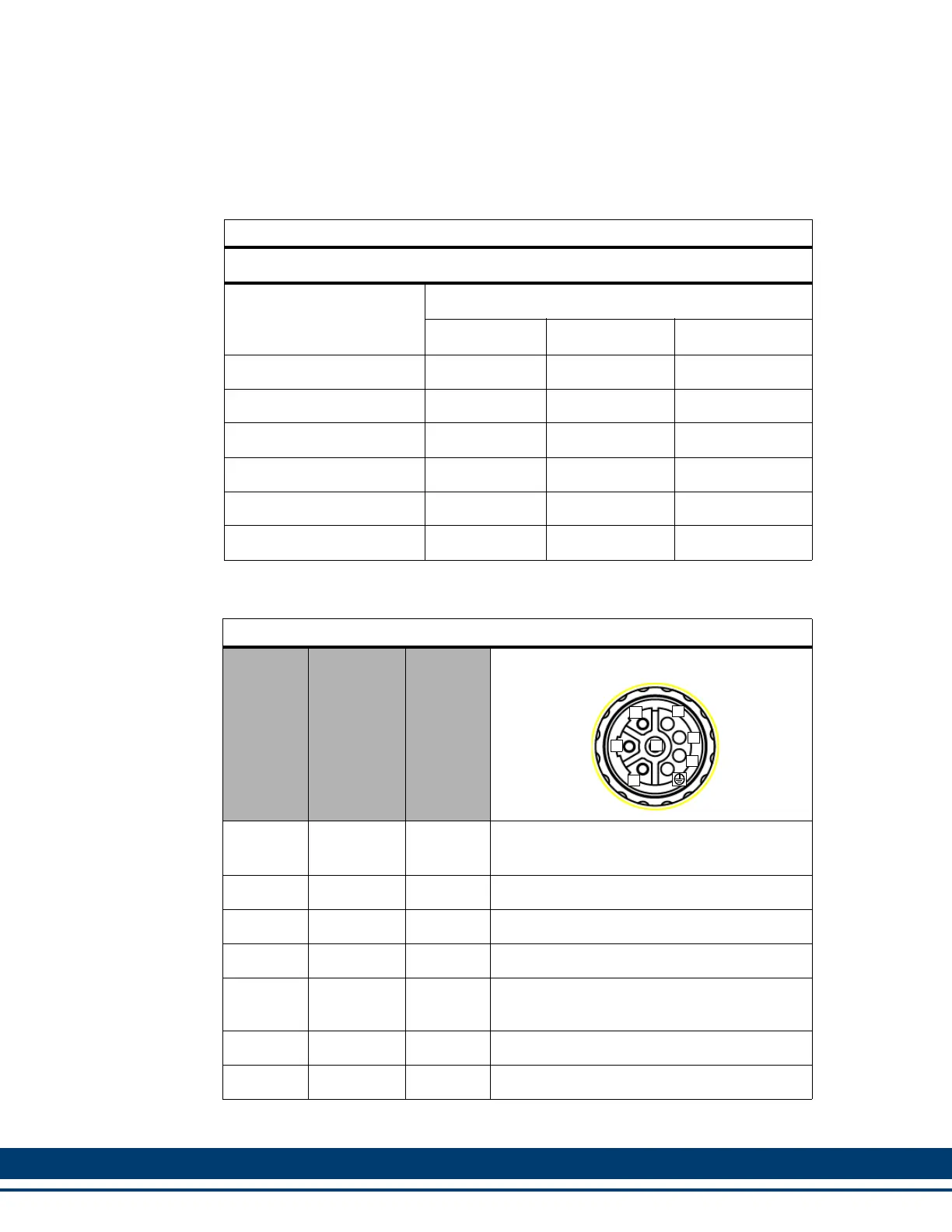

Table 9-1: AKM/DDR Motor Power Cables
For Connection Diagram, Table 9-2 on page 238
Length
Part Number
12AWG 14AWG 16AWG
1 M (3.3 ft) M.1302.8759 M.1302.8585 M.1302.8580
3 M (9.8 ft) M.1302.8760 M.1302.8549 M.1302.8545
6 M (19.7 ft) M.1302.8761 M.1302.8586 M.1302.8581
9 M (29.5 ft) M.1302.8762 M.1302.8554 M.1302.8553
15 M (49.2 ft) M.1302.8763 M.1302.8588 M.1302.8583
30 M (98.4 ft) M.1302.8764 M.1302.8589 M.1302.8584
Table 9-2: AKM/DDR Motor Power Cable Connections
Connector Pinout
Wire
Color
Wire
Number
Signal
Type
Size 1 Power Connector
Black (1) U Out 1
Black (2) V Out 4
Black (3) W Out 3
Green/
Yellow
PE Ground 2
Black (5) Brake+ Out A
White (6) Brake- Out B
B
A
C
D
3
1
4
