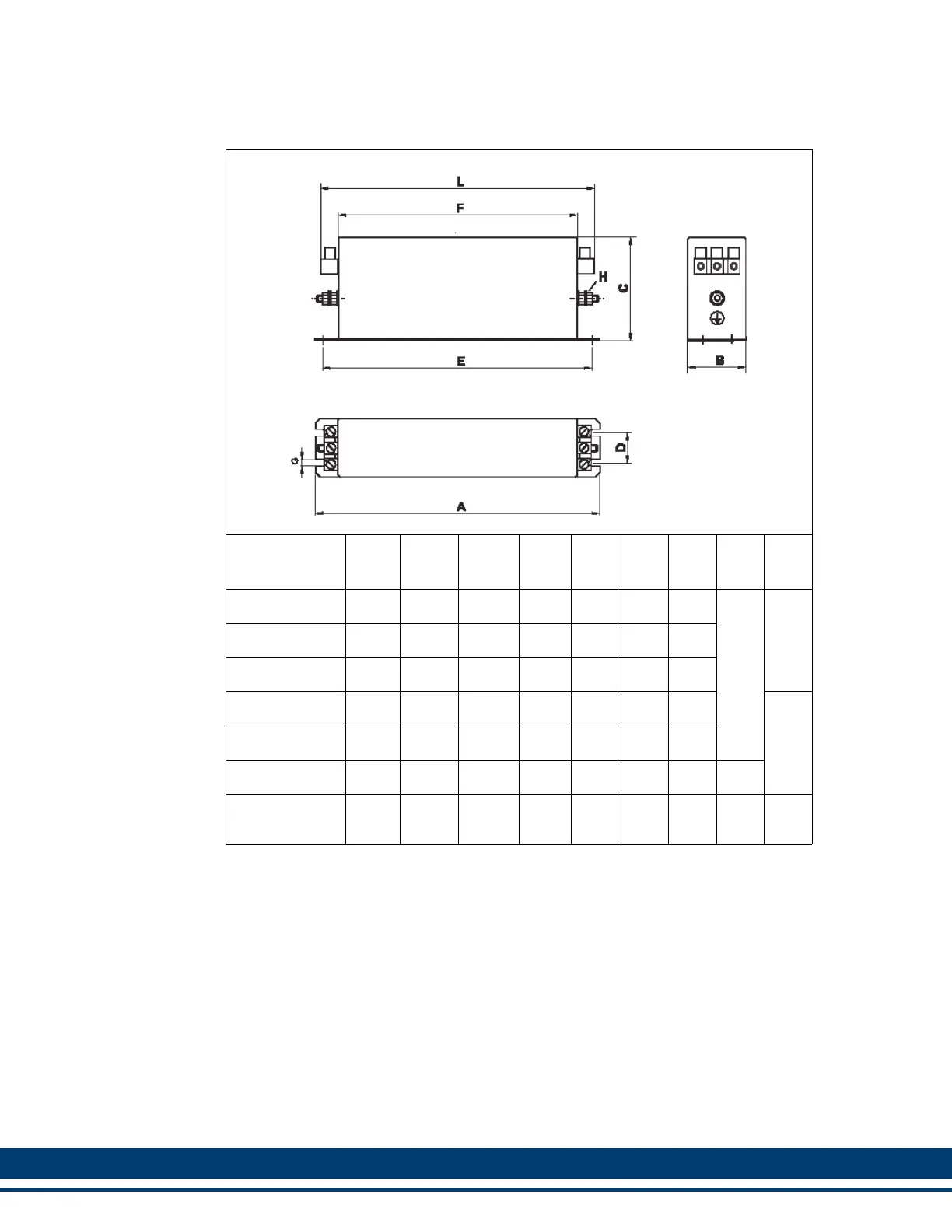

4.6.3 Dimensions for 460V Line Filters
Part
Number
A B C D E F L G H
M.1302.5241 190 40 70 20 180 160 185
5.4
M5M.1302.5244 250 50 70 25 235 220 245
M.1302.5245 270 50 85 30 255 240 265
M.1302.5246 310 50 85 30 295 280 305
M6M.1302.5247 250 85 90 60 235 220 258
M.1302.5248 270 80 135 60 255 240 278 6.5
M.3000.0190 270 90 150 65 255 240 326 6.5
