MMC Smart Drive Hardware Manual - SYSTEM POWER DEVICES
4.3.1 Specifications and Dimensions for Required Line Reactors

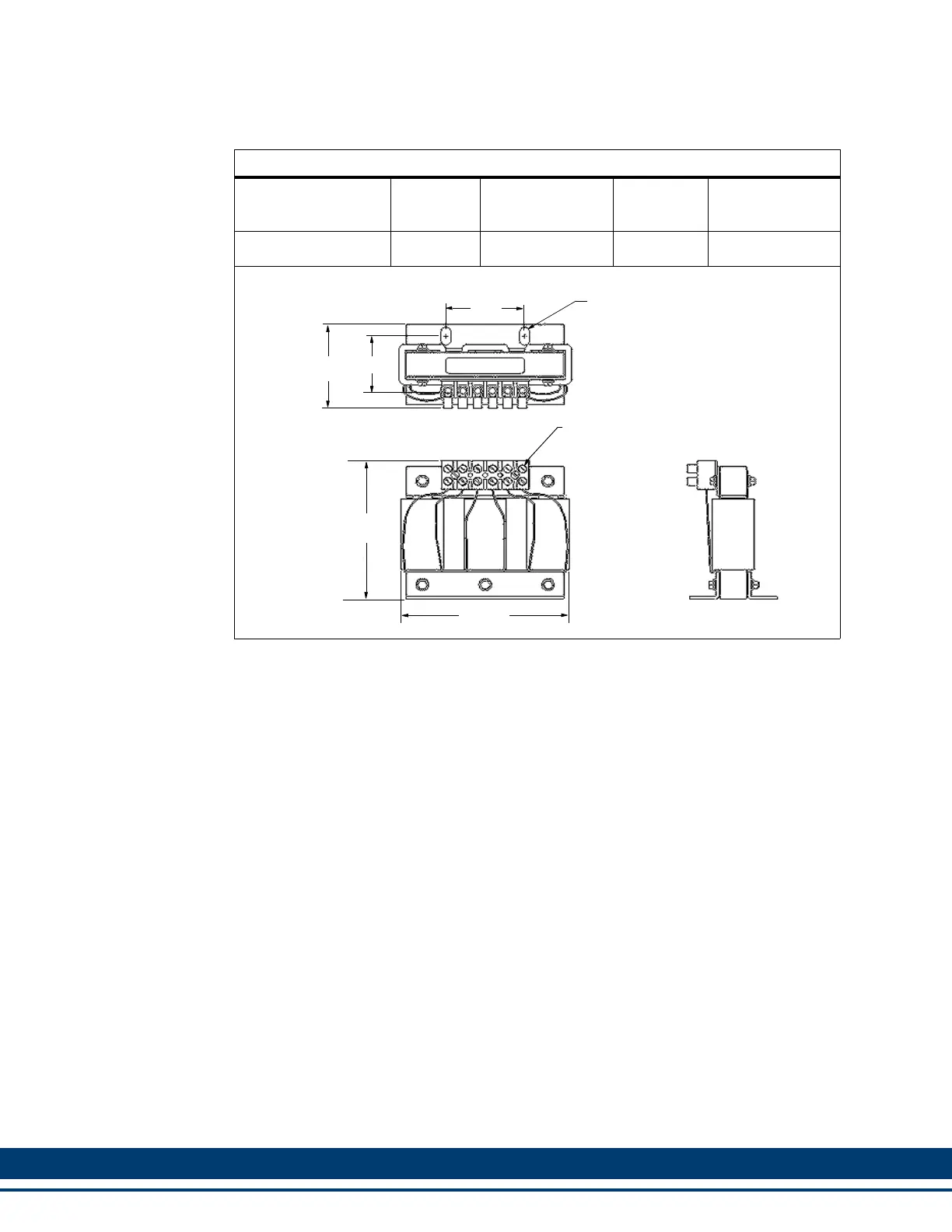

Table 4-5: MMC-SD-12-460 Line Reactor Specifications
Fundamental
Amperage
Power
Loss
Inductance Weight
Part
Number
25A 52W 1.2 mH 14 lbs. M.1302.7373
7.25 MAX
2.35
3.43
0.38 x 0.75
(4 SLOTS)
LABEL
WIRE RANGE: 22-5 AWG
CAUTION - TERMINAL SCREW TIGHTENING
TORQUE: 16 in-lb MAX
6.00
MAX
3.00
MAX
