MMC Smart Drive Hardware Manual - SYSTEM POWER DEVICES
Table 4-6: MMC-SD-16-460 Line Reactor Specifications
Fundamental
Amperage
Power
Loss
Inductance Weight
Part
Number
35A 54W 0.8 mH 16 lbs. M.1302.7374

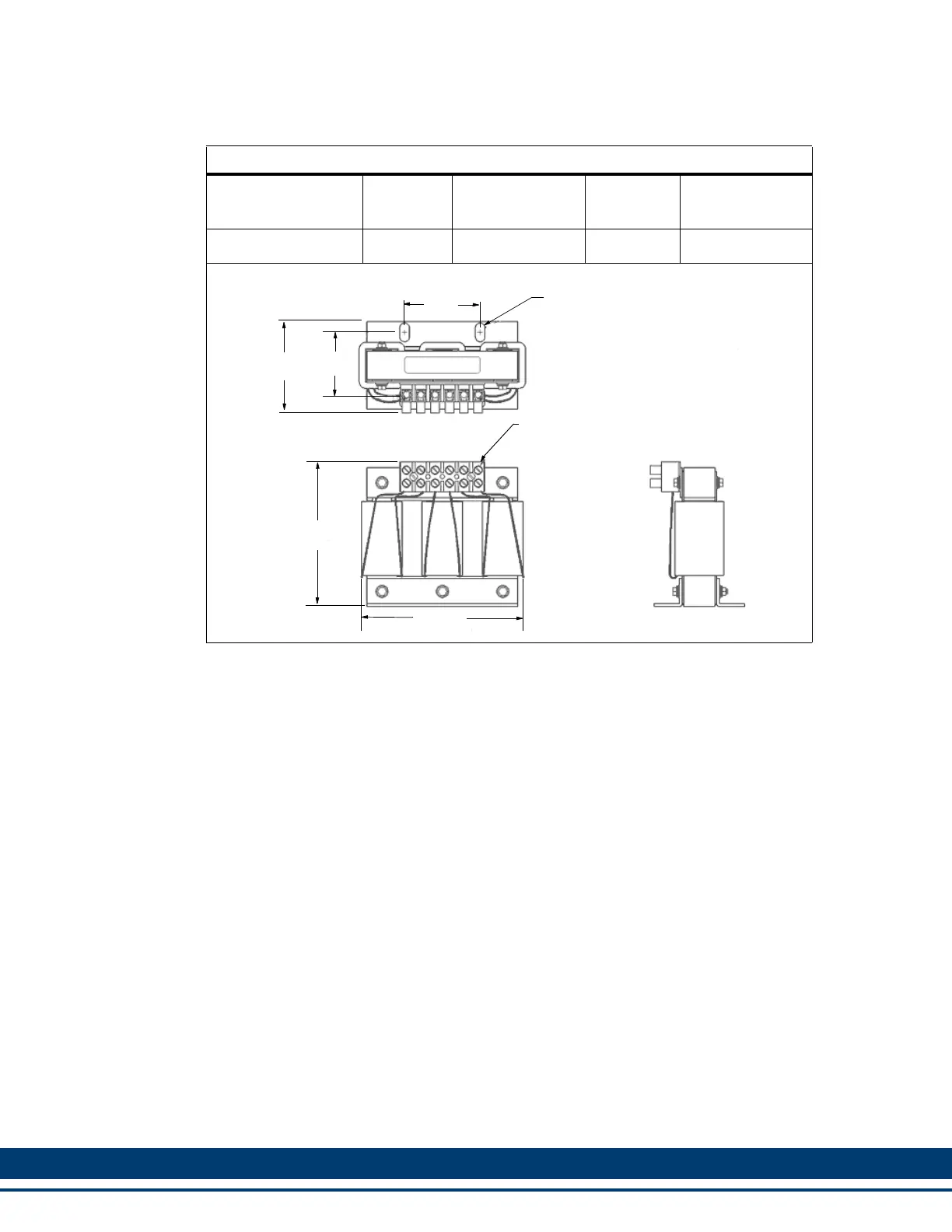

7.25 MAX
2.63
4.00
0.38 x 0.75
(4 SLOTS)
LABEL
WIRE RANGE: 22-5 AWG
CAUTION - TERMINAL SCREW TIGHTENING
TORQUE: 16 in-lb MAX
5.75
MAX
3.00
MAX
