MMC Smart Drive Hardware Manual - DRIVE RESIDENT DIGITAL MMC CONTROL

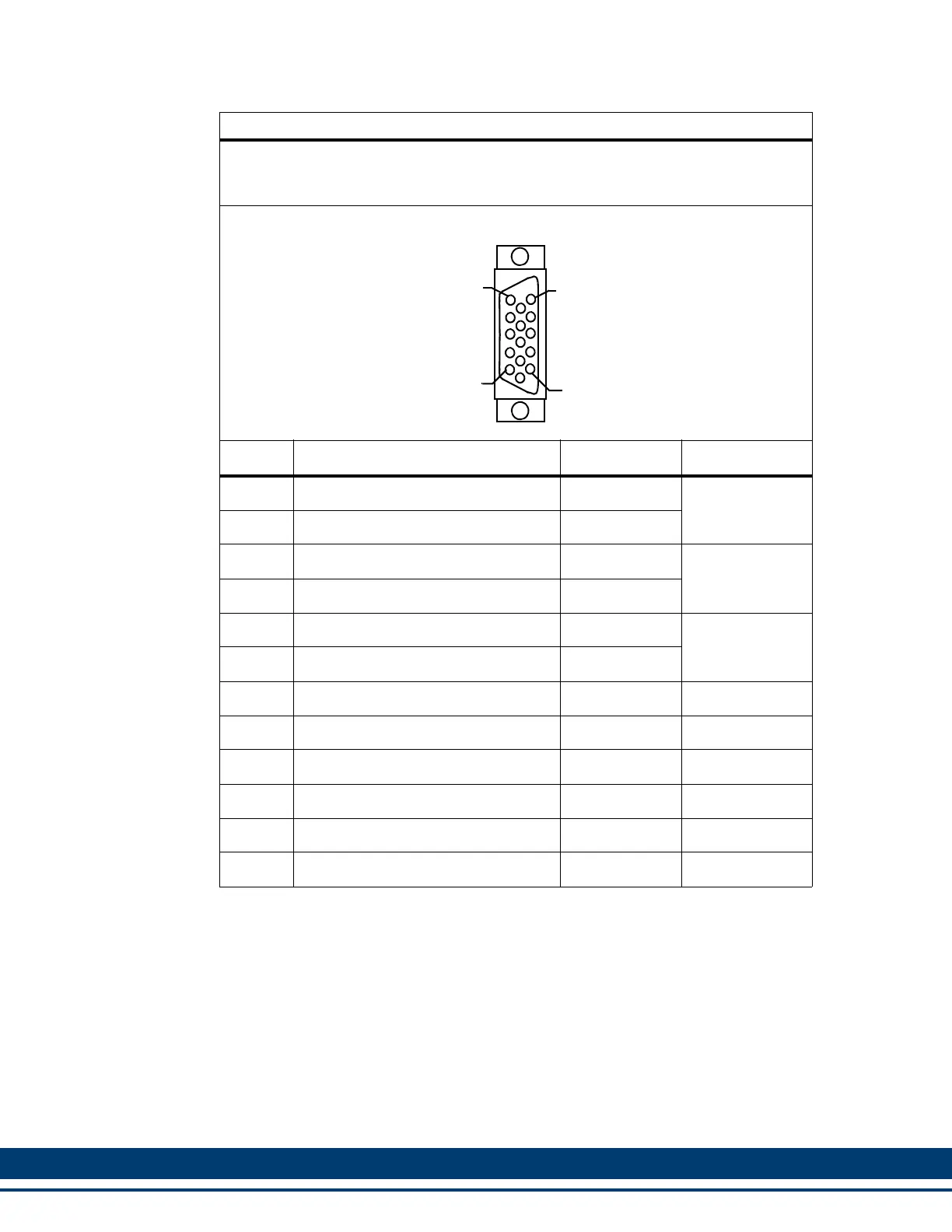

Table 12-10: User Port to Flying Lead Cable
Part Number: M.1016.2565
Length: 3 M (10 ft)
Cable type: 28 AWG, shielded, twisted pair, 16 conductor.
15-Pin HD female D-sub (to User Port, face view)
Pin Signal Color Notes
3 N/C Blue Twisted
8 Signal Ground Blue/Black Pair
12 RS485 Receive Data + Brown Twisted
13 RS485 Receive Data - Brown/Black Pair
14 RS485 Transmit Data + Violet Twisted
15 RS485 Transmit Data - Violet/Black Pair
4 RS232 Data-terminal Ready White
5 RS232 Request-to-send Red
7 RS232 Clear-to-send Green
9 RS232 Receive Data Yellow
10 RS232 Transmit Data Orange
Shell Drain N/A
5
1
15
11
