MMC Smart Drive Hardware Manual - DRIVE RESIDENT DIGITAL MMC CONTROL

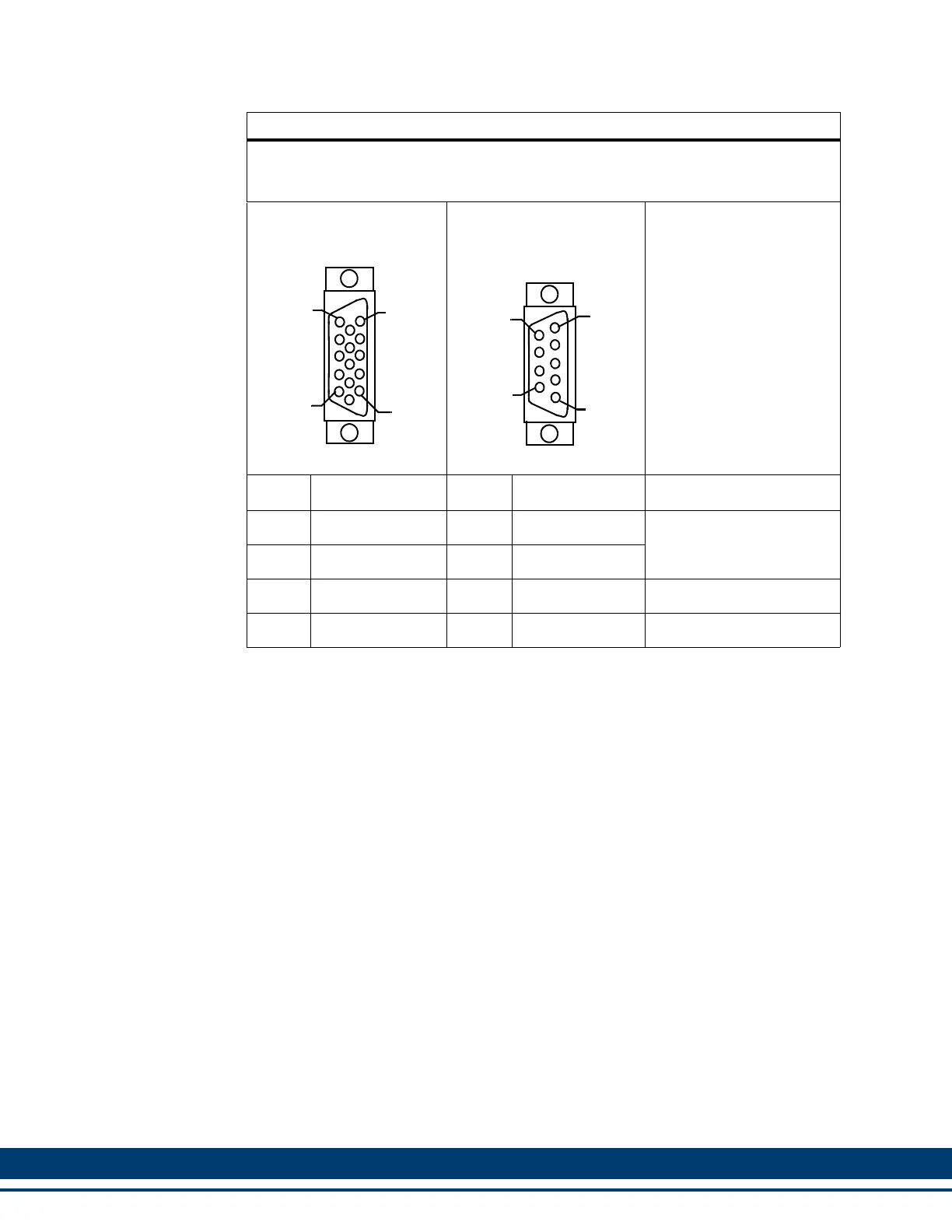

Table 12-11: User Port to RS-232 Exter HMI Cable
Part Number: M.1302.8453
Length: 4 M (13 ft)
Cable type: 24 AWG, shielded, twisted pair, 4 conductor.
15-Pin HD female D-sub
(to User Port, face view)
9-Pin female D-sub (to
Exter HMI COM2 Port,
face view)
Pin Signal Pin Signal Notes
9 Receive Data 3 Transmit Data Twisted
10 Transmit Data 2 Receive Data Pair
8 Signal Ground 5 Signal Ground
Shell Drain Shell Drain
5
1
15
11
6
5
9
1
