MMC Smart Drive Hardware Manual - DRIVE RESIDENT DIGITAL MMC CONTROL

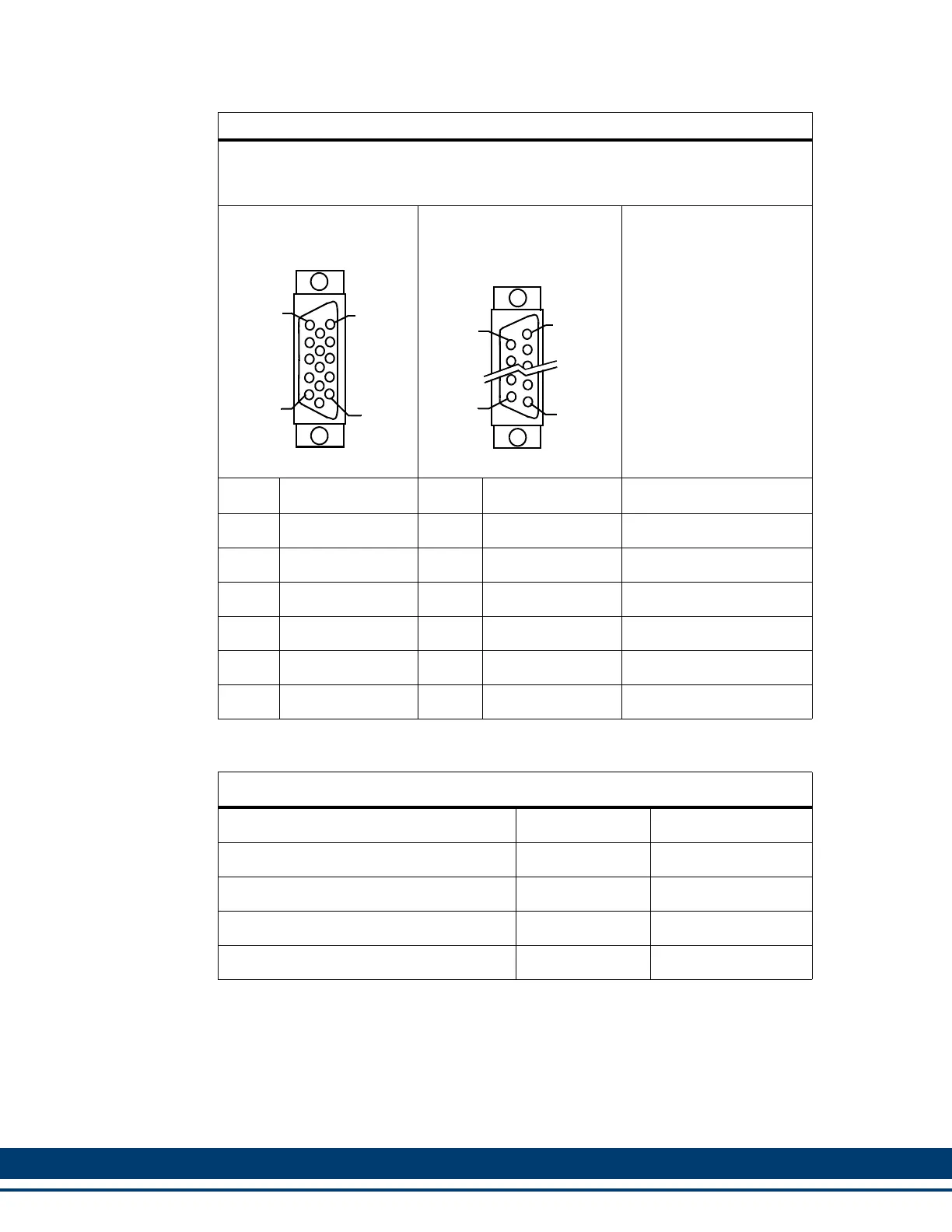

Table 12-12: User Port to RS-485 Exter HMI Cable
Part Number: M.1302.8454
Length: 4 M (13 ft)
Cable type: 24 AWG, shielded, twisted pair, 6 conductor.
15-Pin HD female D-sub
(to User Port, face view)
25-Pin male D-sub (to
Exter HMI COM1 Port,
face view)
Pin Signal Pin Signal Notes
12 Receive Data+ 2 Transmit Data+ Twisted
13 Receive Data- 15 Transmit Data- Pair
14 Transmit Data+ 3 Receive Data+ Twisted
15 Transmit Data- 16 Receive Data- Pair
8 Signal Ground 7 Signal Ground
Shell Drain Shell Drain
Table 12-13: User Port Breakout Box and Cables
a
a. The Breakout Box (see Figure 12-4 on page 281) is DIN-rail mounted, and pro-
vides screw terminal wire termination. It can be attached to the “C3” connector on
the Control. The pinouts on the terminal strip interface provide a one-to-one
transfer of the signals from the connector to the respective pin(s) on the terminal
block. The connector pins marked with the “ground” symbol on the screw connec-
tor are connected to the “D” connector shell for shield grounding purposes.
Description Length Part Number
MMC User Port Breakout Box N/A M.1016.2530
MMC User Port to Breakout Box Cable .3 M (1 ft) M.1016.2715
MMC User Port to Breakout Box Cable .6 M (2 ft) M.1016.2716
MMC User Port to Breakout Box Cable .9 M (3 ft) M.1016.2717
