Kollmorgen MMC Smart Drive - Page 212

210 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - 460V 3-PHASE MMC SMART DRIVE

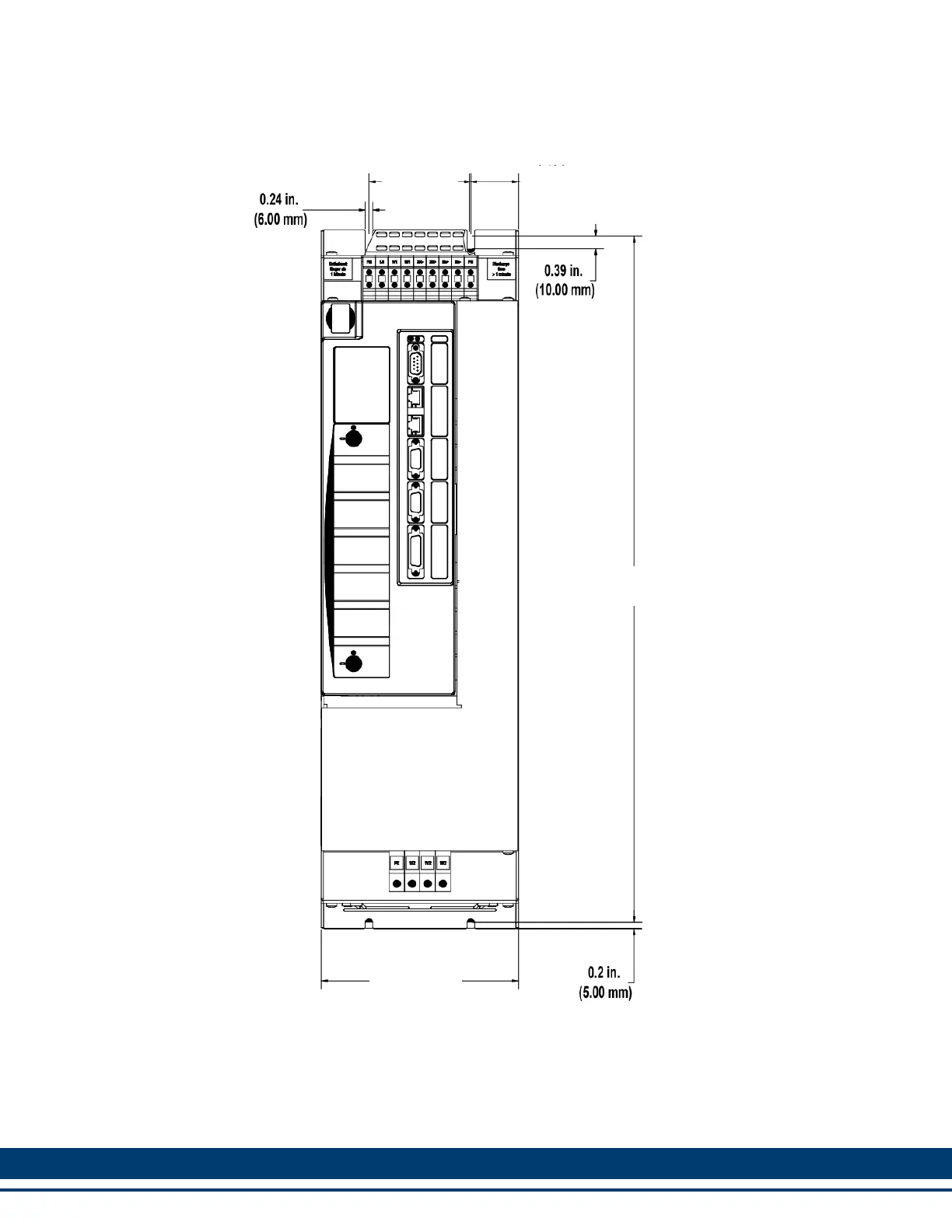

Figure 7-15: Size 4 460V Smart Drive - Front View
7.5in.
(190.00mm)
25.88in.
(655.00mm)
4.72in.
(120.00mm)
1.38in.
(35.00mm)
