MMC Smart Drive Hardware Manual - S200-DLS DRIVE

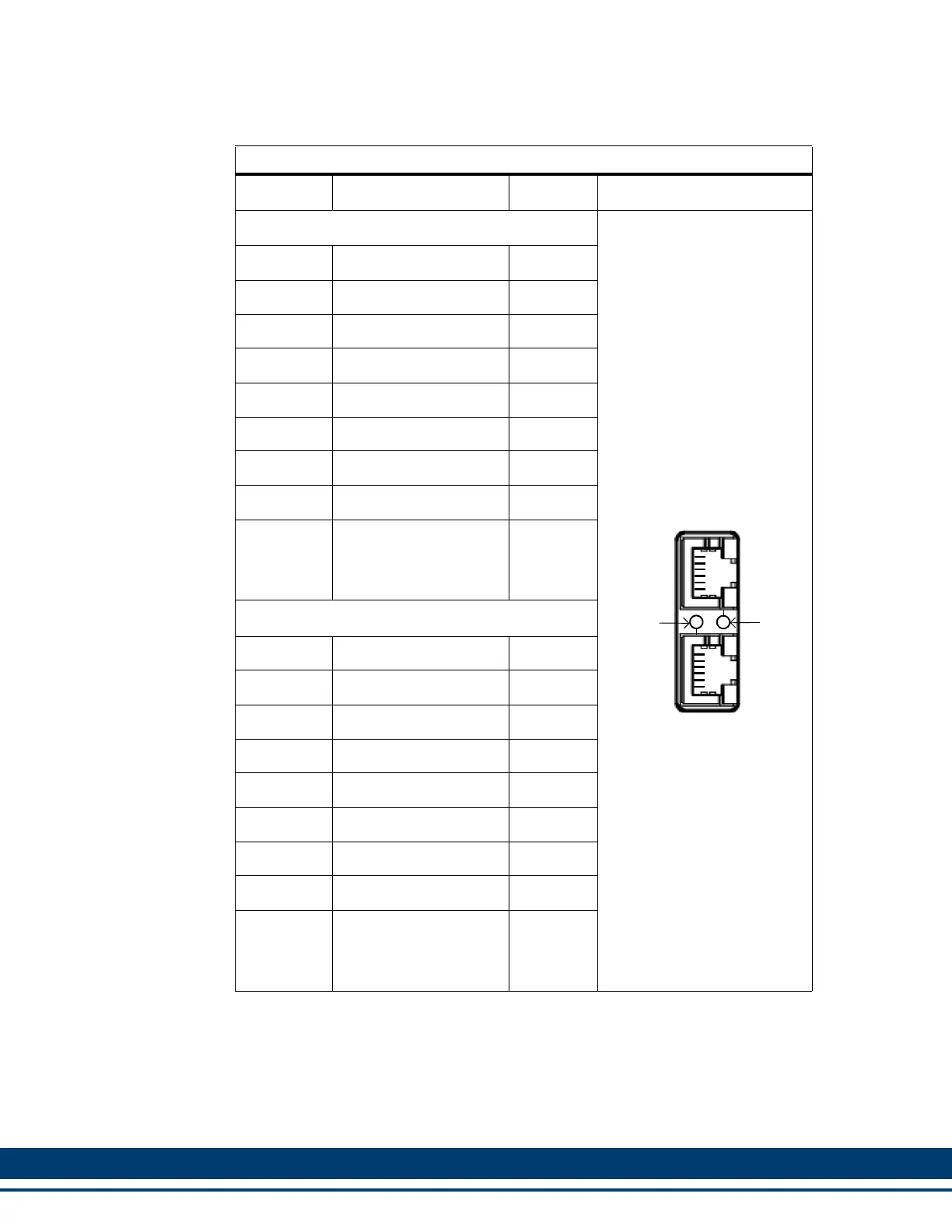

Table 8-3: Digital Link Port Pin Assignments
Pin Label In/Out Connector Pinout
IN Connector
1 Receive + In
RJ-45 Connectors
2 Receive - In
3 Transmit + Out
4 Not Used N/A
5 Not Used N/A
6 Transmit - Out
7 Not Used N/A
8 Not Used N/A
Connector
Shield
Provides a path for the
ground signal to an ex-
ternal single point
ground.
In
OUT Connector
1 Transmit + Out
2 Transmit - Out
3 Receive + In
4 Not Used N/A
5 Not Used N/A
6 Receive - In
7 Not Used N/A
8 Not Used N/A
Connector
Shield
Provides a path for the
ground signal to an ex-
ternal single point
ground.
In
1
8
“OUT"
LINK
“IN”
LINK
LED
LED
1
8
DLINK
IN
DLINK
OUT
J10
J9
