Kollmorgen MMC Smart Drive

228 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - S200-DLS DRIVE

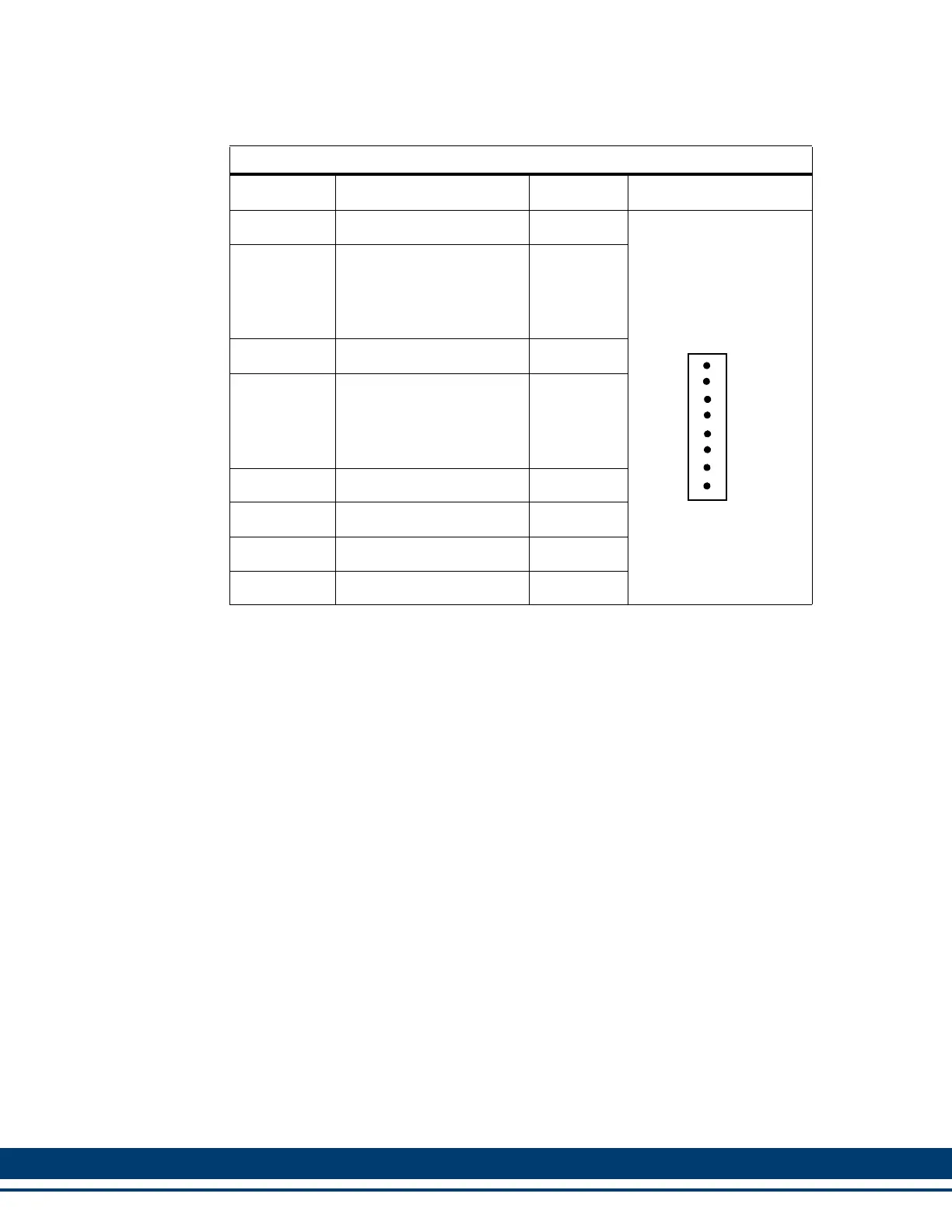

Table 8-12: Drive I/O Port Pin Assignments
Pin Signal In/Out Connector Pinout
1 DC Input 8 In
8-Pin plugable Screw
Terminal Connector
2
DC Input 7
(Data Capture input for
J8 Aux Feedback
connector)
In
3 DC Input 6 In
4
DC Input 5
(Data Capture input for
J3 SFD Feedback
connector)
In
5 DC Output 4 Out
6 DC Output 3 Out
7 DC Output 2 Out
8 DC Output 1 Out
8
1
J7
DRIVE
I/O
