Kollmorgen MMC Smart Drive

60 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - SYSTEM POWER DEVICES

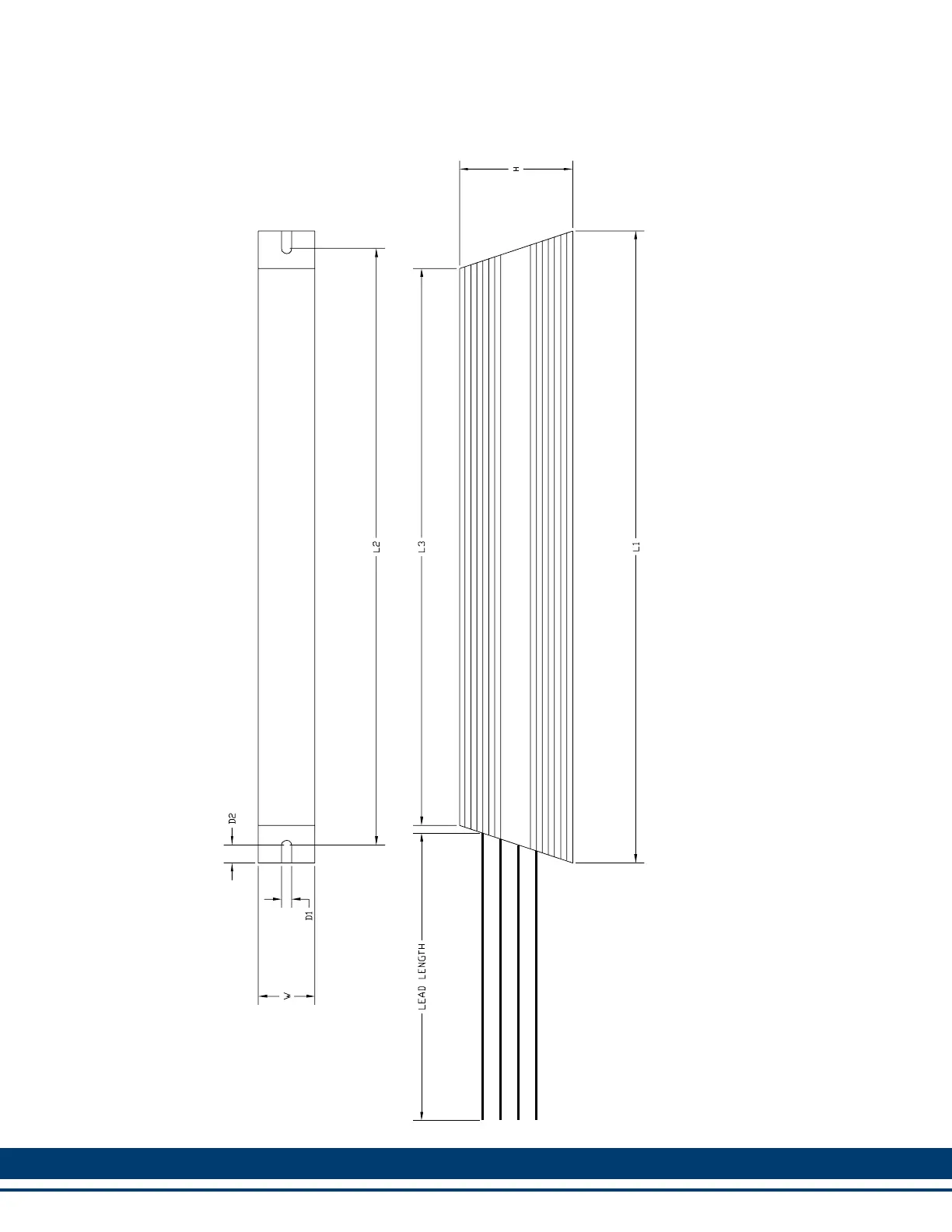

Figure 4-8: Mounting Dimensions for Reduced Size Panel mount Shunts
DIMENSIONS (mm)
PART NUMBER L1 L2 L3 W H D1 D2 LEADS
M.3000.0503 SHUNT RESISTOR, 300W 30 OHMS 215 196 175 30 60 5.3 9.5 500 M.3000.0504 SHUNT RESISTOR, 150W 130 OHMS 210 197 170 22 41 4.3 6.5 500 M.3000.0505 SHUNT RESISTOR, 300W 95 OHMS 215 196 175 30 60 5.3 9.5 500 M.3000.0506 SHUNT RESISTOR, 500W 50 OHMS 335 316 295 30 60 5.3 9.5 500 M.3000.0507 SHUNT RESISTOR, 800W 25 OHMS 285 266 245 61 59 5.3 9.5 500 M.3000.0508 SHUNT RESISTOR, 1200W 18 OHMS 405 386 365 61 59 5.3 9.5 500
