Kollmorgen MMC Smart Drive

74 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - 230V 1/3 PHASE MMC SMART DRIVE
USB ADAPTER
A USB-to-RS232 Adapter is available (P/N M.3000.0879) that allows you to
connect the PiCPro Port on the Control to a USB connector on your PC. One
side of the Adapter contains a 6in cable that connects to your PC. The other
side of the Adapter contains a male DB9 connector that allows connection to
the Control using a PiCPro Cable M.1302.8250 (not provided, described in
Table 5-7 on page 78).

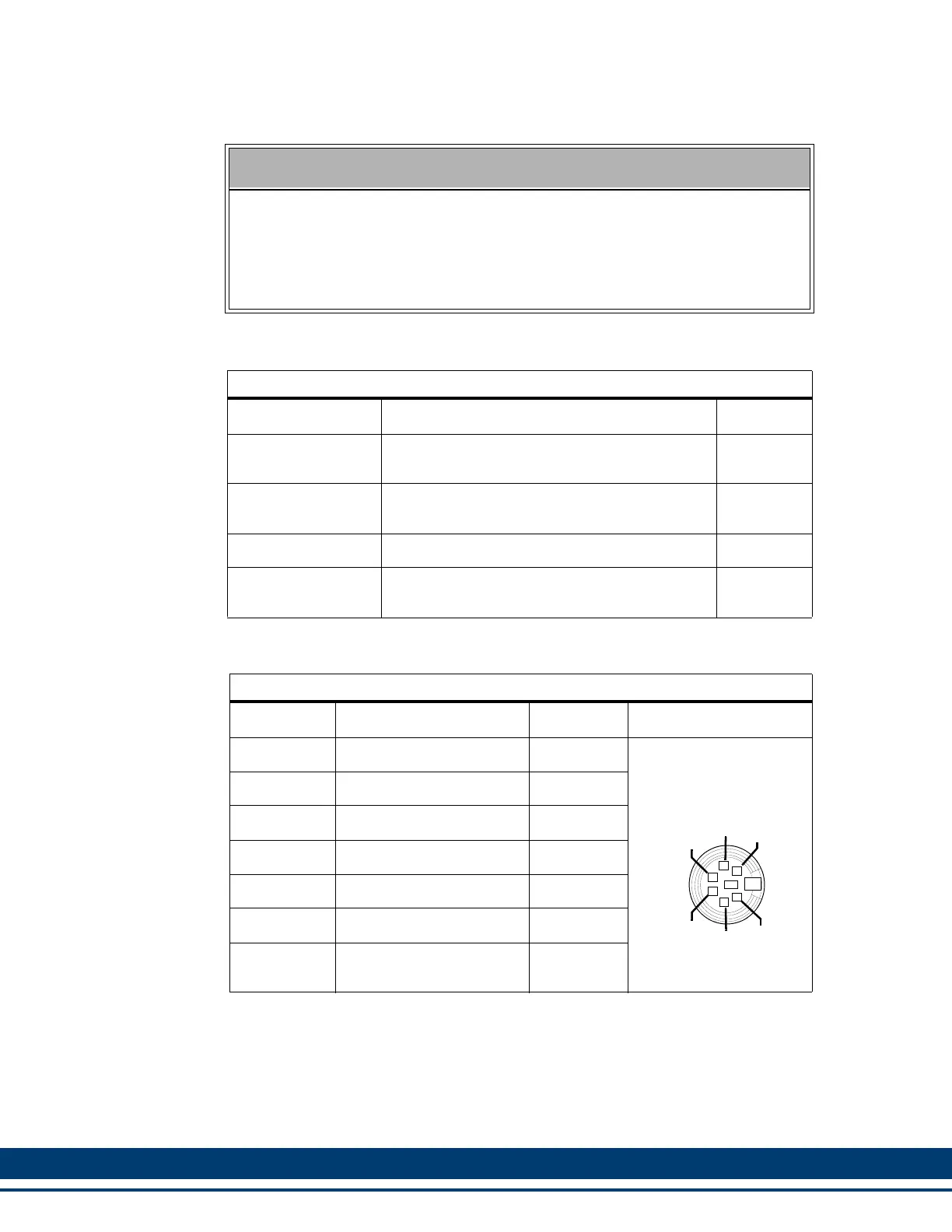

Table 5-2: PiCPro Port Pin Descriptions
Function Notes Pin
Receive Data
RS232-level signal that receives serial data
from the connected PC running PiCPro.
1
Transmit Data
RS232-level signal that transmits serial data to
the connected PC running PiCPro.
2
Signal Ground Provides the return path for signals 3 and 5
Shield Ground
Provides a path for shield current through the
chassis to an external single point ground.
Connector
Shell
Table 5-3: PiCPro Port Pin Assignments
Pin Signal In/Out Connector Pinout
1 RS232 Receive Data In
6-pin Female
Miniature Circular DIN
2 RS232 Transmit Data Out
3 Signal Ground In/Out
4 NC N/A
5 Signal Ground In/Out
6 NC N/A
Connector
Shield
Shield In
1
6
5
2
3
4
