MMC Smart Drive Hardware Manual - 230V 1/3 PHASE MMC SMART DRIVE

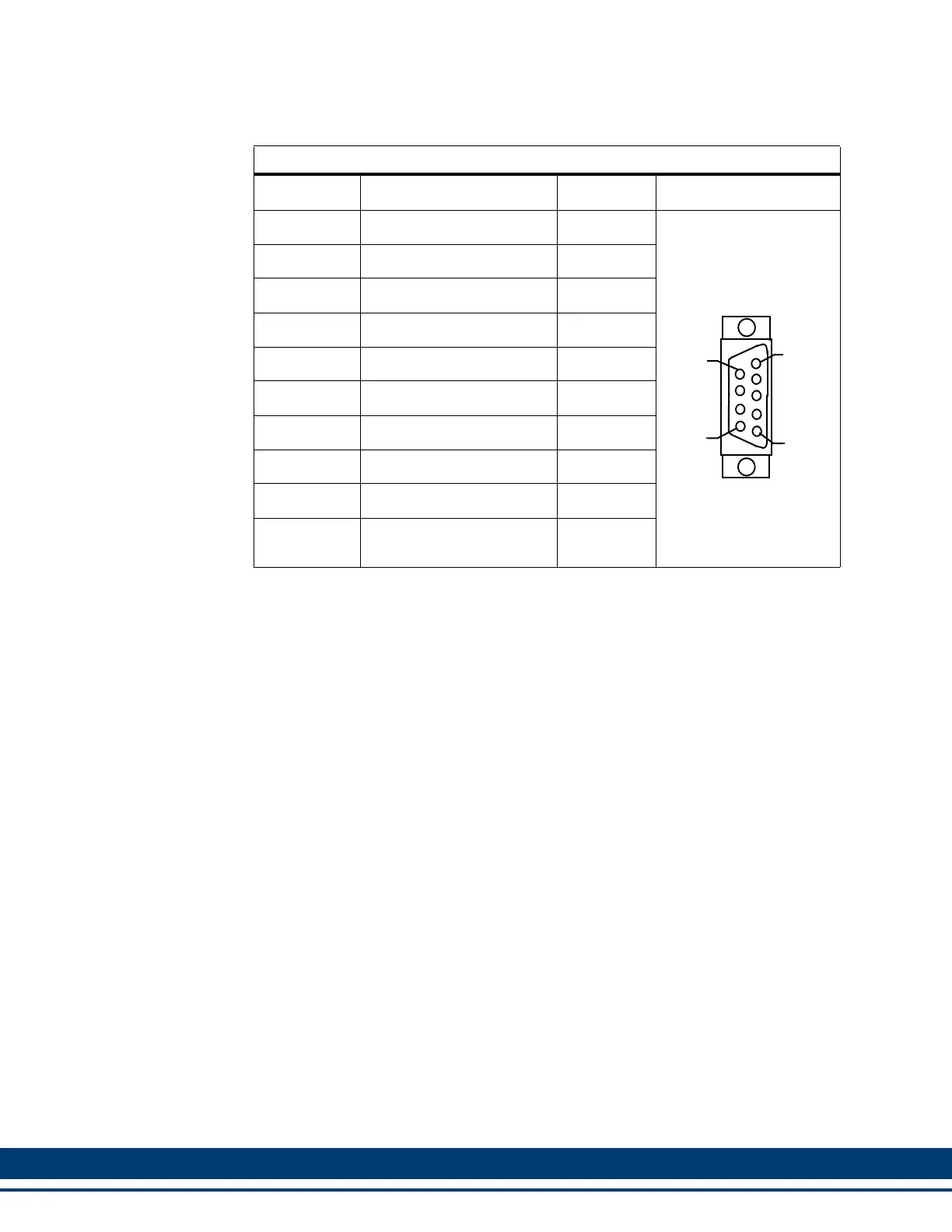

Table 5-6: PiCPro Port Pin Assignments
Pin Signal In/Out Connector Pinout
1 NC N/A
9-pin male D-sub
2 RS232 Receive Data In
3 RS232 Transmit Data Out
4 Data Terminal Ready Out
5 Signal Ground In/Out
6 NC N/A
7 Request-to-send Out
8 NC N/A
9 NC N/A
Connector
Shield
Drain In
1
9
5
6
