MMC Smart Drive Hardware Manual - 230V 1/3 PHASE MMC SMART DRIVE

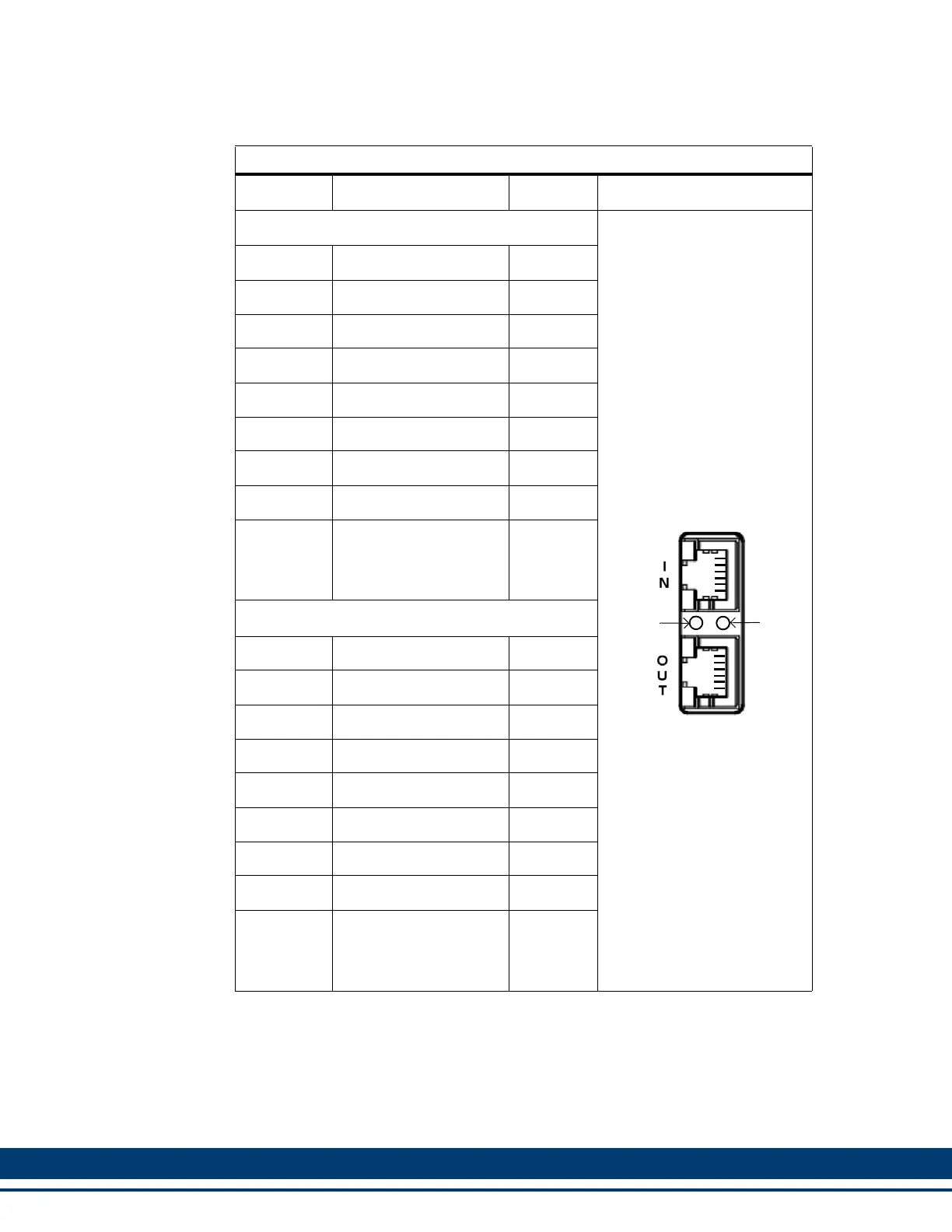

Table 5-9: Digital Link Port Pin Assignments
Pin Label In/Out Connector Pinout
IN Connector
1 Receive + In
RJ-45 Connectors
2 Receive - In
3 Transmit + Out
4 Not Used N/A
5 Not Used N/A
6 Transmit - Out
7 Not Used N/A
8 Not Used N/A
Connector
Shield
Provides a path for the
ground signal to an ex-
ternal single point
ground.
In
OUT Connector
1 Transmit + Out
2 Transmit - Out
3 Receive + In
4 Not Used N/A
5 Not Used N/A
6 Receive - In
7 Not Used N/A
8 Not Used N/A
Connector
Shield
Provides a path for the
ground signal to an ex-
ternal single point
ground.
In
1
8
1
8
“IN”
LINK
“OUT”
LINK
LED
LED
