Draining Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from oil inlet port after removing the oil inlet (2) up to the
line of the level gauge (3).
• After running the engine for few minutes, stop it and check the oil
level again, add the transmission fluid to prescribed level if its
level is not correct level.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-8.)
• Do not mix different brands of fluid together.
W1092616
Transmission fluid capacity
44.0 L
11.6 U.S.gals
9.7 lmp.gals

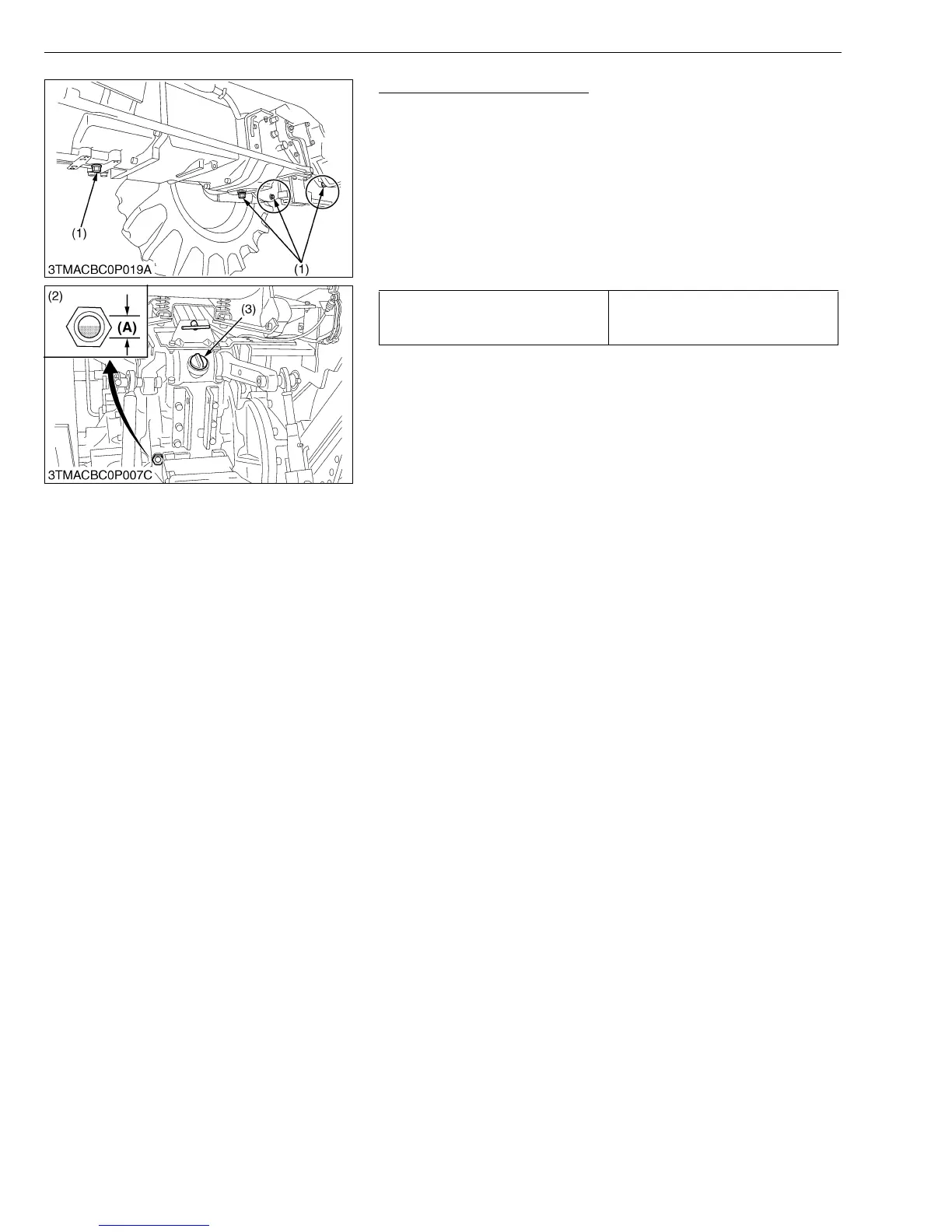

(1) Drain Plugs
(2) Level Gauge
(3) Oil Inlet
(A) Oil level is acceptable within this
range.
