2-S16
MX5100, WSM
CLUTCH
(2) Disassembling Clutch

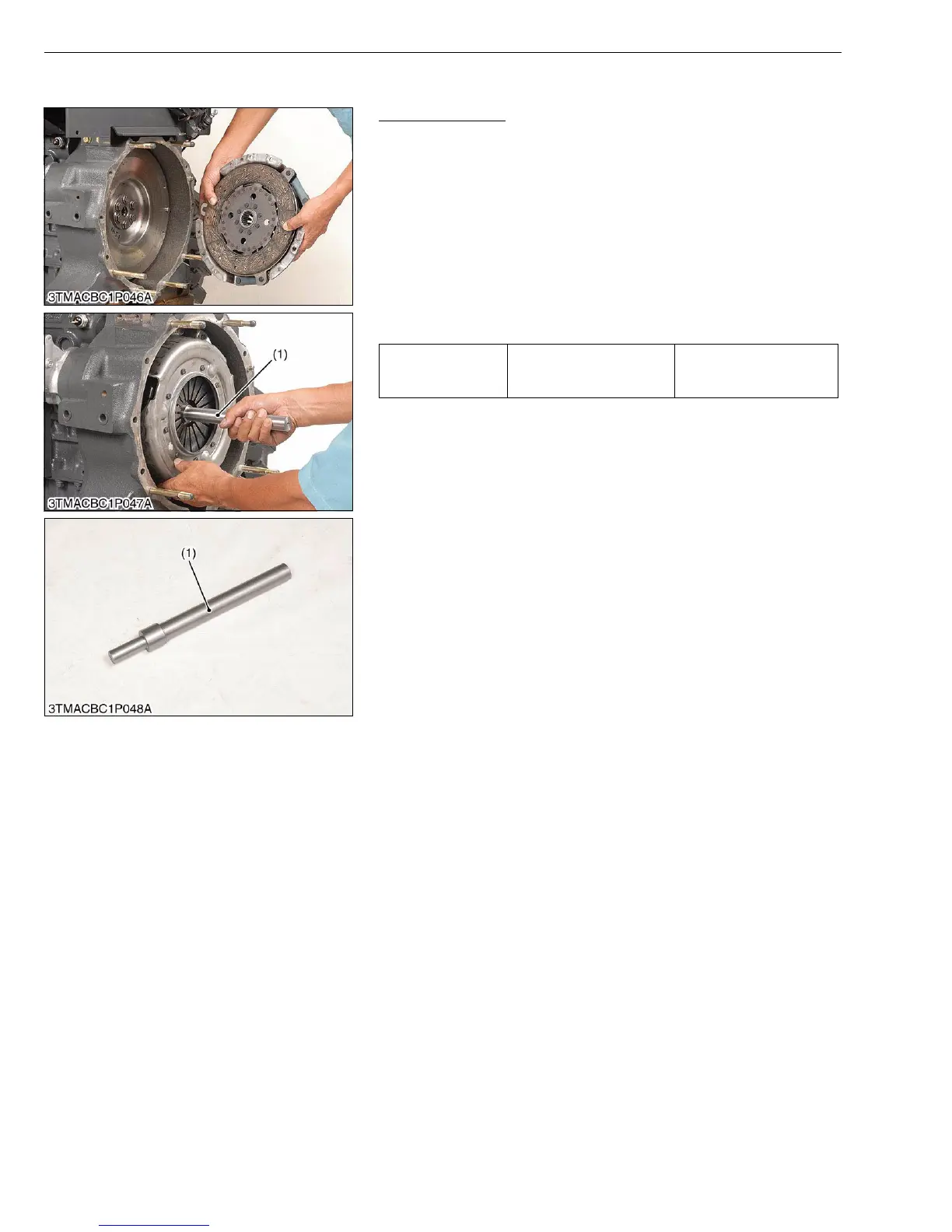

Clutch Assembly
1. Remove the clutch from the flywheel.
(When reassembling)
• Direct the shorter end of the clutch disc boss toward the flywheel.
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the splines of clutch disc boss.
• Install the pressure plate, nothing the position of straight pins.
• Align the center of disc and flywheel by inserting the clutch
center tool. (Refer to G-56.)
• Do not allow grease and oil on the clutch disc facing.
W10451080
Tightening torque
Clutch pressure plate
mounting screws
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.5 to 20.3 lbf·ft
(1) Clutch Center Tool
