Kubota MX5100 - Hazard Switch; Flasher Unit

9-S22
MX5100, WSM
ELECTRICAL SYSTEM

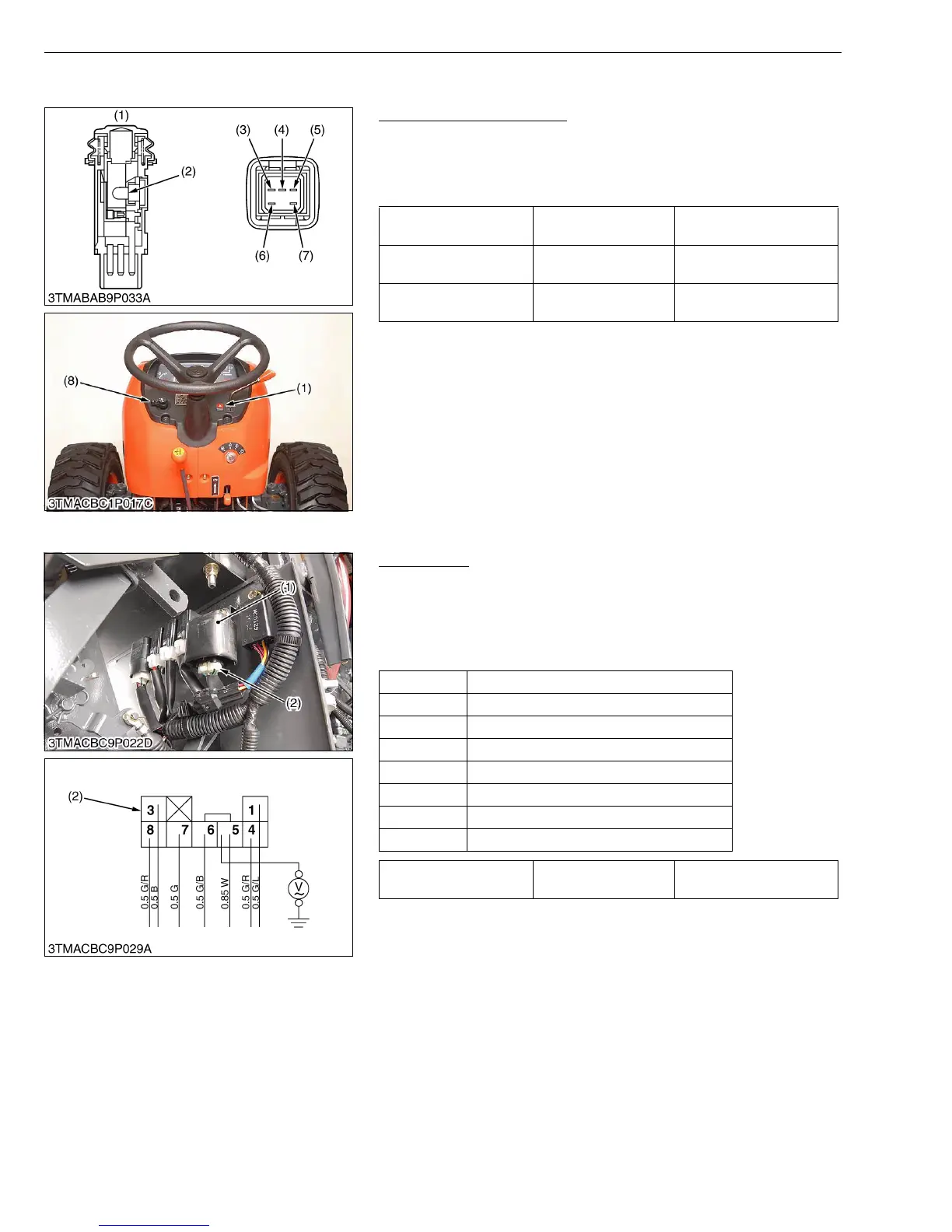

(10) Hazard Switch
Hazard Switch Continuity
1. Measure the resistance with ohmmeter between the a terminal
and c terminal, between the d terminal and e terminal.
2. If the measurement is not the same as below, the hazard switch
or the bulb is faulty.
W1052837
(11) Flasher Unit
Flasher Unit
1. Disconnect the connector from the flasher unit (1).
2. Measure the voltage with a voltmeter across the battery terminal
and chassis.
3. If the voltage differs from the battery voltage, the wiring harness
is faulty.
W1053948
Resistance
(Switch at OFF)
a Terminal -
c Terminal
Infinity
Resistance
(Switch at ON)
a Terminal -
c Terminal
0 Ω
Resistance
(Bulb)
d Terminal -
e Terminal
Approx. 13 Ω
(1) Hazard Switch
(2) Bulb
(3) a Terminal
(4) b Terminal
(5) c Terminal
(6) d Terminal
(7) e Terminal
(8) Turn Signal Switch
1 Winker LH (Lamp)
2
3 GND
4 Winker RH (Switch)
5 +B
6 Winker RH (Lamp)
7 Winker LH (Switch)
8 Hazard Switch
Voltage
Flasher unit battery
terminal - Chassis
Approx. battery voltage
(1) Flasher Unit (2) 8P Connector (Wire Harness Side)
