1-S35
MX5100, WSM
ENGINE
(2) Engine External Components
Removing Engine Outer Parts
1. Remove the tank stay (1).
2. Remove the fan belt protection cover (2).
3. Remove the accelerating wire (5) and the oil filter (6).
4. Check oil leakage from the turbocharger (7).
(When reassembling)
• If the oil leakage from the turbocharger is found, replace the
turbocharger as an assembly. Refer to page 1-S37.
W1157746

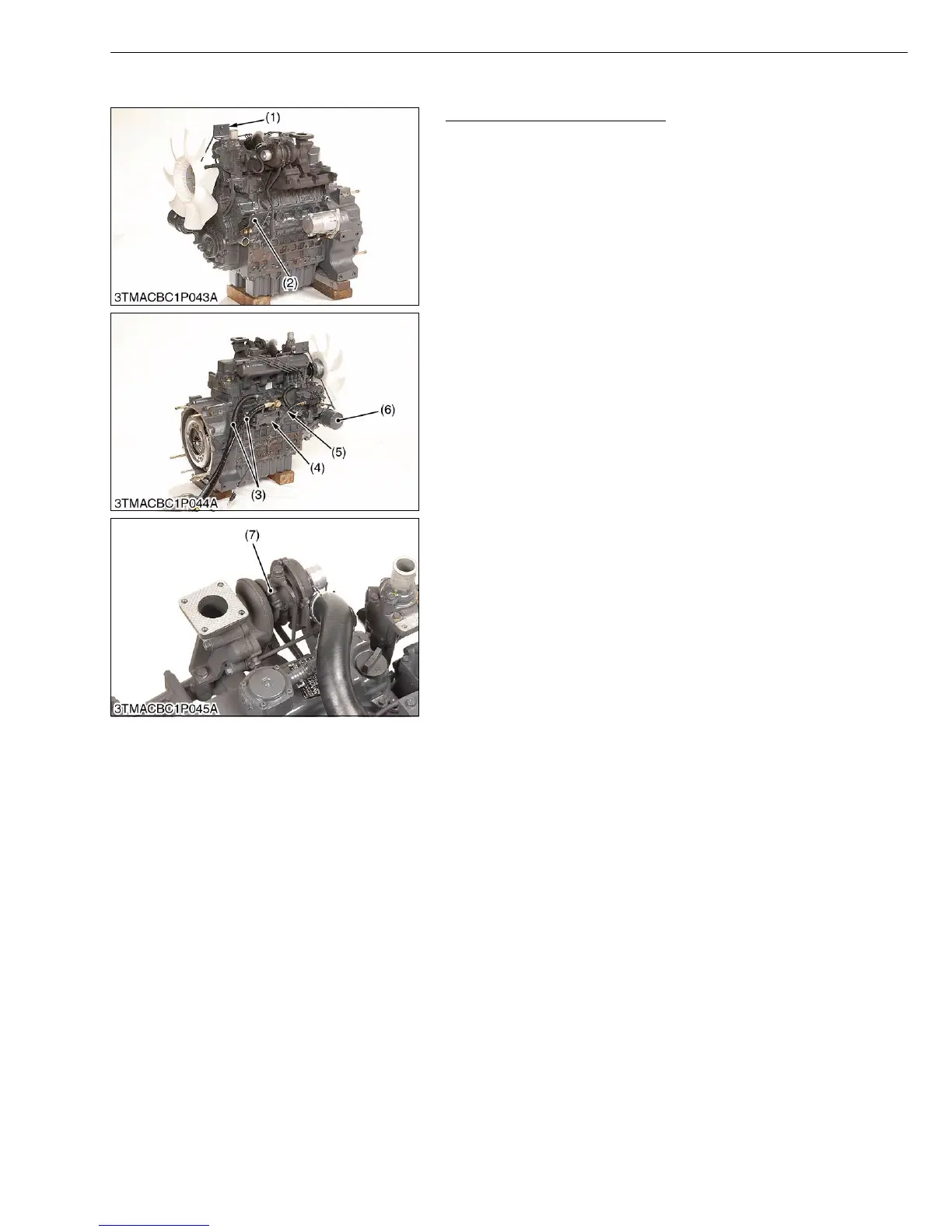

(1) Tank Stay
(2) Fan Belt Protection Cover
(3) Hydraulic Hose
(4) Hydraulic Pump
(5) Accelerating Wire
(6) Oil Filter
(7) Turbocharger
To Next Page
