MX5100, WSM
ENGINE
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Engine from Tractor
Draining Engine Oil
1. Start and warm up the engine for approx. 5 minutes.
2. Place an oil pan underneath the engine.
3. Remove the drain plugs (1) to drain oil.
(When refilling)
• After draining oil, screw in the drain plugs.
• Fill the engine oil up to the upper line on the dipstick (2).
• Do not mix two different types of oil.
• Use the proper SAE engine oil according to ambient
temperature.
Refer to “LUBRICATING, FUEL AND COOLANT”. (See
page G-8.)
W1028998
Engine oil capacity (with filter)
9.4 L
9.9 U.S.qts
6.3 Imp.qts

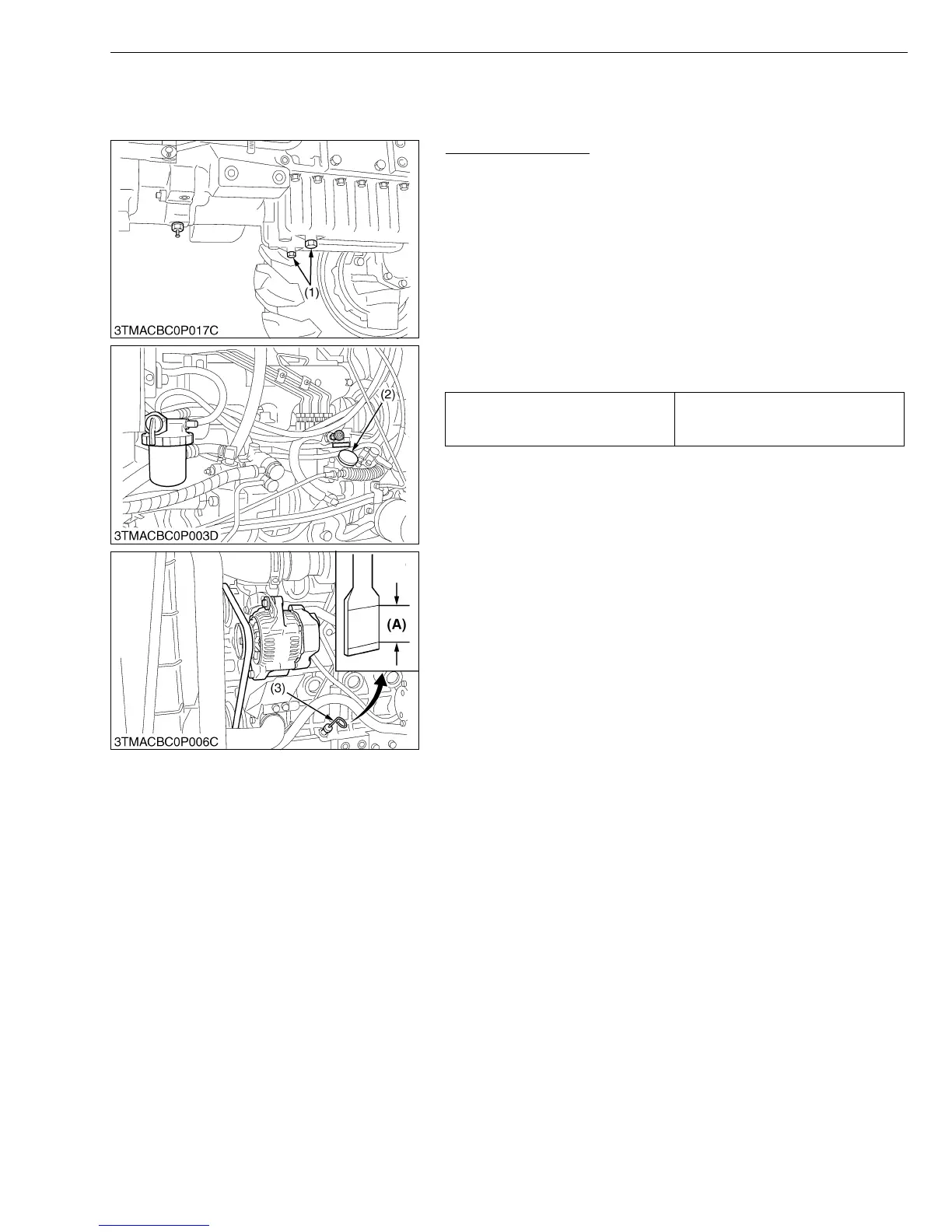

(1) Drain Plug
(2) Oil Inlet Plug
(3) Dipstick
(A) Oil level is acceptable within this
range.
