8-M1
MX5100, WSM
HYDRAULIC SYSTEM

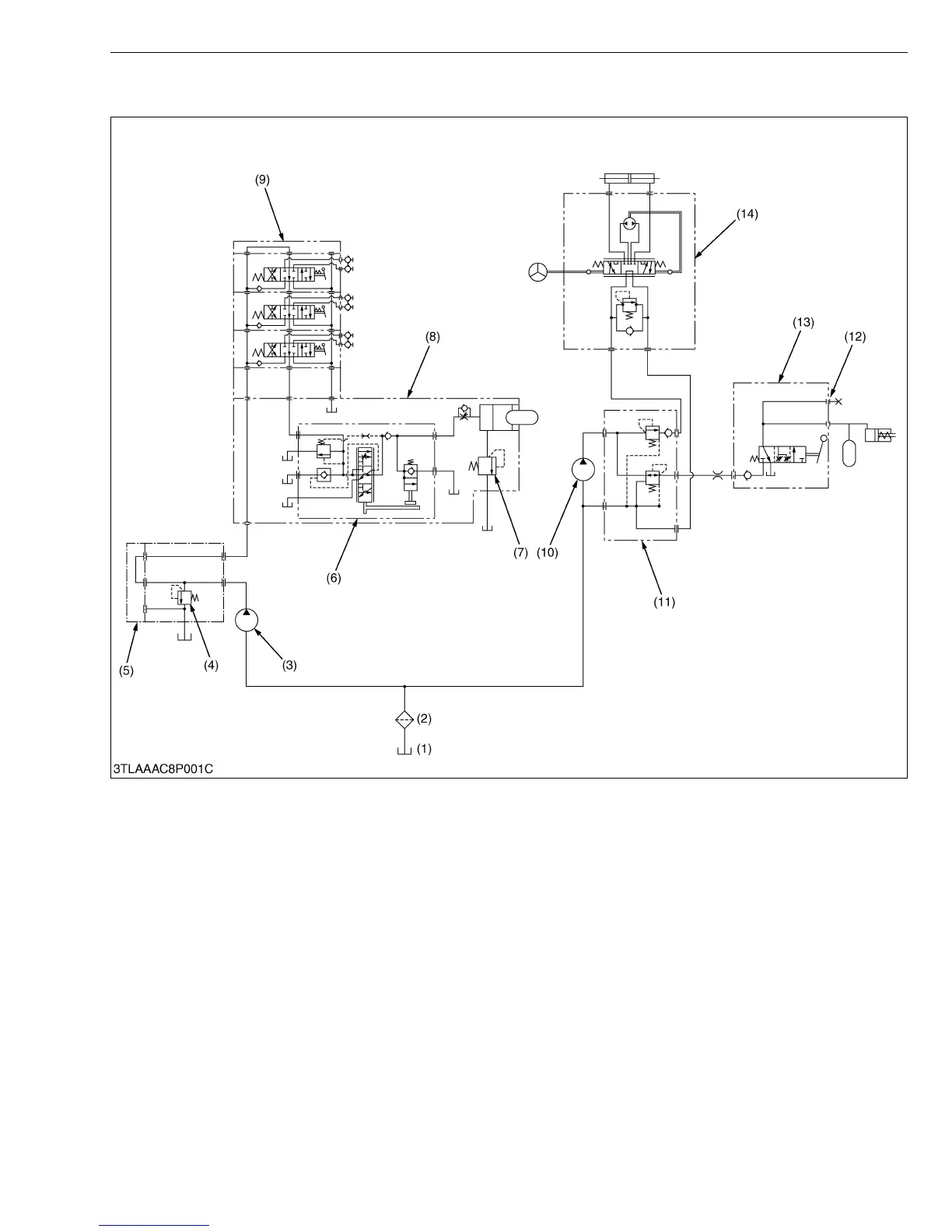

1. HYDRAULIC CIRCUIT
(1) Transmission Case
(2) Oil Filter
(3) Hydraulic Pump (for 3-points
Hitch)
(4) Relief Valve
(5) Front Hydraulic Block
(6) Position Control Valve
(7) Cylinder Safety Valve
(8) Hydraulic Cylinder Block
(9) Auxiliary Control Valve
(Option)
(10) Hydraulic Pump (for Power
Steering and PTO Clutch)
(11) Regulator Valve (Refer to
CLUTCH Section)
(12) Check Port (for PTO Clutch
Operating Pressure)
(13) PTO Clutch Valve (Refer to
CLUTCH Section)
(14) Power Steering Controller
(Refer to STEERING Section)
To Next Page
