7-M1
MX5100, WSM
STEERING
1. STRUCTURE

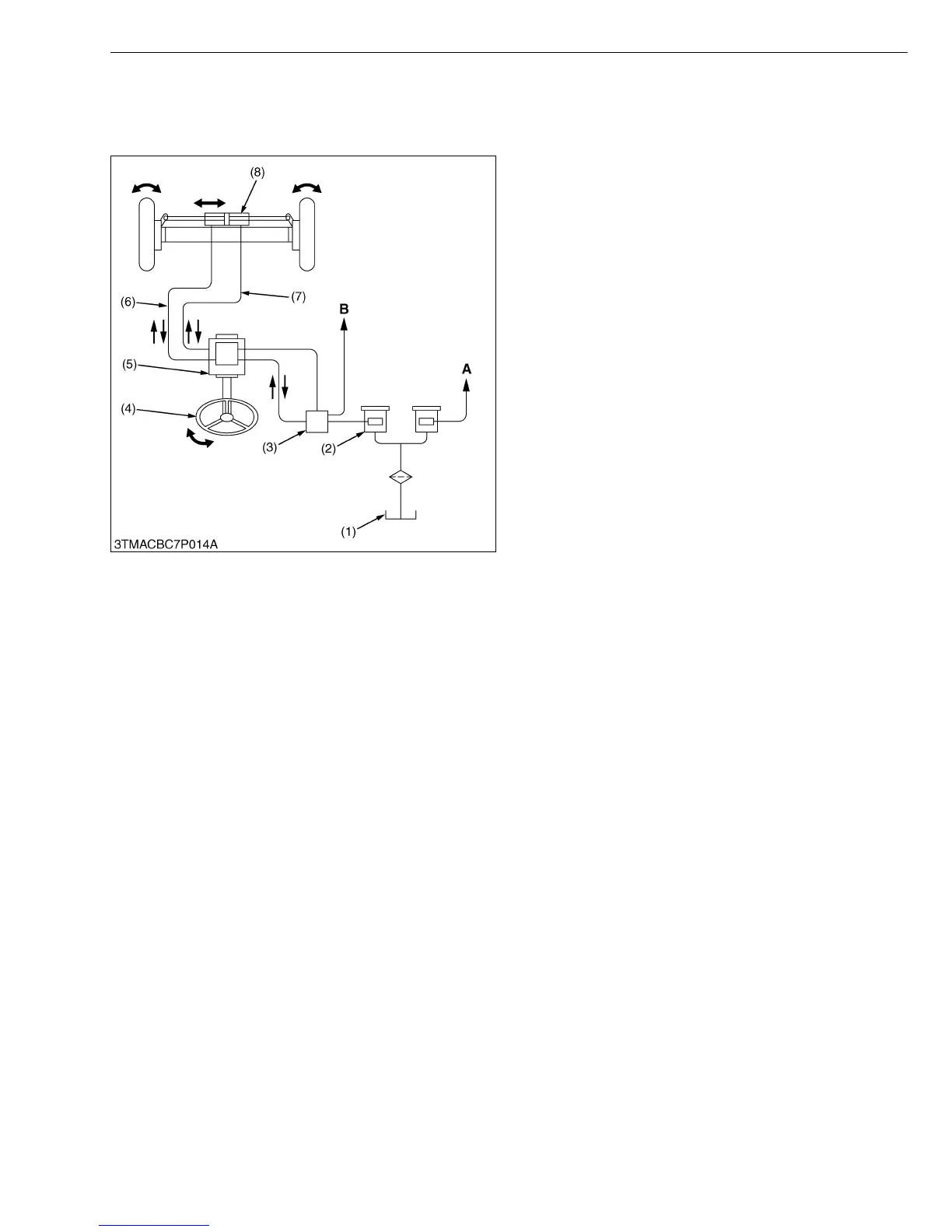

[1] STEERING LINKAGE
MX5100 is provided with a hydraulic power steering.
The steering controller is connected to the steering
cylinder with the hydraulic hoses.
This steering is actuated by oil pressure. Accordingly,
it does not have mechanical transmitting parts such as
steering gear, drag link, etc..
Therefore, it is simple in construction. In this model,
the non-road reaction type is used. With this type, the
wheels maintain their position when the operator
releases his hands from the steering wheel. Vibration at
the wheel is not transmitted to the steering wheel.
W10126770
(1) Transmission Case
(2) Hydraulic Pump
(3) Regulator Valve
(4) Steering Wheel
(5) Steering Controller
(6) Hydraulic Hose
(7) Hydraulic Hose
(8) Steering Cylinder
A : To 3-Points Control Valve
B : To PTO Clutch Valve
