Kubota MX5100 - Main Switch

9-S9
MX5100, WSM
ELECTRICAL SYSTEM

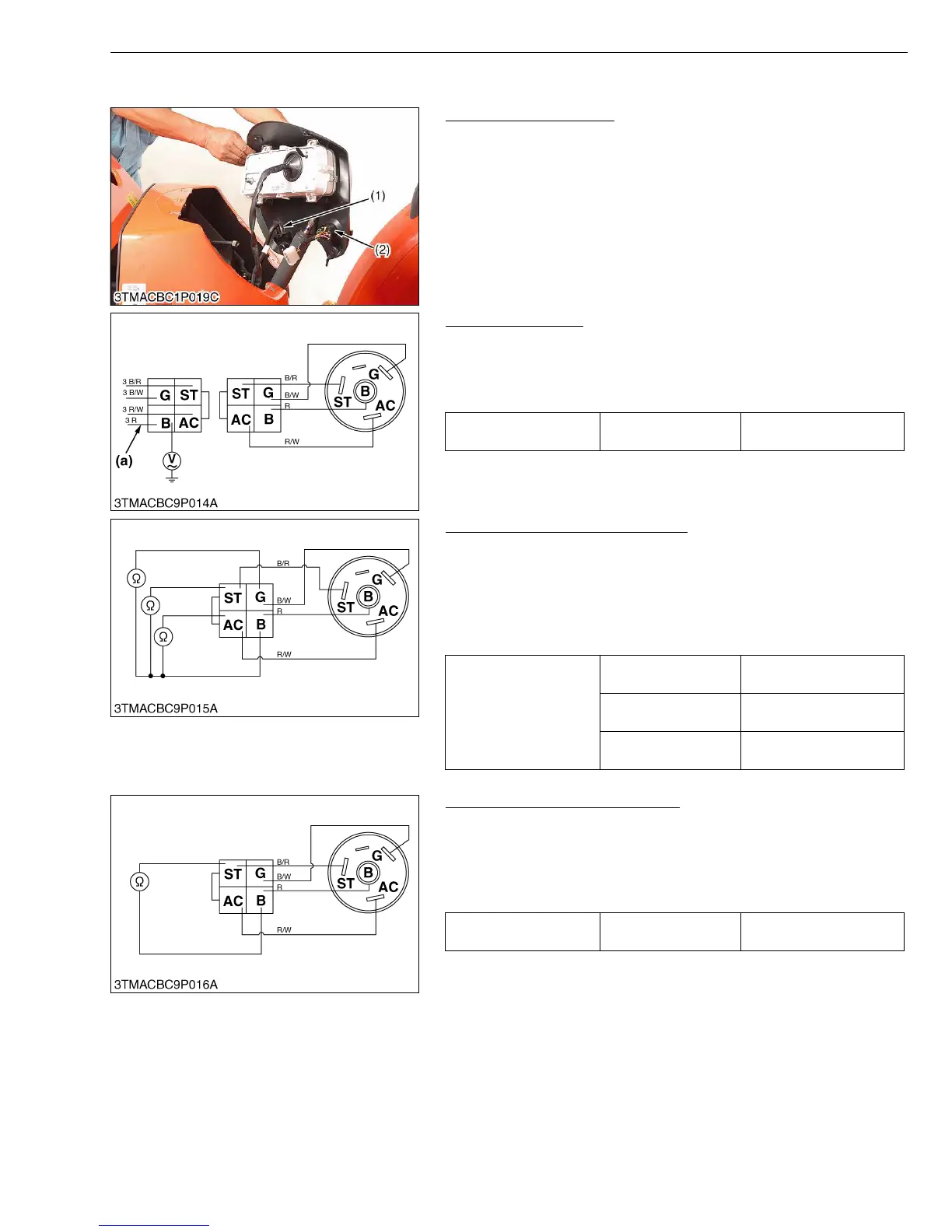

(2) Main Switch
Removing Main Switch
1. Remove the meter panel (2) from the rear bonnet. Refer to “1.
ENGINE” section.
2. Disconnect the main switch 4P connector.
3. Perform the following checking.
W1034758
Connector Voltage
1. Measure the voltage with a voltmeter across the connector B
terminal and chassis.
2. If the voltage differs from the battery voltage (11 to 14 V), the
wiring harness is faulty.
W1036621
Main Switch Key at OFF Position
1. Turn the main switch off.
2. Measure the resistance with an ohmmeter across the B terminal
and the AC terminal, B terminal and ST terminal, and B terminal
and G terminal.
3. If infinity is not indicated, the contacts of the main switch are
faulty.
W1062472
Main Switch Key at ON Position
1. Turn the main switch on.
2. Measure the resistance with an ohmmeter across the B terminal
and the AC terminal.
3. If 0 ohm is not indicated, the B - AC contacts of the main switch
are faulty.
W1020793
(1) Main Switch 4P Connector (2) Meter Panel
Voltage
Connector B terminal
- Chassis
Approx. battery voltage
(a) From Battery Positive Terminal
Resistance
B terminal -
AC terminal
Infinity
B terminal -
ST terminal
Infinity
B terminal -
G terminal
Infinity
Resistance
B terminal -
AC terminal
0 Ω
