[3] STEERING CYLINDER
The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the
front axle and connected to the tie-rods.
The tie-rods connected to both knuckle arm guarantees equal steering movement to both front wheels.
The steering cylinder provide force in both directions. Depending upon direction the steering wheel is turned
pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of the
tractor.

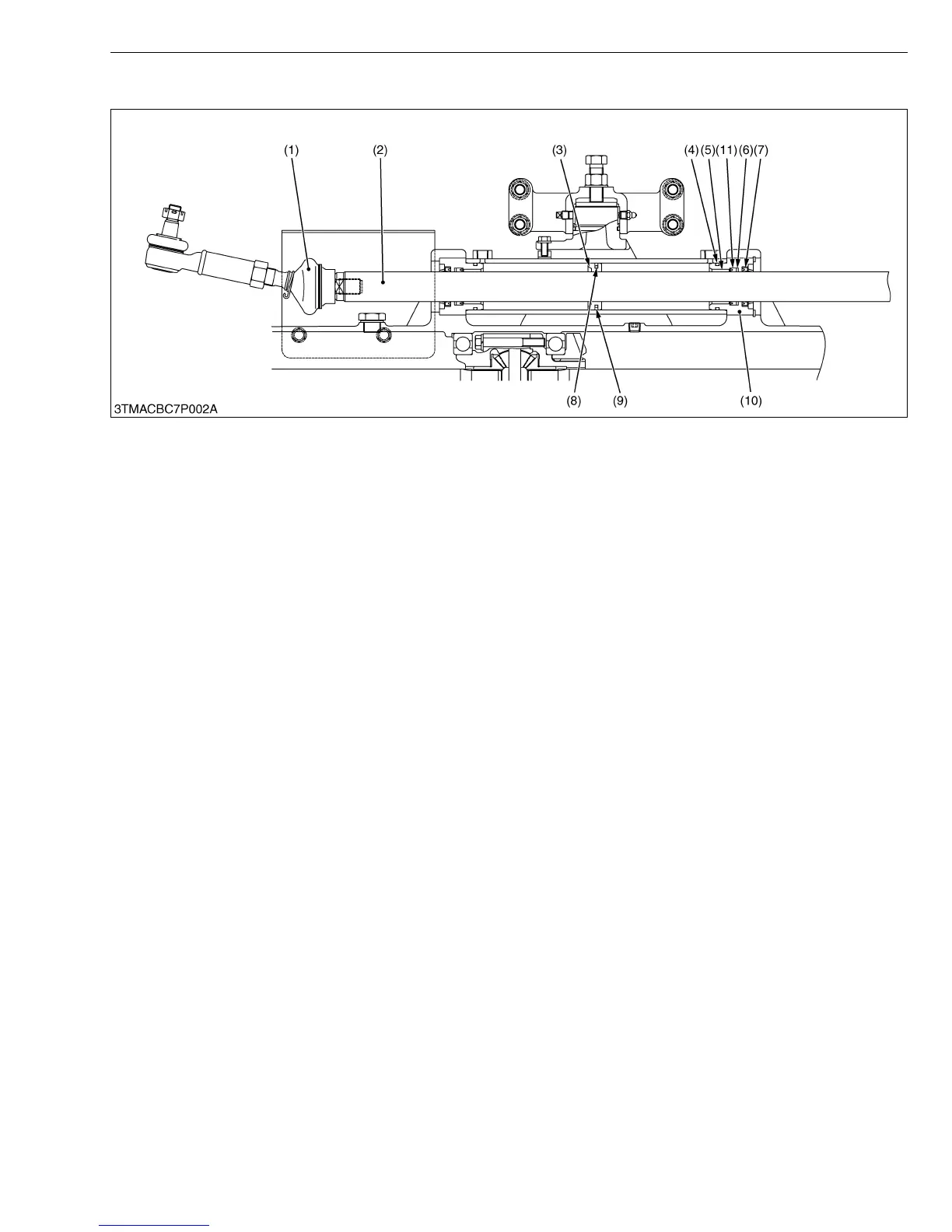

(1) Rubber Boots
(2) Rod
(3) Piston
(4) O-ring
(5) Bushing
(6) Back Up Ring
(7) Scraper Seal
(8) O-ring
(9) Slipper Seal
(10) Guide
(11) U-ring
