Kubota MX5100 - Separating MID Case and Transmission Case

3-S24
MX5100, WSM
TRANSMISSION

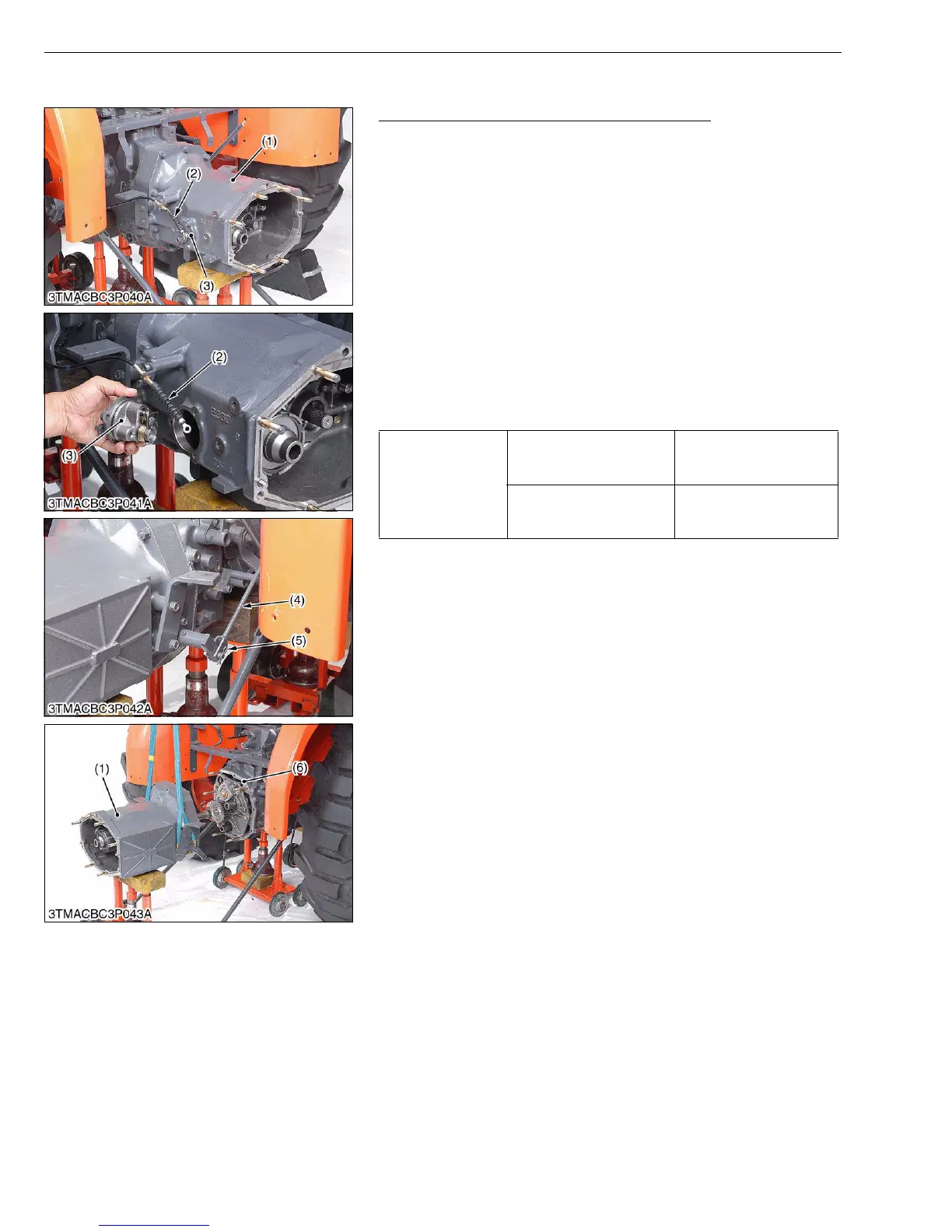

(4) Separating Mid Case and Transmission Case
Separating Mid Case and Transmission Case
1. Set the disassembling stands under the mid case (1) and the
transmission case (6).
2. Remove the snap pin and disconnect the PTO clutch lever wire
(2) from the PTO clutch valve (3).
3. Remove the PTO clutch valve (3) from the hydraulic pipe
connected to the PTO clutch pack.
4. Remove the snap pin (5).
5. Disconnect the front wheel drive control rod (4) from the front
wheel drive lever.
6. Remove the mid case and transmission case mounting bolts and
nuts.
7. Hoist the mid case with a nylon sling.
8. Separate the mid case (1) from the transmission case (6) safety.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the mid case and the transmission case.
W10234020
Tightening torque
Mid case and transmission
case mounting bolt (M12)
102.9 to 117.6 N·m
10.5 to 12.0 kgf·m
75.9 to 86.8 lbf·ft
Mid case and transmission
case mounting nut (M12)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) Mid Case
(2) PTO Clutch Lever Wire
(3) PTO Clutch Valve
(4) Front Wheel Drive Control Rod
(5) Snap Pin
(6) Transmission Case
