Kubota MX5100 - Disassembling MID Case

3-S25
MX5100, WSM
TRANSMISSION

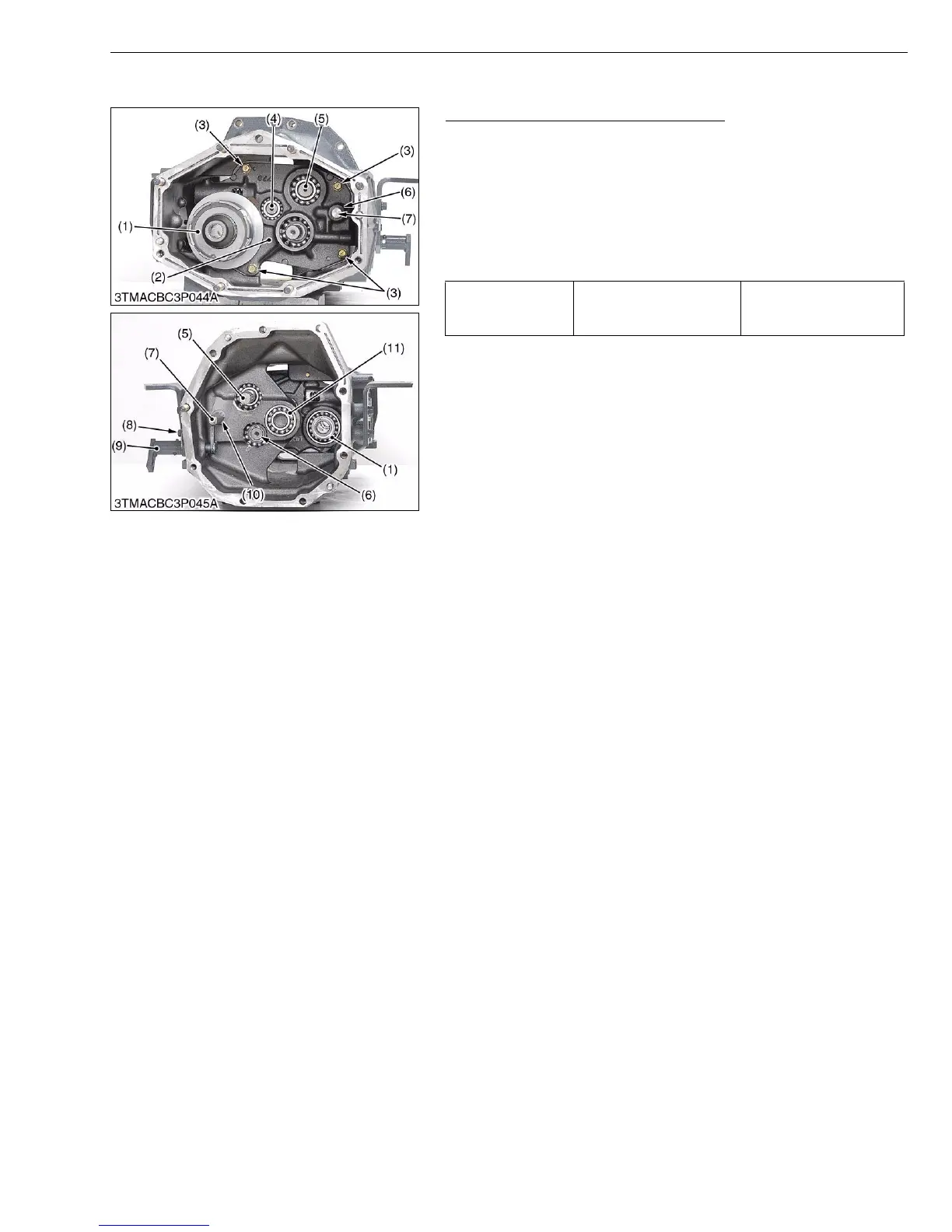

(5) Disassembling Mid Case
Removing PTO Clutch Bearing Holder
1. Set the wooden block under the mid case not to tilt the mid case.
2. Remove the PTO clutch bearing holder mounting bolts (3).
3. Remove the front wheel drive shift lever mounting bolt (M8) (8).
4. Slide the front wheel drive shift lever to the outside.
5. Remove the external cir-clip (10) from the shift rod (7).
6. Remove the PTO clutch bearing holder (2) with the shaft
assemblies (1), (4), (5), (6).
(When reassembling)
W10243240
Tightening torque
PTO clutch bearing holder
mounting bolts (M10)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) PTO Clutch Assembly
(2) PTO Clutch Bearing Holder
(3) Bolt
(4) 17T Reverse Shaft
(5) Shuttle Gear Shaft
(6) Shuttle Shaft
(7) Shuttle Shift Rod
(8) Bolt (M8)
(9) Front Wheel Drive Shift Lever
(10) External Cir-clip
(11) Ball Bearing (for PTO Drive Shaft)
