Kubota MX5100 - Servicing

3-S43
MX5100, WSM
TRANSMISSION
[2] SERVICING

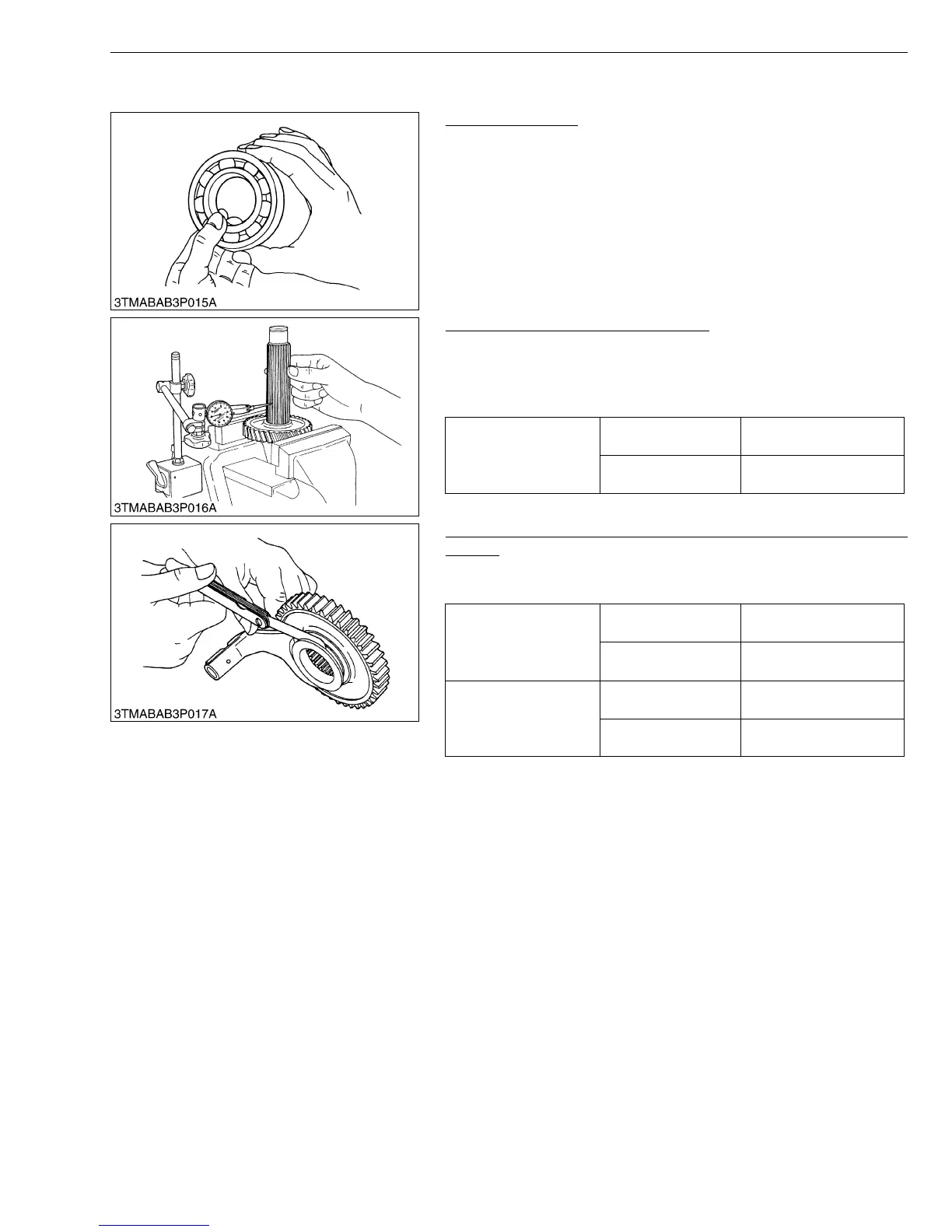

Checking Bearing
1. Hold the inner race, and push and pull the outer race in all
directions to check for wear and roughness.
2. Apply transmission fluid to the bearing, and hold the inner race.
Then turn the outer race to check rotation.
3. If there is any defect, replace it.
W10257810
Clearance between Gear and Spline
1. Secure the gear with a vise.
2. Set a dial indicator (lever type) with its finger on the spline.
3. Move the shaft to measure the clearance.
4. If the clearance exceeds the allowable limit, replace them.
W10258480
Clearance between Shift Fork and Shift Gear Groove or Shifter
Groove
1. Place for in the groove to check clearance with feeler gauge.
2. If the clearance exceeds allowable limit, replace.
W10269970
Clearance between gear
and spline
Factory spec.
0.030 to 0.078 mm
0.0012 to 0.0031 in.
Allowable limit
0.2 mm
0.0079 in.
Clearance between shift
fork and shift gear
groove
Factory spec.
0.15 to 0.40 mm
0.006 to 0.016 in.
Allowable limit
0.6 mm
0.024 in.
Clearance between shift
fork and shifter groove
Factory spec.
0.15 to 0.40 mm
0.006 to 0.016 in.
Allowable limit
0.6 mm
0.024 in.
