8-M6
MX5100, WSM
HYDRAULIC SYSTEM
6. LINKAGE MECHANISM
[1] POSITION CONTROL
W1016975
Position control is a mechanism to raise or lower the implement attached to the tractor in proportion to the
movement of the position control lever (1). The implement can be positioned at any height by moving the position
control lever (1). Fine position adjustment is also easy.

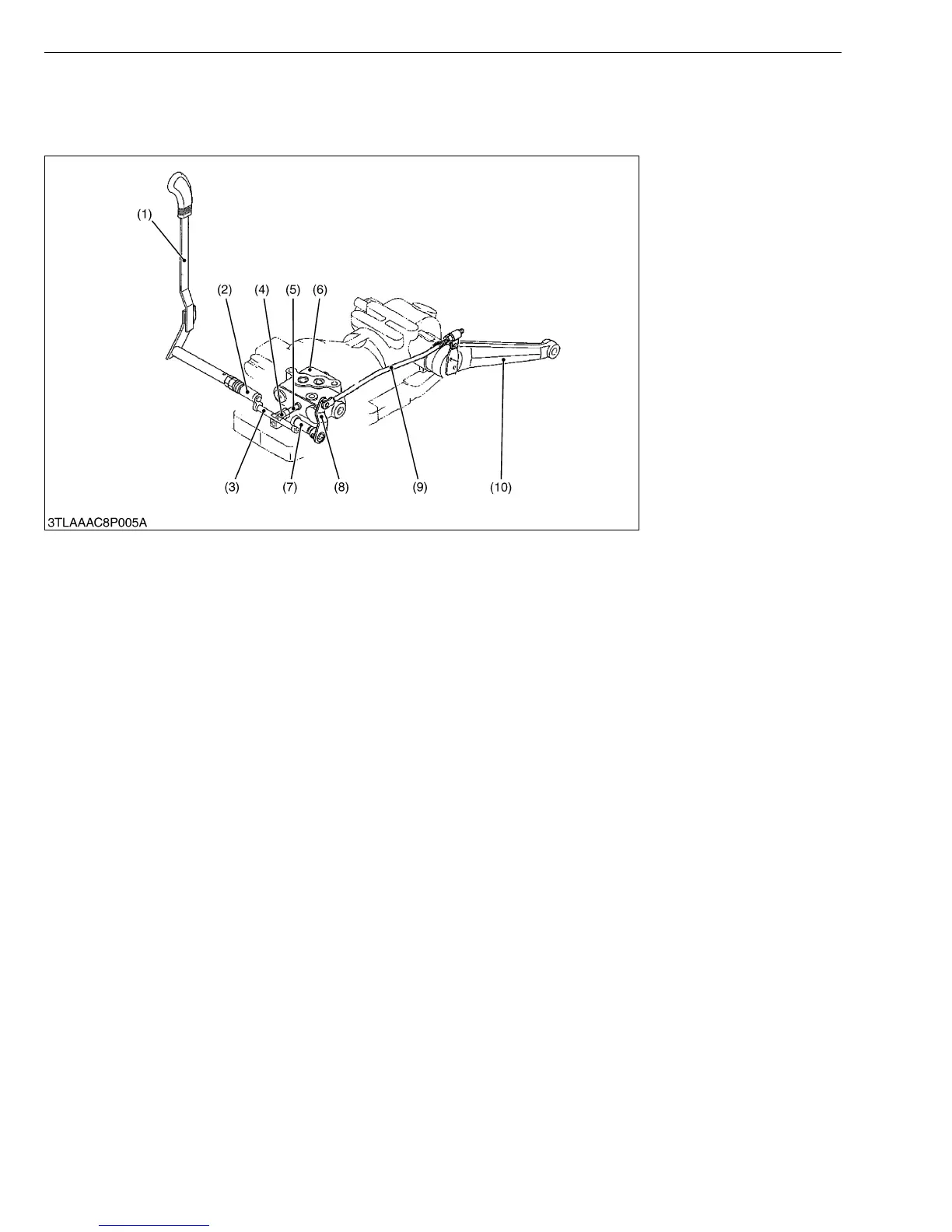

The main components are shown in the figure above. The main components are connected in mechanical.
(1) Position Control Lever
(2) Control Arm
(3) Spool Drive Lever
(4) Spool Joint 1
(5) Spool Head
(6) Position Control Valve Body
(7) Feedback Lever Shaft
(8) Feedback Lever
(9) Feedback Rod
(10) Lift Arm
