8-M5
MX5100, WSM
HYDRAULIC SYSTEM
5. POSITION CONTROL VALVE
(Code No. YR908-00100)
W1017201

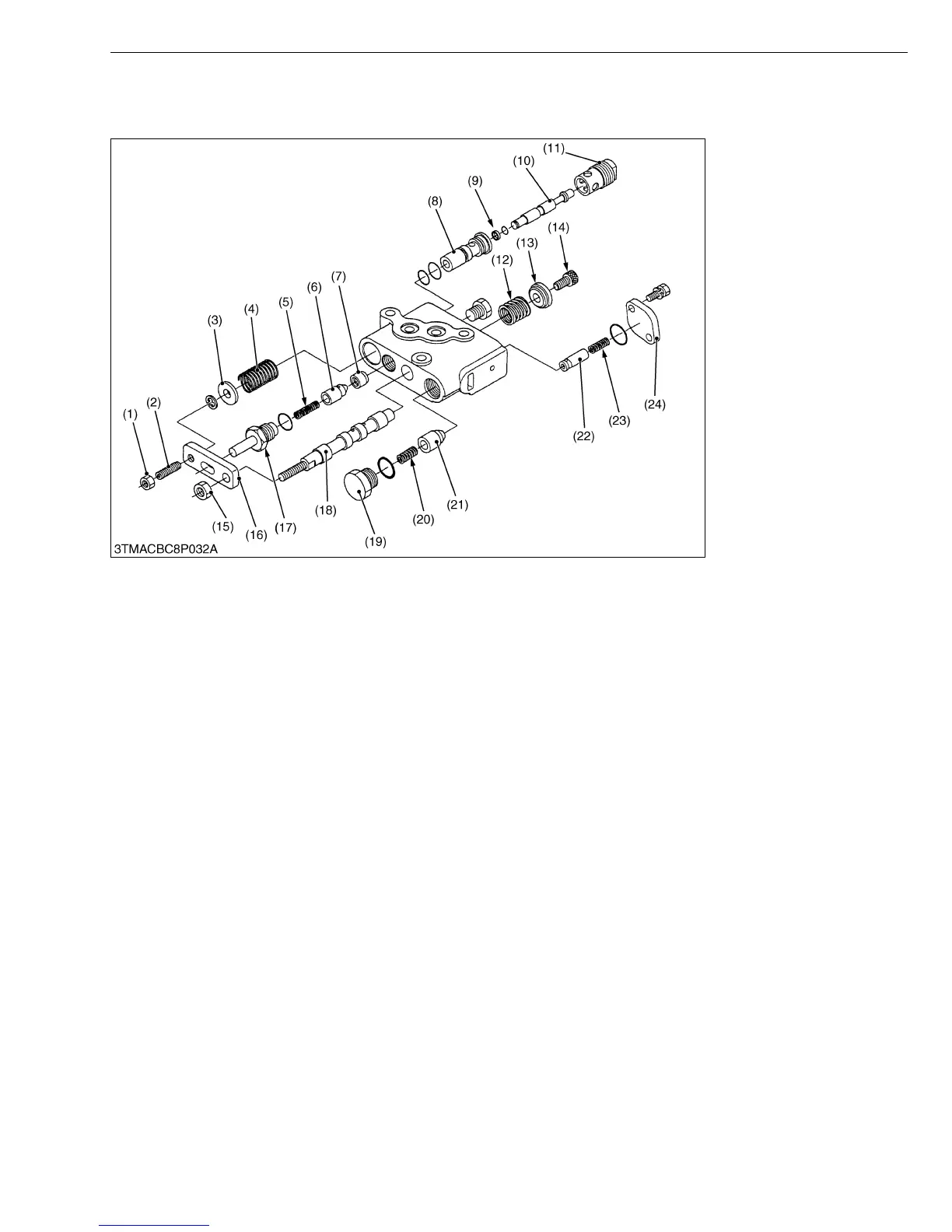

The components of the position control valve (Code No. YR908-00100) are shown in the figure above.
(1) Nut 1
(2) Set Screw
(3) Washer
(4) Spring
(5) Spring
(6) Poppet 1
(7) Valve Seat
(8) Sleeve
(9) Backup Ring
(10) Poppet 2
(11) Plug
(12) Spring
(13) Spring Holder
(14) Screw
(15) Nut 2
(16) Plate 1
(17) Fulcrum Pin
(18) Spool
(19) Unload Plug
(20) Spring
(21) Unload Poppet
(22) Poppet 3
(23) Spring
(24) Plate 2
