8-S25
MX5100, WSM
HYDRAULIC SYSTEM

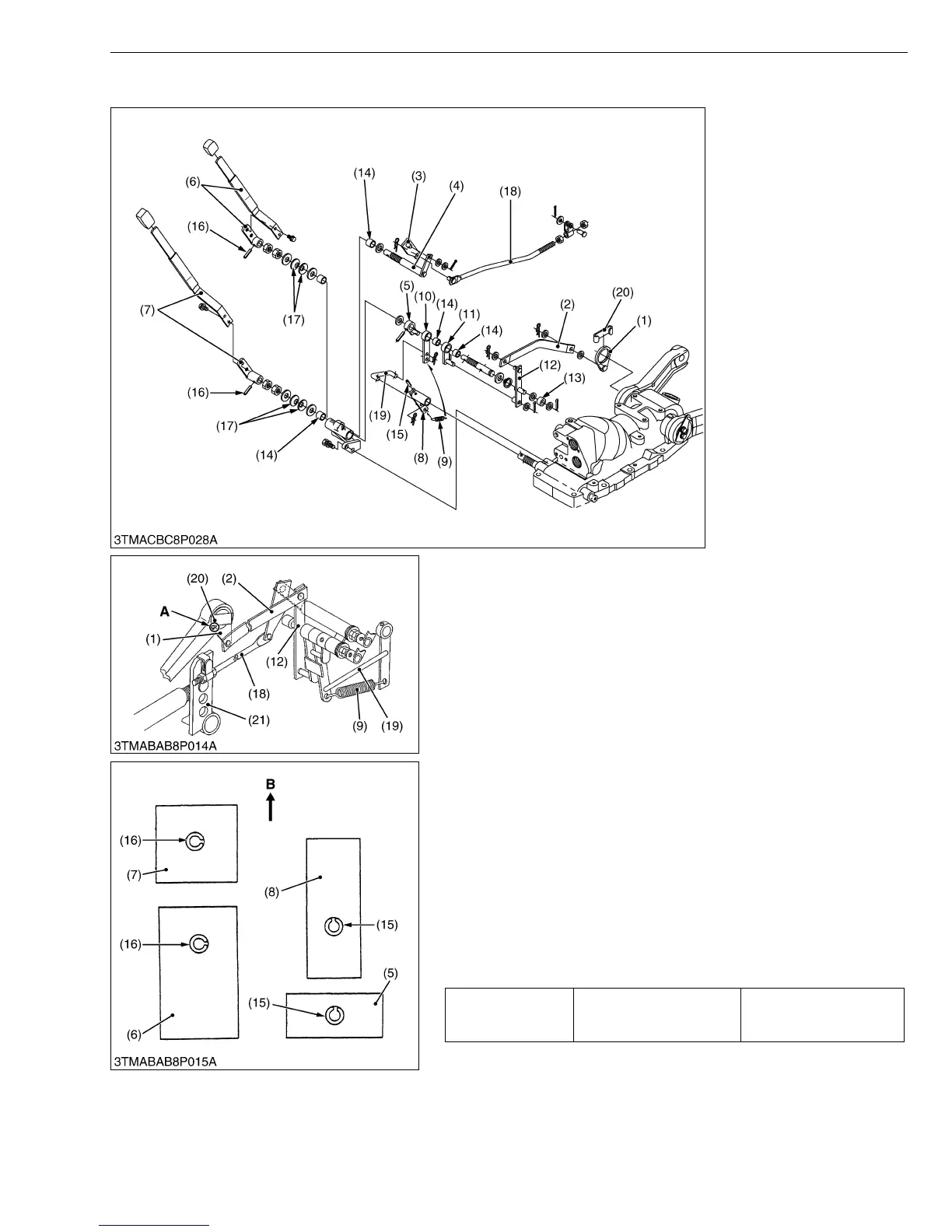

(6) Position Control and Draft Control Linkage (If equipped)
W1037832
1. Disconnect the draft control rod (18) from the top link bracket
(21).
2. Remove the position control lever (6) and draft control lever (7).
3. Disconnect the draft control feedback rod (2) from the draft
control link 2 (12).
4. Remove the control rod (19) and return spring (9).
5. Remove the position and draft control linkage assembly
mounting screws, and then take out the position and draft control
linkage assembly.
6. Remove the draft control feedback rod stay stopper (20) and draft
control feedback rod stay (1).
(When reassembling)
• Assemble so that the punch mark of the feedback rod stay (1) is
set to the punch mark of the hydraulic arm shaft.
• Securely fit the rod stay stopper (20) into the groove of the
hydraulic arm shaft.
• After reassembling, be sure to adjust the position control
feedback rod and draft control rod (if equipped). (See page 8-
S12, 13.).
• Apply grease to the bushings (14), roller (13), draft control link 1
(11) and disc springs (17).
• Tap in the spring pins (15), (16) so that their split portion as
shown in the figure left.
W1022485
(1) Feedback Rod Stay
(2) Feedback Rod (Position
Control)
(3) Draft Cam
(4) Draft Control Lever Shaft
(5) Position Control Link
(6) Position Control Lever
(7) Draft Control Lever
(8) Arm 2
(9) Return Spring
(10) Arm 1
(11) Draft Control Link 1
(12) Draft Control Link 2
(13) Collar
(14) Bushings
(15) Spring Pins
(16) Spring Pins
(17) Disc Springs
(18) Draft Control Rod
(19) Control Rod
(20) Stopper
(21) Top Link Bracket
A :Punched Marks
B :Hydraulic Cylinder Block
Side
Tightening torque
Control linkage assembly
mounting bolt (M8)
23.6 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 lbf·ft
To Next Page
