Kubota MX5100 - Fuel Level Sensor

9-S23
MX5100, WSM
ELECTRICAL SYSTEM
(12) Fuel Level Sensor
Fuel Level Sensor
1. Remove the fuel level sensor from the fuel tank.
2. Measure the resistance across the sensor terminal and its body.
3. If resistance does not meet reference value, the sensor is faulty.
W1121151
Resistance
(Sensor terminal
- its body)
Reference
value
Float at upper-most
position
1 to 5 Ω
Float at lower -
most position
103 to 117 Ω

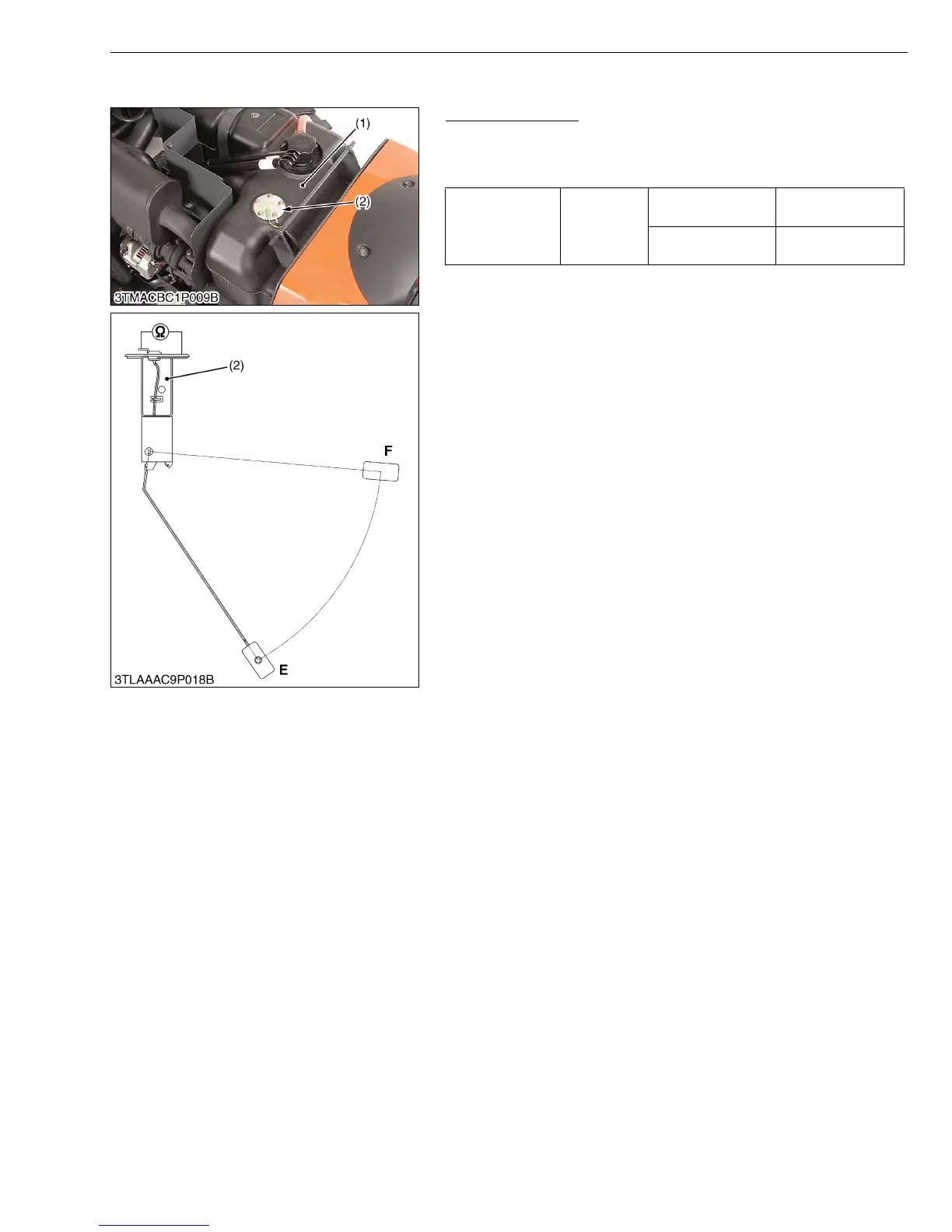

(1) Fuel Tank
(2) Fuel Level Sensor
F : Fuel “Full” Level
E : Fuel “Empty” Level
