3-S31
MX5100, WSM
TRANSMISSION

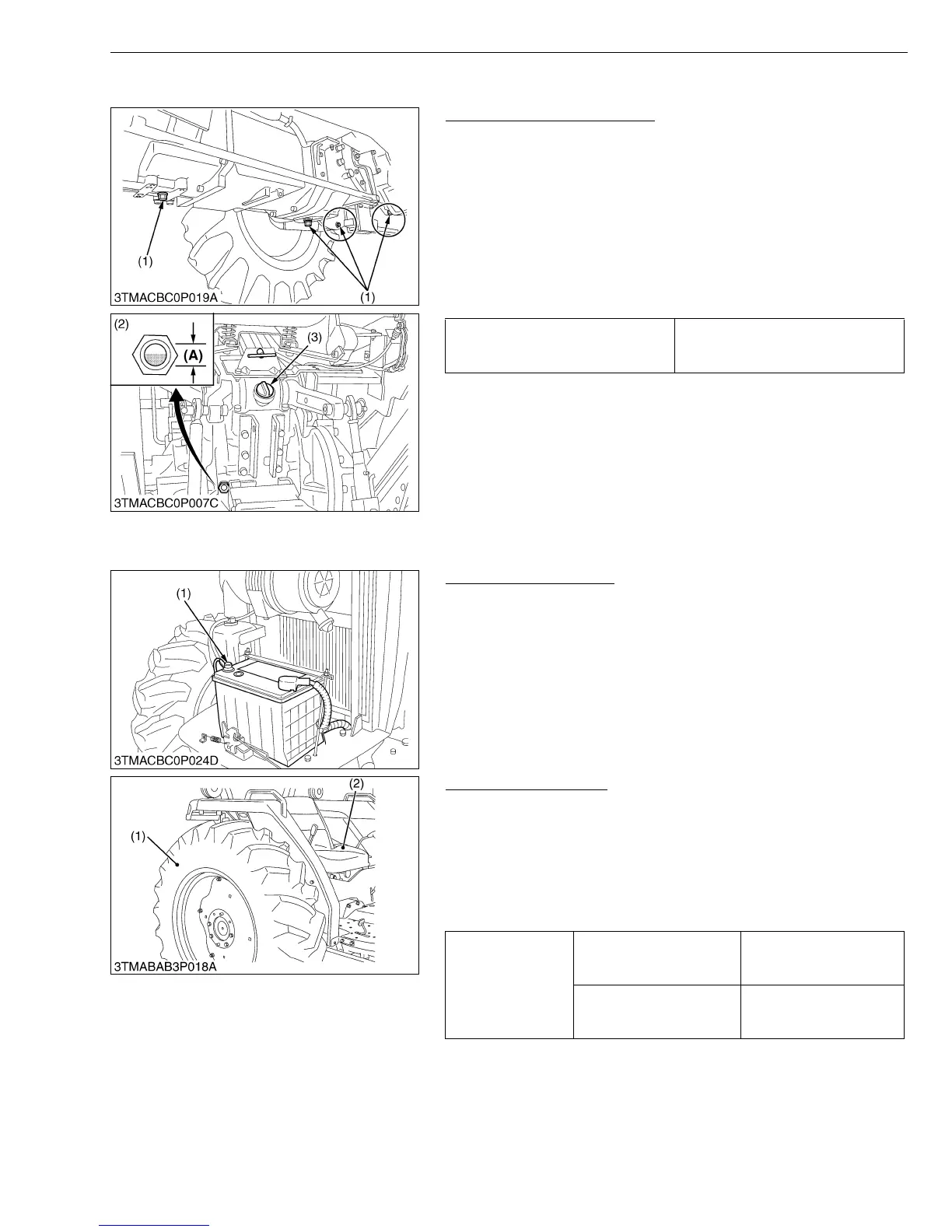

(7) Disassembling Transmission Case
Draining Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from oil inlet port after removing the oil inlet (2) up to the
line of the level gauge (3).
• After running the engine for few minutes, stop it and check the oil
level again, add the transmission fluid to prescribed level if its
level is not correct level.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-8.)
• Do not mix different brands of fluid together.
W1031462
Battery Negative Cable
1. Disconnect the battery negative cable (1).
W1031665
Rear Wheels and Seat
1. Place the disassembling stand under the clutch housing and
transmission case.
2. Loosen and remove the rear wheel mounting screws and nuts.
3. Remove the rear wheels (1).
4. Follow the same procedure as above for the other side.
5. Remove the seat (2).
(When reassembling)
W10158660
Transmission fluid capacity
44 L
11.6 U.S.gals
9.7 lmp.gals
(1) Drain Plugs
(2) Gauge
(3) Oil Inlet
(A) Oil level is acceptable within this
range.
(1) Battery Negative Cable
Tightening torque
Rear wheel mounting
screw and nut
197 to 226 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
Rear wheel mounting stud
bolt
98.1 to 112.7 N·m
10.0 to 11.5 kgf·m
72.3 to 83.1 lbf·ft
(1) Rear Wheel (2) Seat
To Next Page
