4-S3
MX5100, WSM
REAR AXLE

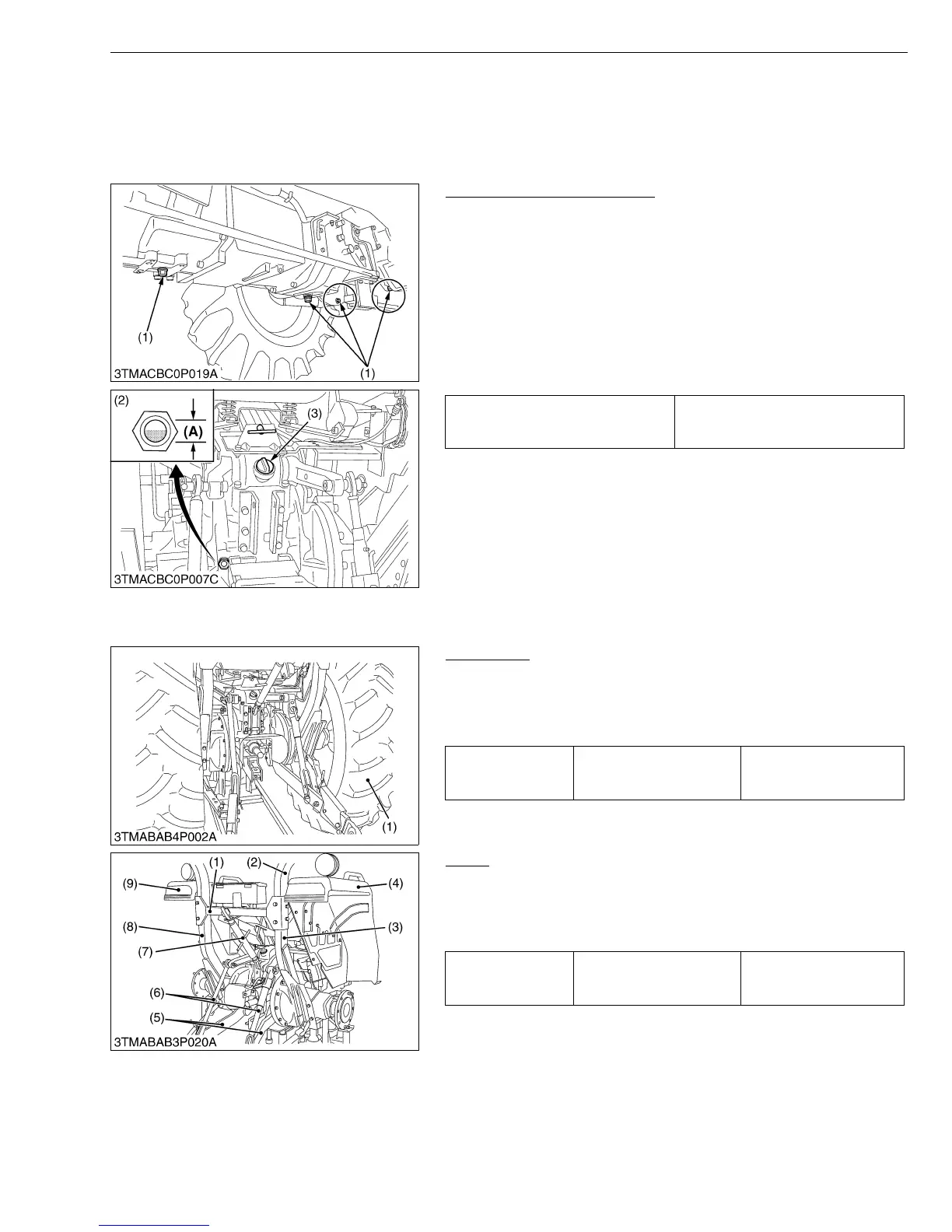

3. CHECKING, DISASSEMBLING AND SERVICING
[1] DISASSEMBLING AND ASSEMBLING
(1) Separating Rear Axle Case from Brake Case
Draining Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from oil inlet port after removing the oil inlet (2) up to the
line of the level gauge (3).
• After running the engine for few minutes, stop it and check the oil
level again, add the transmission fluid to prescribed level if its
level is not correct level.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-8.)
• Do not mix different brands of fluid together.
W1012439
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel mounting screws and nuts.
3. Remove the rear wheel (1).
(When reassembling)
W10110430
ROPS
1. Remove the top link (7), lower link (5) and lift rod (6).
2. Remove the ROPS center (1) and draw out the ROPS upper (2).
3. Remove the ROPS mounting screw and ROPS lower (3), (8).
(When reassembling)
W10111890
Transmission fluid capacity
44.0 L
11.6 U.S.gals
9.7 lmp.gals
(1) Drain Plugs
(2) Gauge
(3) Oil Inlet
(A) Oil level is acceptable within this
range.
Tightening torque
Rear wheel mounting
screw and nut
197 to 226 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
Tightening torque ROPS mounting screw
166.7 to 196.1 N·m
17 to 20 kgf·m
123 to 144 lbf·ft
(1) ROPS Center
(2) ROPS Upper
(3) ROPS Lower R.H.
(4) Fender R.H.
(5) Lower Link
(6) Lift Rod
(7) Top Link
(8) ROPS Lower L.H.
(9) Fender L.H.
To Next Page
