Rear Axle Case

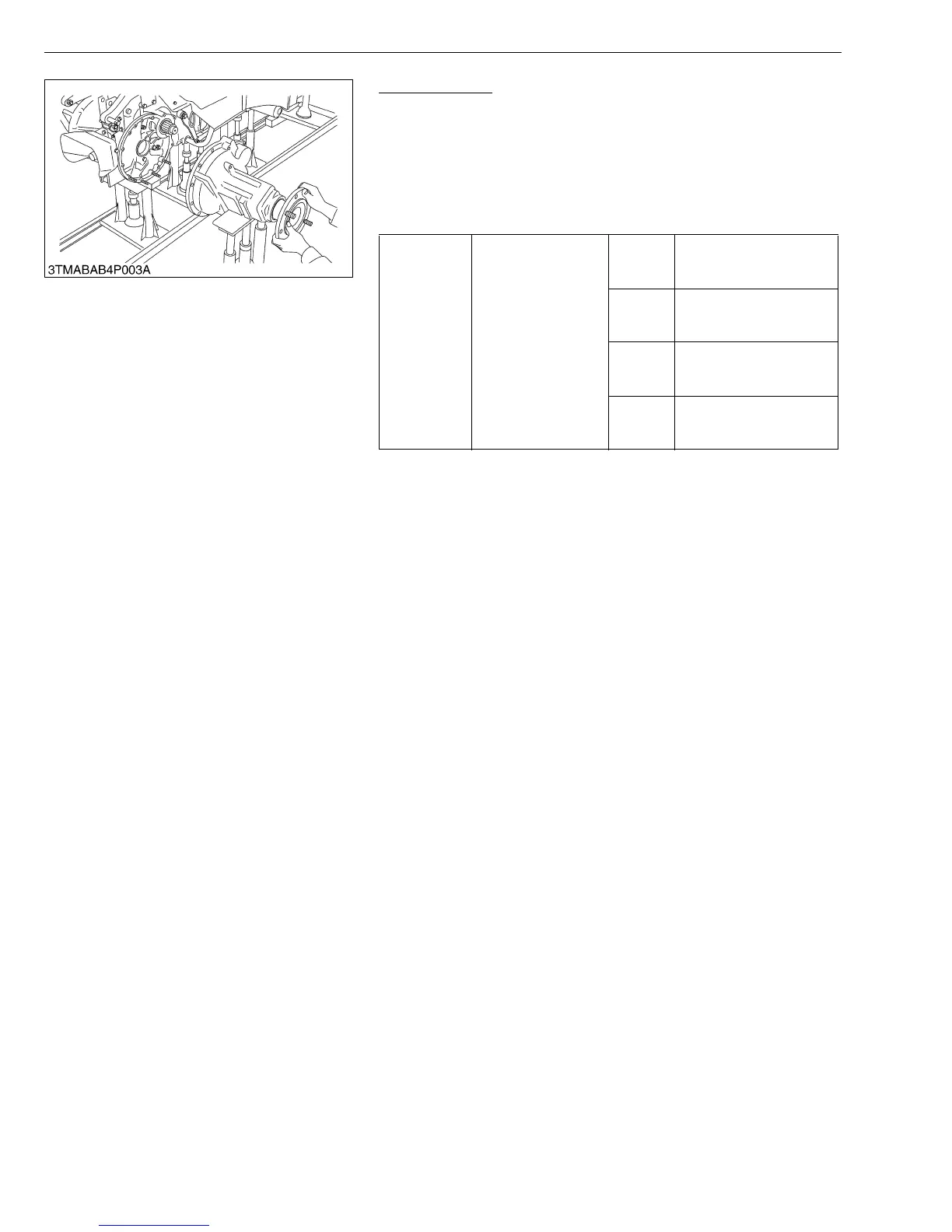

1. Place the disassembling stand under the rear axle case.
2. Remove the rear axle mounting screws and nuts.
3. Separate the rear axle case from brake case.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the rear axle case and brake case, after eliminate the
water, oil and stuck liquid gasket.
W10113490
Tightening
torque
Rear axle case
mounting screw and
nut
M10
screws
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
M10
nuts
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
M12
screws
and nuts
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Stud
bolts
24.5 to 31.4 N·m
2.5 to 3.2 kgf·m
18.1 to 23.1 lbf·ft
