Kubota MX5100 - Front Hydraulic Block

8-M14
MX5100, WSM
HYDRAULIC SYSTEM
7. FRONT HYDRAULIC BLOCK
The front hydraulic block is provided to take power out from the tractor to operate the hydraulic cylinders on the
implement, such as front loader, front blade and so on.

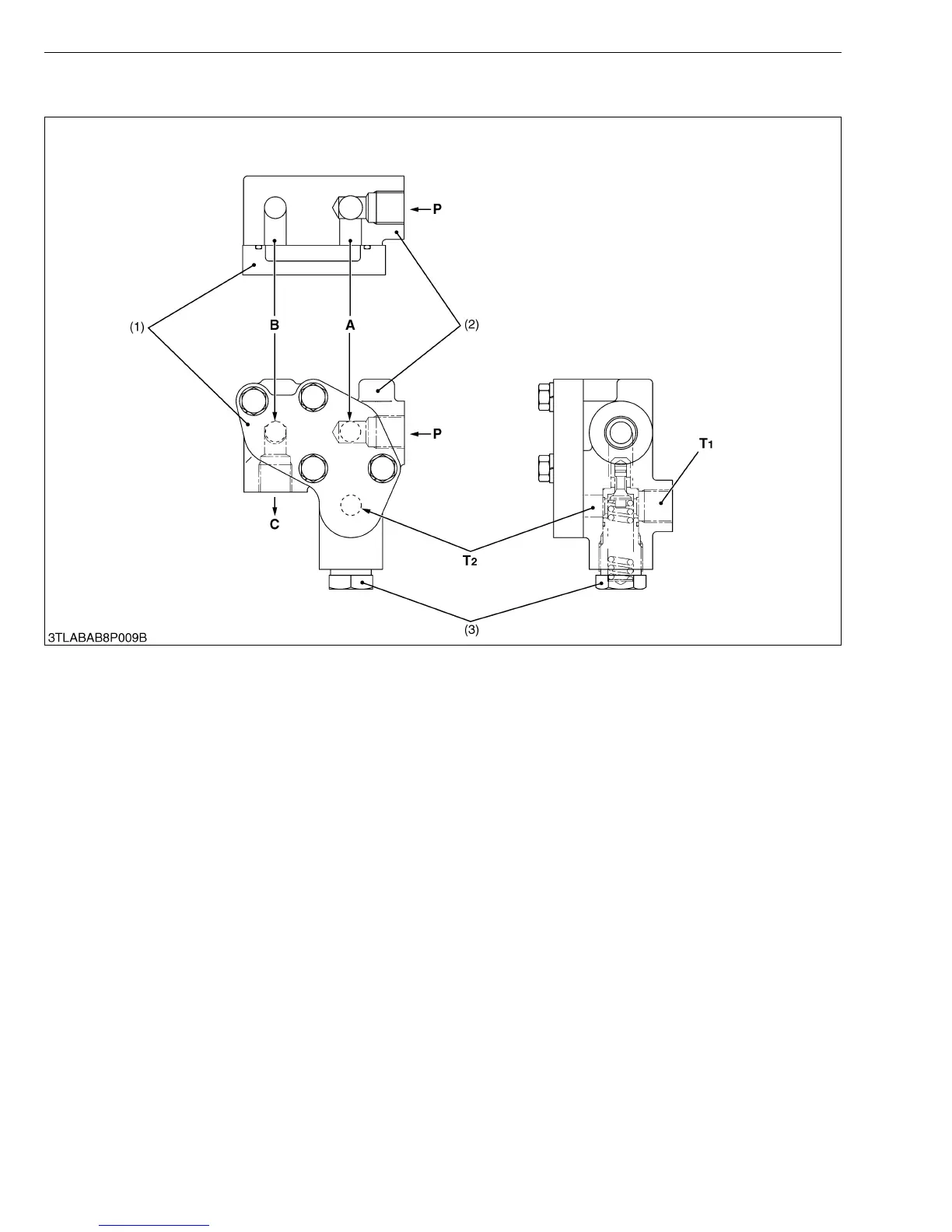

(1) Cap
(2) Front Hydraulic Block
(3) Relief Valve
A : To Implement Control Valve
B : From Implement Control
Valve
C : To Position Control Valve
P : From Hydraulic Pump
T
1 :To Transmission Case
T
2 :From Implement Control
Valve
