8-S16
MX5100, WSM
HYDRAULIC SYSTEM
(2) Hydraulic Cylinder
Seat, Wiring Harness and Fenders

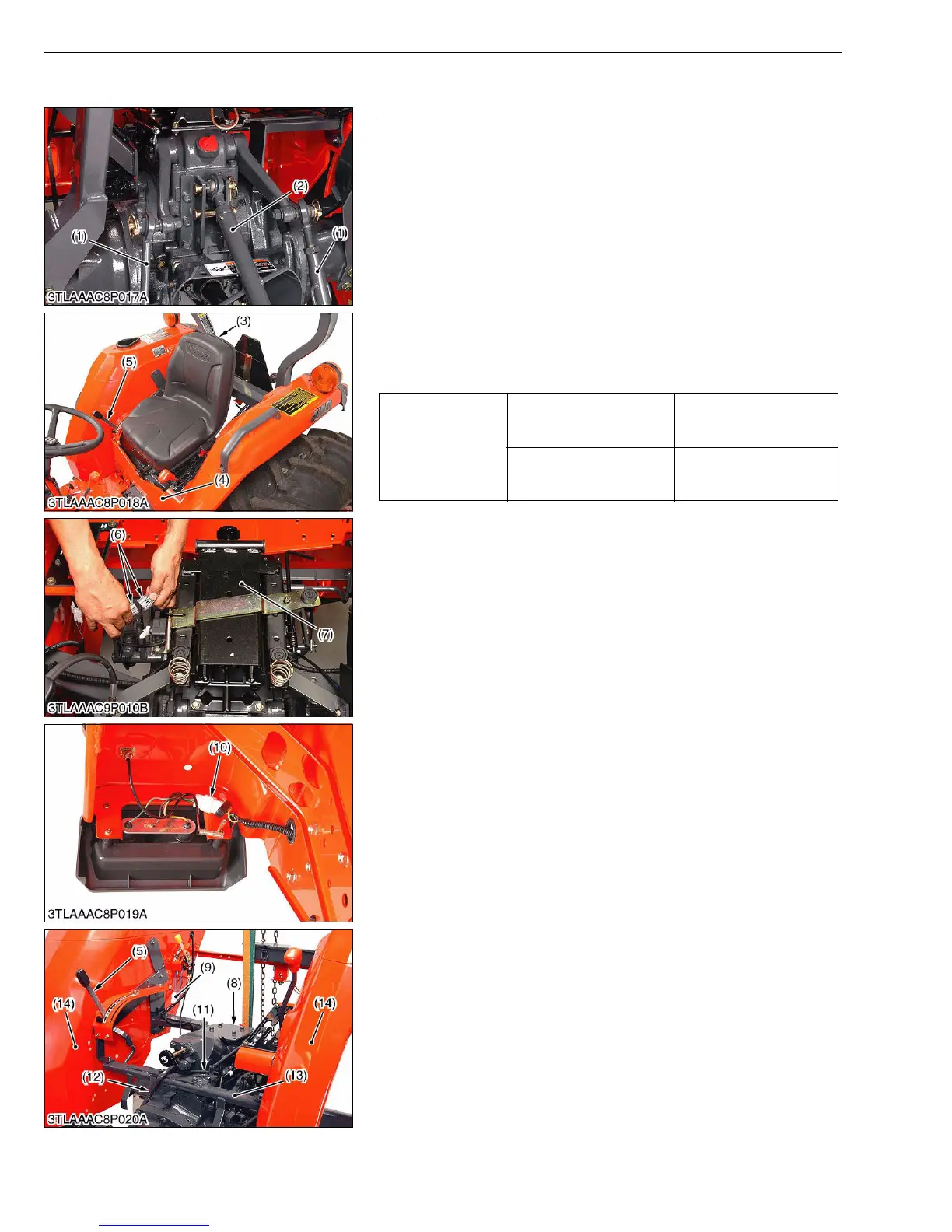

1. Remove lift-rods (1), top link (2) and rear wheels.
2. Remove seat (3).
3. Remove step cover (4).
4. Remove upper part of position control lever (5).
5. Disconnect OPC switch connector (6) and then remove the seat
stay (7) and seat support (8).
6. Disconnect PTO switch connector (9), rear combination lamp RH
connector (10) and then clear wiring harness (11) from the
hydraulic cylinder.
7. Disconnect 3-points delivery pipe 1 (12), fender stay (13) and
fenders (14).
(When reassembling)
• Install the copper washers to the 3-points delivery pipe 1 (12)
firmly.
W1021098
Tightening torque
3-points delivery pipe 1
mounting screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
3-points delivery pipe joint
bolt
49.0 to 69.0 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Lift Rod
(2) Top Link
(3) Seat
(4) Step Cover
(5) Position Control Lever
(6) OPC Switch Connector
(7) Seat Stay
(8) Seat Support
(9) PTO Switch Connector
(10) Rear Combination Lamp RH
Connector
(11) Wiring Harness
(12) 3-Points Delivery Pipe 1
(13) Fender Stay
(14) Fender
To Next Page
