ELECTRICAL SYSTEM
(3) Seat Switch

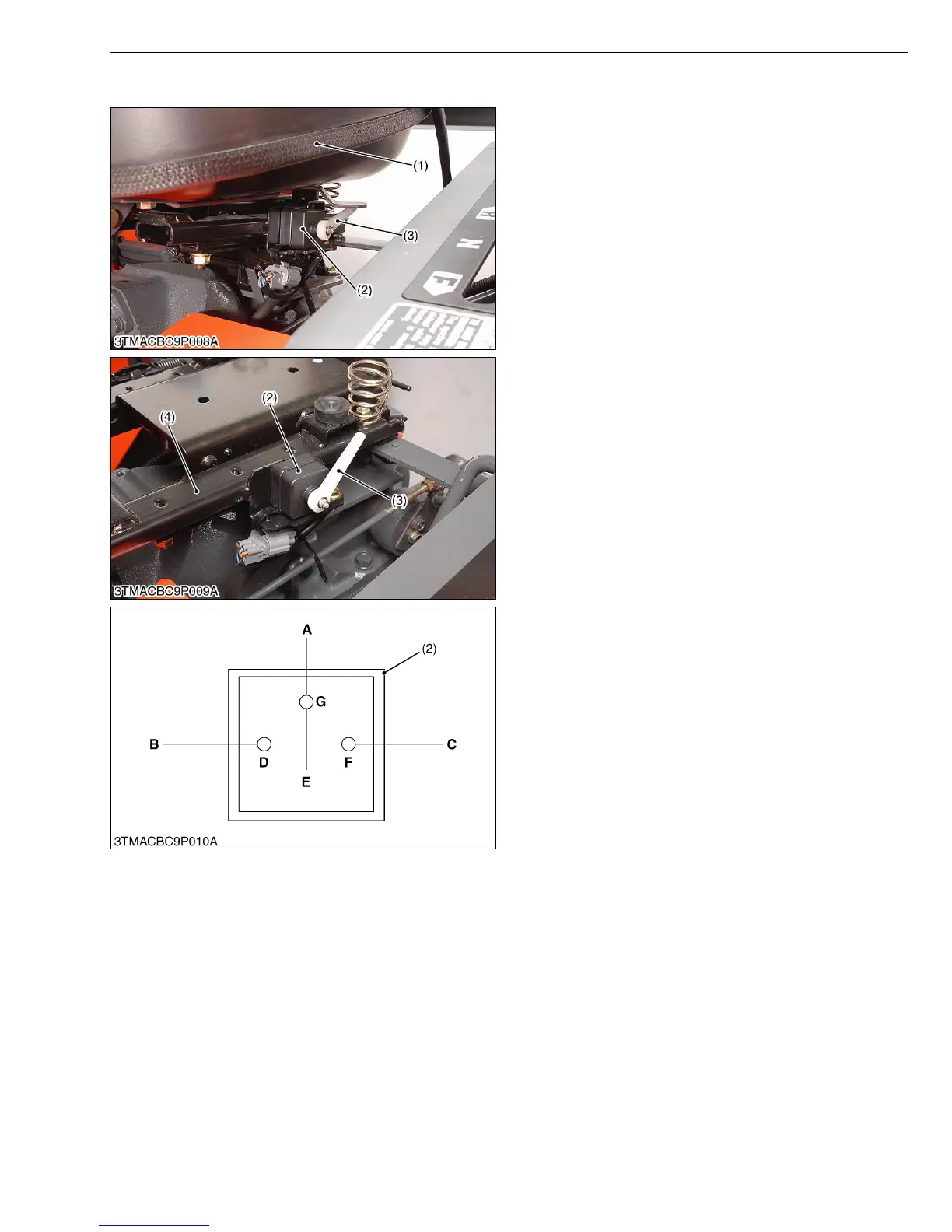

The seat switch (2) is mounted on the seat rail (4)
under the operator’s seat (1).
It serves as a safety switch of OPC system.
It detects the position of the operator’s seat.
When no body sits on the operator’s seat (1), the
battery current does not flow from the key switch “AC”
terminal, through the seat switch “AC” terminal (G), to the
OPC timer.
When operator sits on the operator’s seat (1), the seat
switch lever (3) is set to “Seated” position (D).
The battery current flows from the key switch “AC”
terminal, through the seat switch “AC” terminal (G), to the
OPC timer.
W1017995
(1) Seat
(2) Seat Switch
(3) Seat Switch Lever
(4) Seal Rail
A : Connected to Starter “AC”
Terminal
B : Connected to OPC Timer
C : Connected to Shuttle Lever
Neutral Switch
D : Operator Sits on the Seat,
“Seated” Position
E : “Vacant” Position
F : Seat is Turned-over,
“Turned-over” position
G : Seat Switch “AC” terminal
