G-61
MX5100, WSM
G GENERAL
(2) Rear Wheels
Rear tread can be adjusted in 5 steps depending on the model.
To change the tread
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (ring and left) to the desired position, and tighten the bolts.
CAUTION
• When working on slops or working with trailer, set the wheel tread as wide as practical for the job for
maximum stability.

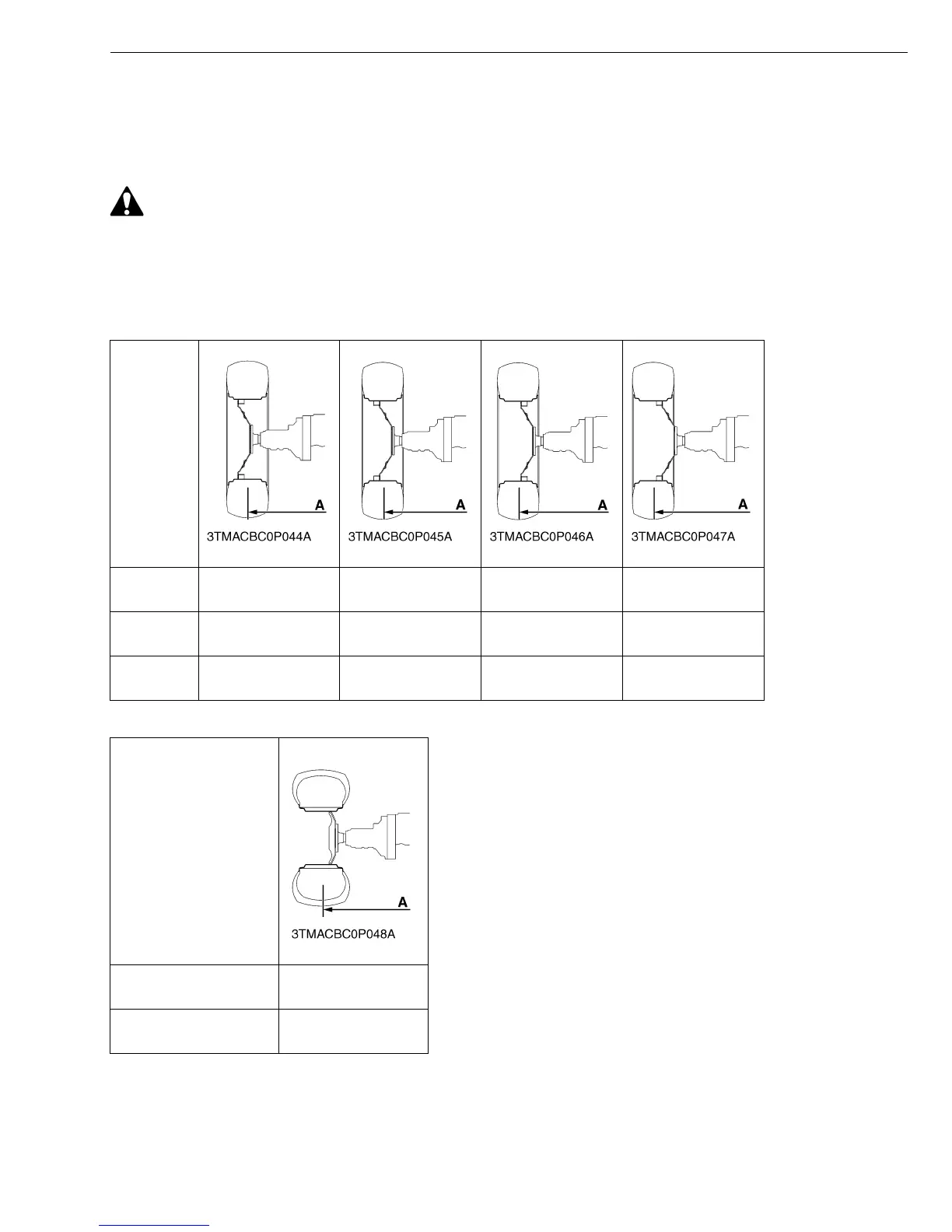

• Always attach tires as shown in the drawings below.
• If not attached as illustrated, transmission parts may be damaged.
• Do not use tires large than specified.
W10529090
W10531370
Models
14.9-26
Farm
––
1375 mm
(54.2 in.)
1490 mm
(58.6 in.)
13.6-28
Farm
1275 mm
(50.2 in.)
1385 mm
(54.4 in.)
1480 mm
(58.2 in.)
1585 mm
(62.4 in.)
17.5 L-24
Industrial
1310 mm
(51.6 in.)
1420 mm
(55.9 in.)
1450 mm
(57.1 in.)
1555 mm
(61.2 in.)
Models
44 × 18-20 Turf
1470 mm
(57.9 in.)
610R470
Industrial
1572 mm
(61.89 in.)
A : Tread
