Kubota MX5100 - Safety Switch; PTO Neutral Switch; Shuttle Lever Neutral Switch

9-M11
MX5100, WSM
ELECTRICAL SYSTEM
[2] SAFETY SWITCH

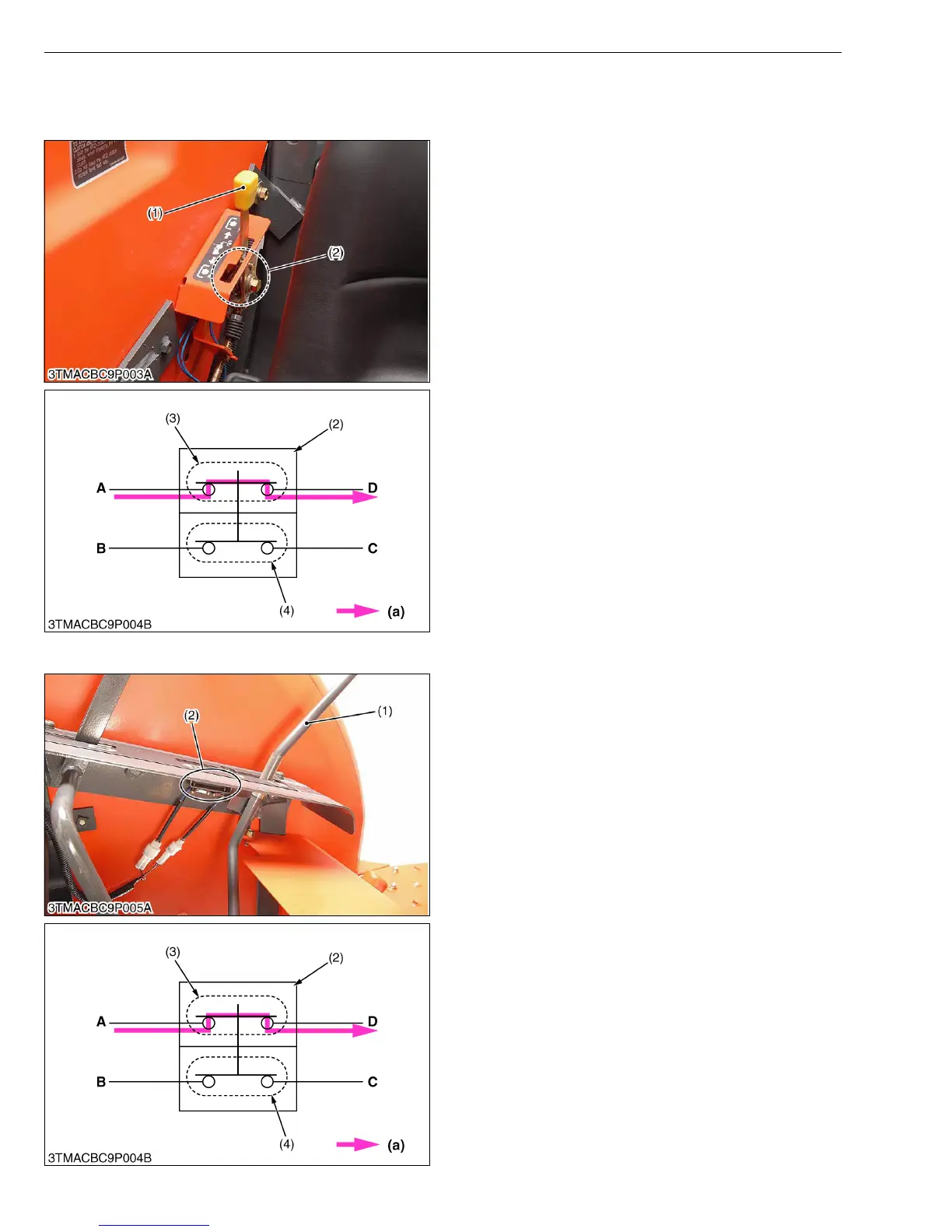

(1) PTO Neutral Switch
The PTO neutral switch is mounted on the PTO shift
lever stay.
It serves as a safety switch of engine starting and
OPC system. It consists of 2 electric switches (3) (4).
The electric switch 1 (4) is connected to the engine
starting circuit (B-C).
The electric switch 2 (3) is connected to OPC circuit
(A-D).
W1017680
(2) Shuttle Lever Neutral Switch
The shuttle lever neutral switch is mounted on the
synchro shuttle shift lever.
It serves as a safety switch of engine starting and
OPC system. It consists of 2 electric switches.
The electric switch 1 (4) is connected to the engine
starting circuit (B-C).
And the electric switch 2 (3) is connected to OPC
circuit (A-D).
W1017845
(1) PTO Shift Lever
(2) PTO Neutral Switch
(3) Electric Switch 2 (for OPC)
(4) Electric Switch 1 (for Engine
Starting)
A-D :OPC Circuit
B-C :Engine Starting Circuit
A : Connected to Key Switch
B : Connected to Starter Relay
C : Connected to Shuttle Lever
Neutral Switch and Body
Earth
D : Connected to OPC Timer
(a) Current
(1) Synchro-Shuttle Shift Lever
(2) Shuttle Lever Neutral Switch
(3) Electric Switch 2 (for OPC)
(4) Electric Switch 1 (for Engine
Starting)
A : Connected to Key Switch
“AC” Terminal
B : Connected to Starter Relay
C : Connected to Tractor Body
D : Connected to OPC Timer
(a) Current
