3-M6
MX5100, WSM
TRANSMISSION
[2] PTO CLUTCH
(1) Shift Linkage

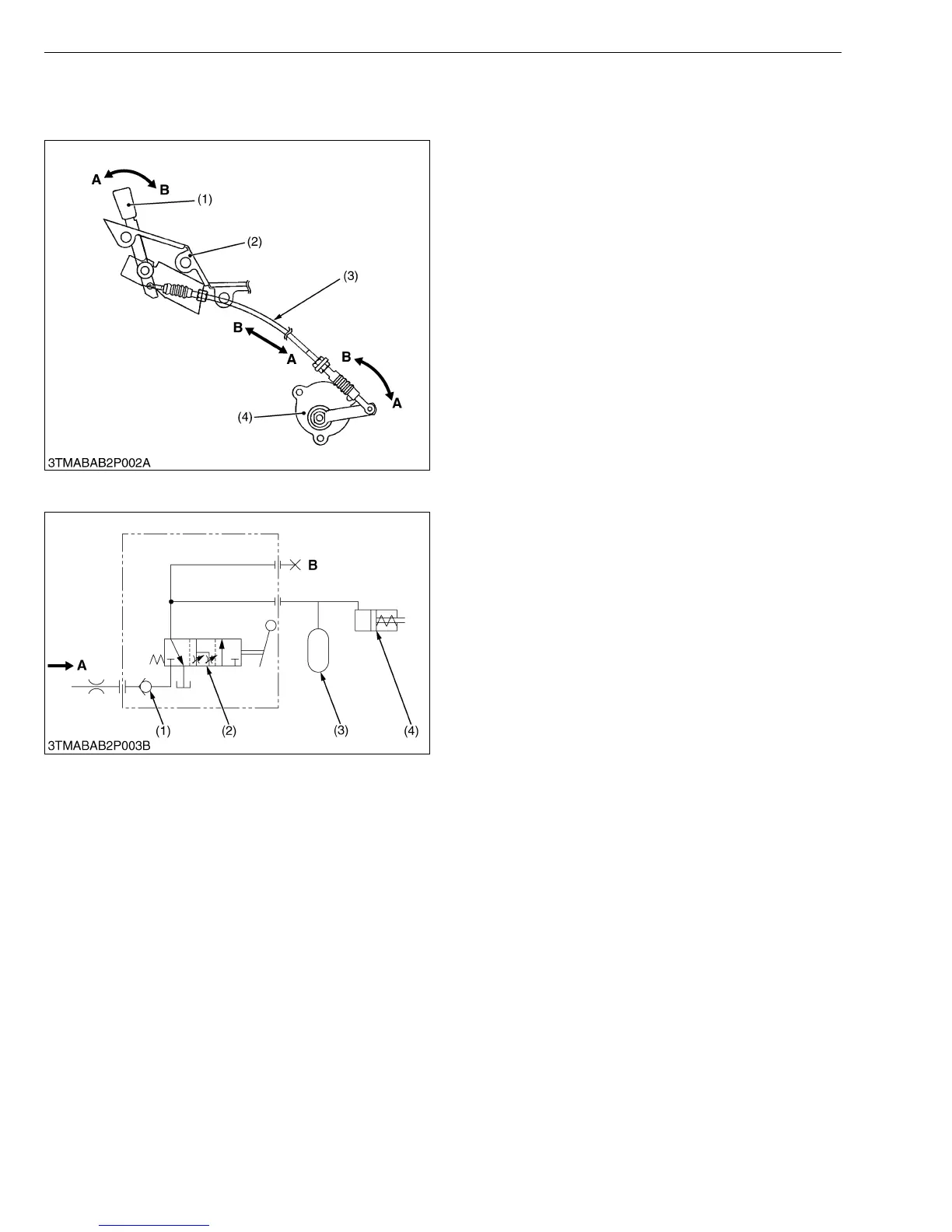

The PTO clutch control lever (1) and the PTO clutch
valve (4) are connected by the shift cable (3) as shown in
the left figure.
When the shift lever is moved to the B side, the PTO
clutch valve (4) is set at “ENGAGED” position. Then the
oil flows to the PTO clutch pack through the PTO clutch
valve (4), and the PTO clutch pack is engaged and the
PTO shaft rotates. When the shift lever is moved to the
A side, the PTO clutch valve (4) is set at the
“DISENGAGED” position.
W1013899
(2) Oil Flow
The pressured oil adjusted by the regulator valve
flows into the PTO clutch valve (2). When the PTO lever
is at the “DISENGAGED” position, the oil does not flow
through the PTO clutch valve (2) to the PTO clutch pack
(4).
When the PTO lever is at the “ENGAGED” position,
the oil flows through the PTO clutch valve (2) to the
accumulator (3) and the PTO clutch pack (4) to engage it.
W1013451
(1) PTO Clutch Control Lever
(2) Lever Guide
(3) Shift Cable
(4) PTO Clutch Valve
A :“DISENGAGED (OFF)”
Position
B :“ENGAGED (ON)” Position
(1) Check Valve
(2) PTO Clutch Valve
(3) Accumulator
(4) PTO Clutch Pack
A :From Regulator Valve
B :PTO Clutch Operating
Pressure Check Port
